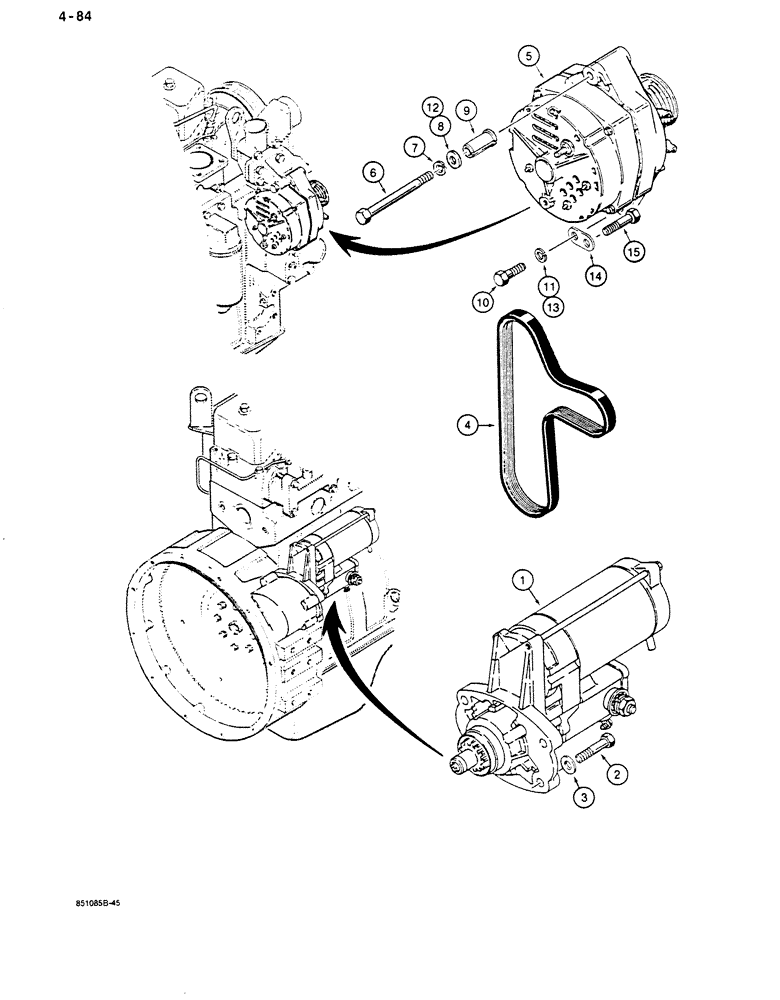

Запчасти Case 680K (4-084) - STARTER AND ALTERNATOR MOUNTING (04) - ELECTRICAL SYSTEMS

1

REF

INSTRUCTION

STARTER ASSEMBLY - engine, for correct assembly and components, see parts list Figures 4-80 and 4-82

1шт.

2

930051R1

BOLT,Hex, M10 x 1.5 x 40mm, Cl 8.8

- hex head, 10 mm - 1.5 x 40 mm, plated

3шт.

3

496-21041

WASHER,13/32" x 13/16" x .089", HDN

3шт.

4

J911559

V-BELT,27.92mm W x 1574.8mm L, 8 Ribs

Drive, Alternator and Fan 3.56 mm W x 1574.80 mm L, 8 Ribs

1шт.

5

REF

INSTRUCTION

ALTERNATOR ASSEMBLY - electrical, for correct assembly and components, see parts list Figures 4-74 through 4-78

1шт.

6

814-10110

BOLT,Hex, M10 x 1.5 x 110mm, Cl 8.8

- hex, 10 mm - 1.5 x 110 mm

1шт.

7

892-1110

LOCK WASHER,M10

WASHER - lock, 10 mm, plated

1шт.

8

895-11010

WASHER,11mm ID x 20mm OD x 2mm Thk

Used with 24 volt electrical circuit M10 x 20 x 2

1шт.

9

L112679

SPACER

- alternator

1шт.

10

814-8030

BOLT,Hex, M8 x 1.25 x 30mm, Cl 8.8, Full Thd

- hex head, 8 mm - 1.25 x 30 mm, plated

1шт.

11

892-1108

LOCK WASHER,M8

plated, used with 24 volt electrical circuit M8

1шт.

12

495-11041

WASHER,0.406" ID x 0.812" OD x 0.065" W

- flat, 3/8", plated, Used with 12 volt electrical circuit

1шт.

13

492-11031

LOCK WASHER,5/16"

WASHER, LOCK, , used with 12 volt electric circuit 5/16"

1шт.

14

J903089

SUPPORT

BRACE - alternator mounting

1шт.

15

614-8020

BOLT,Hex, M8 x 1.25 x 20mm

- hex head, 8 mm - 1.25 x 20 mm, plated

1шт.
