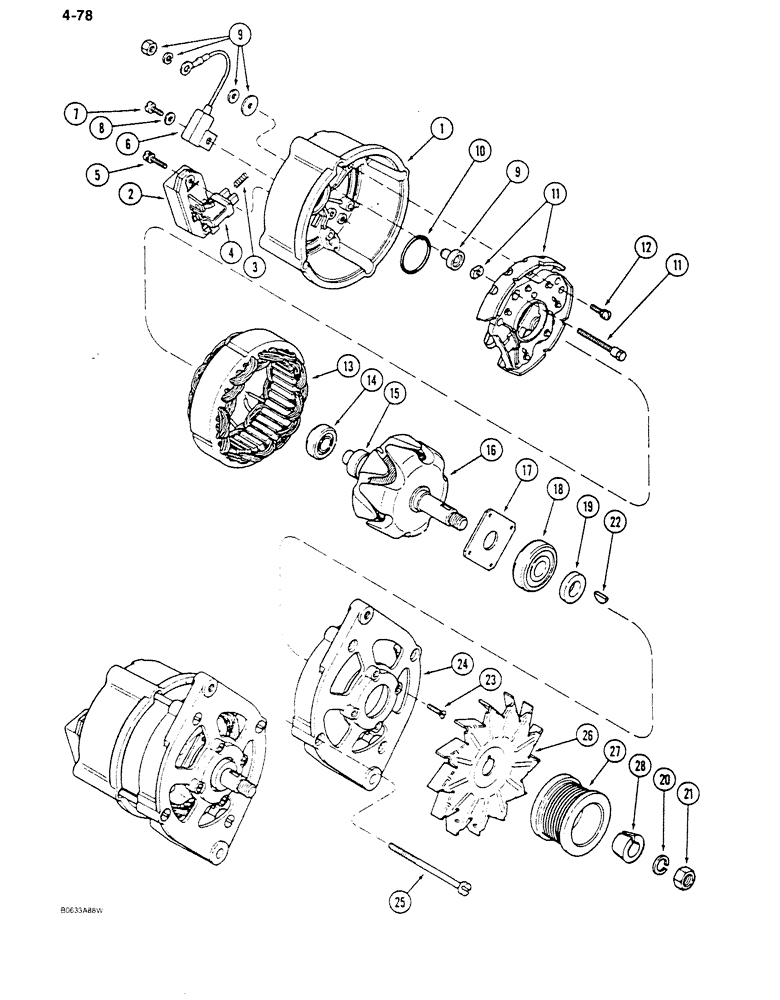

Запчасти Case 680K (4-078) - A186125 ALTERNATOR, USED ON MODELS WITH 12 VOLT ELECTRICAL CIRCUIT (04) - ELECTRICAL SYSTEMS

A186125

ALTERNATOR

ALTERNATOR ASSEMBLY - engine, for 12 volt system, 65 ampere, Includes: Ref. 1 - 28

1шт.

AR186125GV

ALTERNATOR

Value

1шт.

AR186125

REMAN-ALTERNATOR

Reman For New PN A186125

1шт.

AC186125

CORE-ALTERNATOR

Return Number

1шт.

104260A1R

REMAN-ALTERNATOR

Remanufactured 24 VOLT, 40 AMP Alternator

1шт.

104260A1C

CORE-ALTERNATOR

Return Number, 24 VOLT, 40 AMP Alternator

1шт.

AR187873

REMAN-ALTERNATOR

Reman For New PN A186125

1шт.

AC187873

CORE-ALTERNATOR

Return Number

1шт.

1

A186187

HOUSING

HOUSING - collector ring end

1шт.

2

3079037R92

REGULATOR

REGULATOR - voltage, Includes: Ref. 3, 4

1шт.

3

NSS

NOT SOLD SEPARAT

SPRING - compression

2шт.

4

NSS

NOT SOLD SEPARAT

BRUSH ASSEMBLY - alternator

1шт.

5

A186194

SCREW,M4 x 18mm

SCREW, , Regulator retaining Sltd Truss Hd, M4 x 18, w/LW

2шт.

6

A186195

CAPACITOR

CAPACITOR - alternator

1шт.

7

931340R1

SCREW,Slotted Cheese, M5 x 0.8 x 12mm, Cl 4.8

BOLT - capacitor retaining

1шт.

8

A186196

WASHER

WASHER - retaining bolt

1шт.

9

NSS

NOT SOLD SEPARAT

KIT - terminal (Order 3079135R1)

1шт.

10

NSS

NOT SOLD SEPARAT

O-RING - bearing (Order 3079386R1)

1шт.

11

A187507

RECTIFIER

RECTIFIER BRIDGE - alternator

1шт.

12

A186188

SCREW

BOLT ASSEMBLY - rectifier bridge retaining, with washer

3шт.

13

A186192

STATOR

STATOR ASSEMBLY - alternator

1шт.

14

A186186

BALL BEARING,12mm ID x 32mm OD x 10mm W

BEARING - ball

1шт.

15

A186185

RING

RING - collector

1шт.

16

A186184

ROTOR

ROTOR ASSEMBLY - alternator

1шт.

17

NSS

NOT SOLD SEPARAT

PLATE - bearing retaining (Order 3078379R1)

1шт.

18

D639702

BEARING

BEARING - ball, drive end

1шт.

20

NSS

NOT SOLD SEPARAT

KIT - rotor retaining (Order 3078897R1)

1шт.

21

NSS

NOT SOLD SEPARAT

KIT - rotor retaining (Order 3078897R1)

1шт.

22

NSS

NOT SOLD SEPARAT

KEY - rotor (Order 3078897R1 kit)

1шт.

24

A187994

HOUSING

HOUSING - drive end

1шт.

25

A186193

BOLT,Pan, Cross Recess Phillips, M5 x 110mm

BOLT - alternator retaining

4шт.

26

22142541

FAN - alternator

1шт.

27

J908560

PULLEY

PULLEY - drive

1шт.

28

J908563

RETAINER

RETAINER - pulley

1шт.
