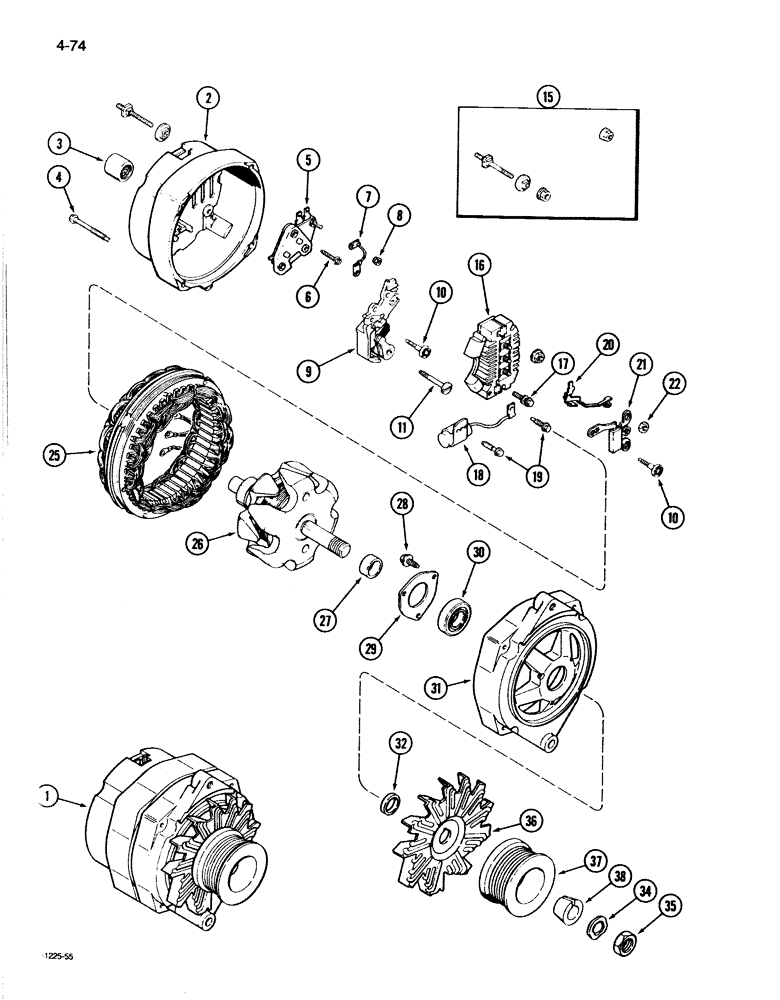

Запчасти Case 680K (4-074) - L112091 ALTERNATOR, USED ON LOADER BACKHOE WITH 24 VOLT SYSTEM (04) - ELECTRICAL SYSTEMS

1

L112091

ALTERNATOR

ALTERNATOR ASSEMBLY - engine, for 24 volt system, Delco-Remy No. 1105537, (Order A167152 alternator and Ref. 36, 37 and 38), Includes: A167152 and Ref. 2 - 38

1шт.

1

104260A1R

REMAN-ALTERNATOR

Alternator Assembly - remanufactured (North America only)

1шт.

1

104260A1C

CORE-ALTERNATOR

Return Number, 24 VOLT, 40 AMP Alternator

1шт.

1

A47485

CORE-ALTERNATOR

Return Number - use this part number to return alternator core for credit

1шт.

A167152

ALTERNATOR

ALTERNATOR ASSEMBLY - engine, Delco-Remy No. 1105510, service only, if used, Includes: Ref. 2 - 35

1шт.

2

1975718

FRAME

FRAME ASSEMBLY - slip ring end, Includes: Ref. 3

1шт.

3

1974862

BUSHING

BEARING - frame

1шт.

4

463-11028

SCREW,Hex Hd, #10-24 x 1 3/4"

SCREW - through, hex, No. 10-24 x 1-3/4 inch

4шт.

5

A49732

REGULATOR

REGULATOR - voltage

1шт.

6

A47043

SCREW,#8 - 32 x 21"

SCREW - brush holder grounded

1шт.

7

1876080

CABLE

LEAD -, Serial Range: stud-bridge

1шт.

8

22-1022

NUT

NUT - terminal

1шт.

9

1894559

HOLDER

HOLDER ASSEMBLY - brush, Includes: 33-1153T1

1шт.

33-1153T1

BRUSH

BRUSH - alternator

2шт.

10

A45223

SCREW,Spcl, #8 - 32 x 1 1/8"

SCREW - brush holder, insulated

2шт.

11

1974020

SCREW

SCREW - brush holder, retaining

1шт.

15

A47597

TERMINAL CONNECTOR

TERMINAL KIT - battery

1шт.

16

1984454

BRIDGE

RECTIFIER BRIDGE - alternator

1шт.

17

A45221

SCREW,Hex Wshr Hd, #8 - 32 x 0.99"

SCREW - bridge retaining

1шт.

18

A47734

CAPACITOR

CAPACITOR - alternator

1шт.

19

A45228

SELF-TAP SCREW,Hex Wash Hd, #8-32 x .59", Spc

SCREW - capacitor bracket

2шт.

20

1986132

TERMINAL CONNECTOR

TERMINAL - relay

1шт.

21

1985348

DIODE

DIODE - trio

1шт.

22

704494

HARDWARE

NUT - hex flange, jam, 1/4 inch NF

3шт.

25

A49388

STATOR

STATOR ASSEMBLY - alternator

1шт.

26

A46945

ROTOR

ROTOR ASSEMBLY - alternator

1шт.

27

1975350

COLLAR

COLLAR - rotor shaft, inner

1шт.

28

A46941

SCREW,Hex Washer, #10 - 24 x 0.52"

SCREW - bearing plate retaining

3шт.

29

A52397

LARGE PLATE

PLATE, LARGE PLATE - bearing retainer

1шт.

30

465004R91

BEARING ASSY,0.6693" ID x 1.5748" OD x 0.4724"

BEARING - ball, drive end

1шт.

31

1987104

FUNNEL

FRAME - drive end

1шт.

32

A49733

COLLAR

COLLAR - rotor shaft, outer

1шт.

34

33-1145T1

WASHER

WASHER - lock, pulley nut

1шт.

35

A25546

NUT

NUT - pulley and fan retaining

1шт.

36

S32921

FAN

FAN - alternator ventilating

1шт.

37

J908560

PULLEY

PULLEY - alternator

1шт.

38

J908563

RETAINER

RETAINER - alternator pulley

1шт.
