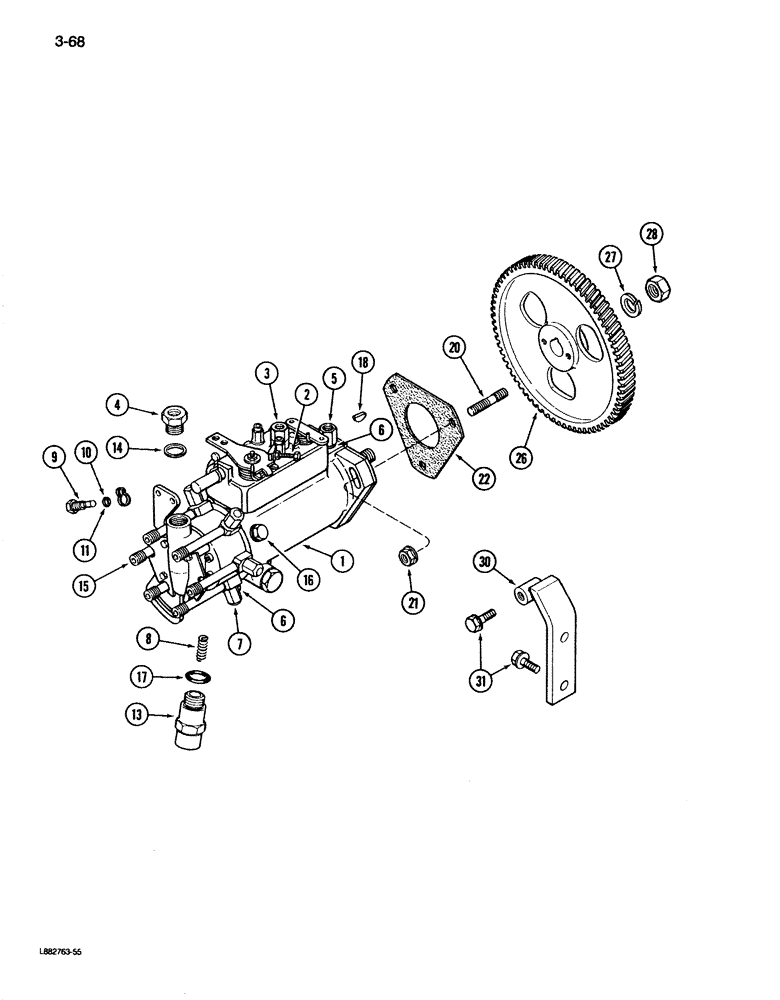

Запчасти Case 680K (3-68) - FUEL INJECTION PUMP AND DRIVE, 6-590 ENGINE (03) - FUEL SYSTEM

1

J908649

PUMP, FUEL INJECTION

PUMP, INJECTION PUMP ASSEMBLY - fuel injection, new, Includes: Ref. 2 - 18

1шт.

1

JR908649

REMAN-INJECTION PUMP

Pump Assembly - fuel injection, remanufactured

1шт.

1

JC908649

CORE-INJECTION PUMP

Return Part Number - injection pump (Use this number to return pump core for credit)

1шт.

2

J904637

SET SCREW

SCREW - adjusting, low idle

1шт.

3

J904640

VENT

ORIFICE - bleed

1шт.

4

J904641

FITTING

FITTING - inlet

1шт.

5

J904643

FITTING

FITTING - return

1шт.

6

J904644

WASHER

WASHER - sealing (Package of 10)

13шт.

7

J904646

BANJO BOLT

BOLT - banjo

1шт.

8

J904777

SPRING

SPRING - plunger

1шт.

9

J904778

BOLT

BOLT - hex, locking device

1шт.

10

J904779

WASHER

WASHER - locking

1шт.

11

J904780

SEAL

SEAL - locking bolt

1шт.

13

J905125

SOLENOID

SOLENOID - fuel, 24 volt

1шт.

13

K957417

SWITCH

SOLENOID - fuel, 12 volt

1шт.

14

K962748

WASHER

WASHER - inlet fitting, copper

1шт.

15

R7779949

PIPE FITTING

FITTING - banjo

1шт.

16

K963867

SCREW

SCREW ASSEMBLY - bleed, pump head

1шт.

17

J904635

O-RING

O-RING - solenoid

1шт.

18

126-112

WOODRUFF KEY,#6, 5/32" x 5/8", HT

WOODRUFF KEY, , Pump gear #6, 5/32" x 5/8", HT

1шт.

20

T2527763

STUD

STUD - pump mounting, M8 x 48 mm

3шт.

21

K2434559

NUT

NUT - hex flange, M8

3шт.

22

J931607

GASKET

GASKET - pump mounting

1шт.

26

J936021

GEAR

GEAR - pump drive

1шт.

27

492-11056

LOCK WASHER,9/16"

WASHER, LOCK, 9/16"

1шт.

28

J903738

NUT

NUT - hex, M14

1шт.

30

J905387

BRACE

BRACE - fuel pump

1шт.

31

845-8020

BOLT,Hvy Hex, M8 x 20mm, Cl 8.8

BOLT - hex, M8 x 1.25 x 1.6 mm

3шт.
