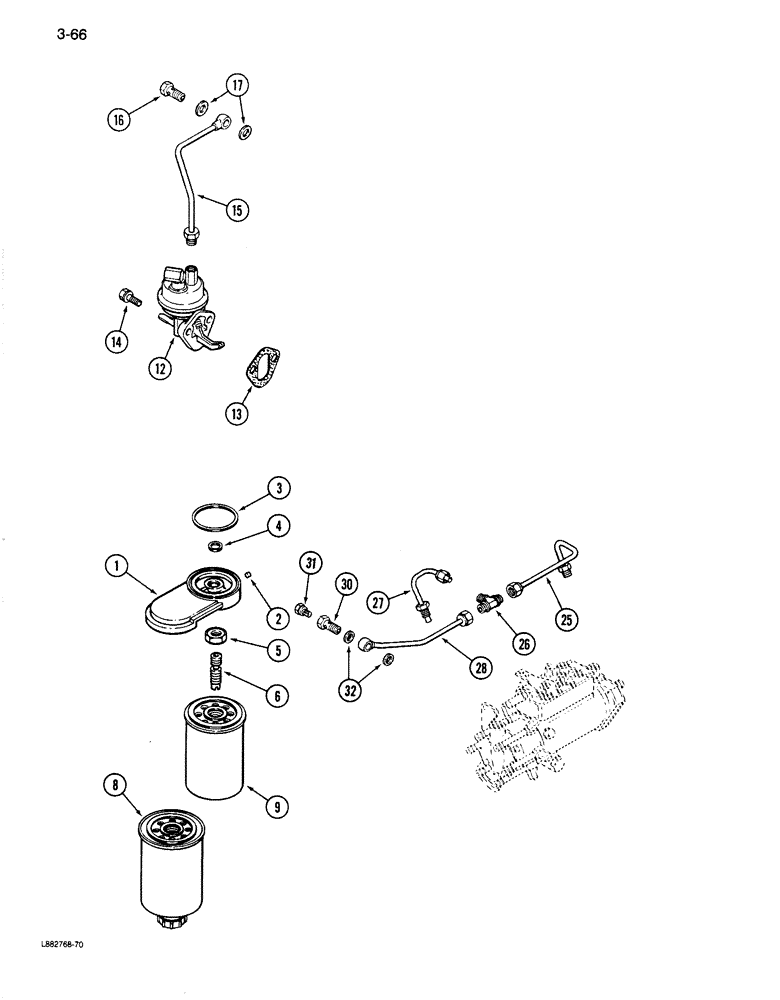

Запчасти Case 680K (3-66) - FUEL FILTER AND LIFT PUMP, 6-590 ENGINE (03) - FUEL SYSTEM

1

NLS

NO LONGER SERVICED

HEAD, FILTER, Assy - Fuel, Includes: Ref. 2

1шт.

2

A77432

PLUG

- expansion, 0.26 mm OD

1шт.

3

Q1245257

GASKET,Square, 1.68mm Thk x 69.57mm ID, -39

O-RING - sealing, 17 mm ID (Replaces J903546)

1шт.

4

R1245258

GASKET,Square, 0.103" Thk x 0.549" ID, -113

O-RING - sealing, 14 mm ID (Replaces J903846)

1шт.

5

M2434561

NUT

- hex, M16 x 2 mm

1шт.

6

J925955

ADAPTER,M16 x 1.5 x M16 x 1.5

- fuel filter

1шт.

A77470

SEPARATOR

FILTER KIT - fuel, Includes: Ref. 8, 9

1шт.

8

J930942

SEPARATOR

FILTER - fuel, Primary

1шт.

9

J903640

FILTER, FUEL

FILTER - fuel, secondary

1шт.

12

J928143

PUMP

ASSEMBLY - lift, fuel

1шт.

13

J931059

GASKET

- mounting, pump (Replaces J904044)

1шт.

14

845-8020

BOLT,Hvy Hex, M8 x 20mm, Cl 8.8

- hex flange, M8 x 1.25 x 20 mm

2шт.

15

K3950121

RETURN PIPE

TUBE ASSEMBLY - fuel supply

1шт.

16

J903035

BANJO BOLT

BOLT - banjo hex, M12 x 1.5 x 24 mm

1шт.

17

J935171

SEALING WASHER

WASHER - sealing, 12 x 18 x 1 mm

2шт.

25

J905363

FUEL TUBE,8 mm OD x 256.8 mm L

TUBE ASSEMBLY - fuel supply, tee to front of injection pump

1шт.

26

J905353

TEE

- union, 9/16-24 NF thread

1шт.

27

J905375

FUEL TUBE,8 mm OD x 137.6 mm L

TUBE ASSEMBLY - fuel supply, tee to rear of injection pump

1шт.

28

J905364

FUEL TUBE

TUBE ASSEMBLY - fuel supply, Serial Range: filter-tee

1шт.

K1030018

JACK SCREW

BOLT - banjo hex, special, Includes: Ref. 30, 31

1шт.

30

NSS

NOT SOLD SEPARAT

BOLT - connector, banjo hex, special (Order J905860)

1шт.

31

NSS

NOT SOLD SEPARAT

SCREW - hex special, vent (Order J905860)

1шт.

32

J935171

SEALING WASHER

WASHER - sealing, 12 x 18 x 1 mm

2шт.
