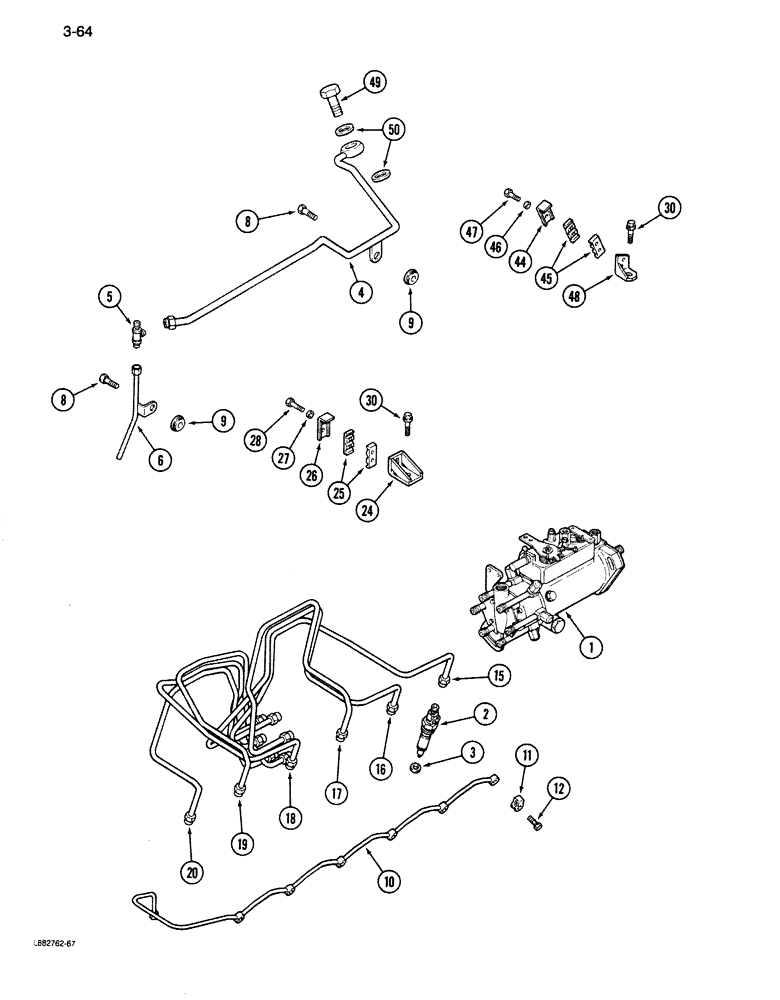

Запчасти Case 680K (3-64) - FUEL INJECTION SYSTEM, 6-590 ENGINE (03) - FUEL SYSTEM
№
Артикул
Название
Примечание
Количество
1
REF
INSTRUCTION
PUMP ASSEMBLY - fuel injection, see Figure 3-68
1шт.
2
REF
INSTRUCTION
INJECTOR ASSEMBLY - fuel, see Figure 3-70
6шт.
3
J900808
SEAL
- injector
6шт.
4
J920891
FUEL TUBE,4.76 mm OD x 909.3 mm L
TUBE ASSEMBLY - fuel drain
1шт.
5
222-121
TEE,3/16", Flex Tubing
3/16", Flex Tubing, Union, 7/16"-24 thd (Remove and discard hex nuts and sleeves at assembly)
1шт.
6
Q3450198
RETURN PIPE
TUBE ASSEMBLY - fuel return
1шт.
8
J924962
FLANGE BOLT
BOLT - hex, M8 x 1.25 x 16 mm
2шт.
9
J928759
SEALING WASHER
ASSEMBLY - cover bolt
2шт.
10
J909696
TUBE
TUBE ASSEMBLY - manifold, fuel drain (Replaces J905691)
1шт.
12
J905307
BANJO BOLT,M6 x 1 x 14.30mm
BOLT, BANJO, , Drain, Special M6 x 1 x 14.3
6шт.
15
J914796
FUEL TUBE
TUBE ASSEMBLY - fuel injector, No. 1 cylinder
1шт.
16
J914798
FUEL TUBE
TUBE ASSEMBLY - fuel injector, No. 2 cylinder
1шт.
17
J914800
FUEL TUBE
TUBE ASSEMBLY - fuel injector, No. 3 cylinder
1шт.
18
J914802
FUEL TUBE
TUBE ASSEMBLY - fuel injector, No. 4 cylinder
1шт.
19
J914804
FUEL TUBE
TUBE ASSEMBLY - fuel injector, No. 5 cylinder
1шт.
20
J914806
FUEL TUBE
TUBE ASSEMBLY - fuel injector, No. 6 cylinder
1шт.
A77494
BRACKET
ASSEMBLY - fuel tube, Includes: Ref. 24 - 28
1шт.
24
NSS
NOT SOLD SEPARAT
BRACKET - fuel tube
1шт.
25
NSS
NOT SOLD SEPARAT
ISOLATOR - fuel tube
2шт.
26
NSS
NOT SOLD SEPARAT
PLATE - clamp
1шт.
27
NSS
NOT SOLD SEPARAT
WASHER - flat, M5
2шт.
28
NSS
NOT SOLD SEPARAT
BOLT - hex
2шт.
30
J904341
BOLT,M6 x 1 x 35mm, Cl 8.8
- flanged hex
2шт.
A77529
BRACKET
ASSEMBLY - fuel tube, Includes: Ref. 44 - 48
1шт.
44
NSS
NOT SOLD SEPARAT
BRACE - fuel
1шт.
45
NSS
NOT SOLD SEPARAT
ISOLATOR - fuel tube
2шт.
46
NSS
NOT SOLD SEPARAT
WASHER - flat, M5
2шт.
47
NSS
NOT SOLD SEPARAT
SCREW - hex, M5 x 20 mm
2шт.
48
NSS
NOT SOLD SEPARAT
BRACE - fuel tube
1шт.
Выбрано товаров: 30
