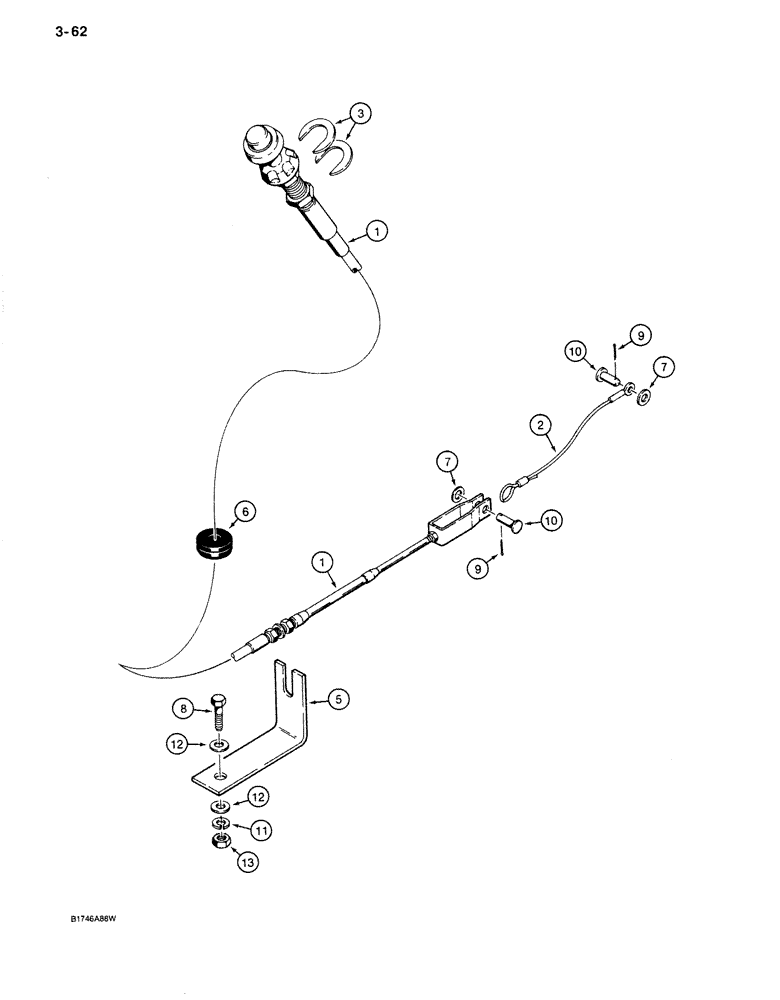

Запчасти Case 680K (3-62) - HAND THROTTLE CONTROL, WITH BUTTON RELEASE (03) - FUEL SYSTEM

D137517

THROTTLE

KIT - conversion, converts models with lever release on Figure 3-60 to hand throttle control with button release, includes instruction sheet and 321-2785 and 321-5288 decals shown on Figure 9-516, Includes: Ref. 1 - 12

1шт.

1

D136064

CABLE

- hand throttle, includes hardware

1шт.

2

D136592

CABLE

- wire, hand throttle

1шт.

3

D137378

WASHER

- slotted, special

2шт.

4

D137380

BRACKET

- clutch cutout, weld-on, in loader control lever console, not shown

1шт.

5

D139284

BRACKET

- cable

1шт.

6

248-2373

GROMMET,1/2" ID x 1 1/4" Groove Dia, Str Cut

Cable 1/2" ID x 1 1/4" Groove Dia, Str Cut

1шт.

7

95-21031

WASHER,1/4"

- flat, , zinc plated 1/4"

2шт.

8

413-520

BOLT,Hex, 5/16" - 18 x 1-1/4", Gr 5

- hex head, 5/16" - 18 NC x 1-1/4", zinc plated

1шт.

9

432-48

COTTER PIN,1/16" x 1/2"

PIN, SPLIT (COTTER), 1/16" x 1/2"

2шт.

10

427-4077

CLEVIS PIN,1/4" x .770"

PIN, CLEVIS, 1/4" x .770"

2шт.

11

492-11031

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

1шт.

12

495-21038

WASHER,5/16"

2шт.

13

425-105

NUT,5/16"-18, G5

- hex, 5/16" - 18 NC, plated, Not included in kit

1шт.
