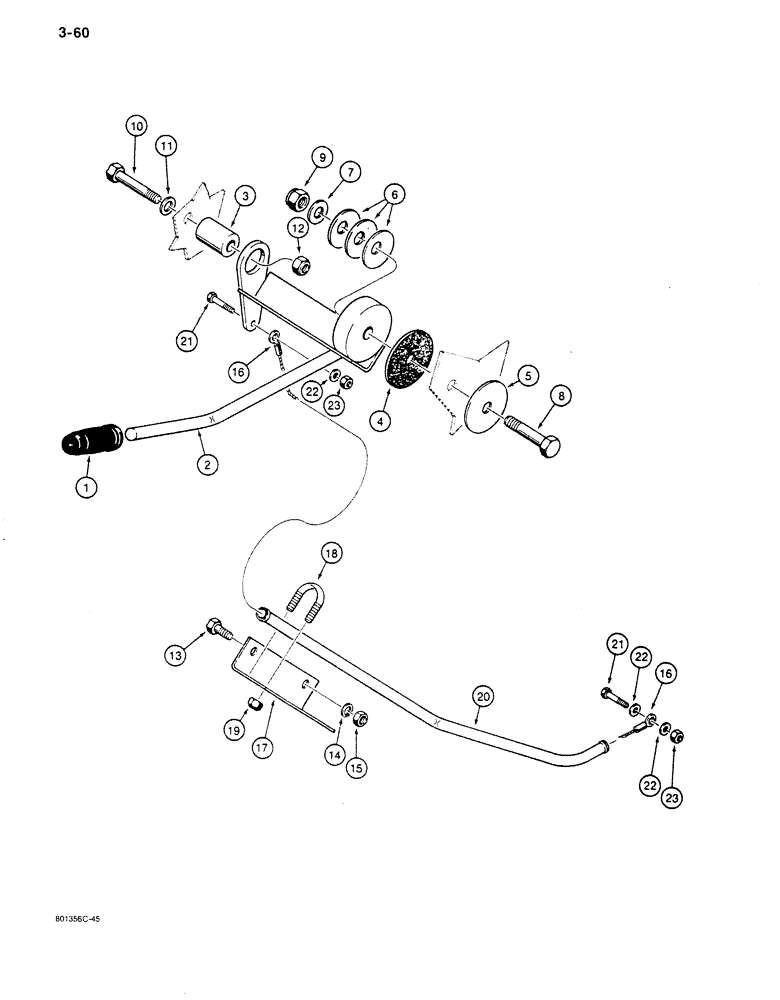

Запчасти Case 680K (3-60) - HAND THROTTLE CONTROL, WITH LEVER RELEASE (03) - FUEL SYSTEM

1

L52476

HANDLE

- hand throttle lever

1шт.

2

L108300

LEVER

- backhoe hand throttle

1шт.

3

L102794

SPACER

- mounting

1шт.

4

1342374C1

DISC

- friction

1шт.

5

495-81239

WASHER,17/32" x 2 1/4" x .180"

- flat, 1/2", special, 2-1/4" OD

1шт.

6

R14771

WASHER

SPRING - Belleville, hand throttle lever

3шт.

7

95-8

WASHER,1/2"

flat 1/2"

1шт.

8

413-844

BOLT,Hex, 1/2" - 13 x 2-3/4", Gr 5

- hex head, 1/2" - 13 NC x 2-3/4", plated

1шт.

9

231-1448

NUT,1/2"-13, GB

- hex, 1/2" - 13 NC, plated

1шт.

10

413-636

BOLT,Hex, 3/8" - 16 x 2-1/4", Gr 5

1шт.

11

495-21044

WASHER,3/8"

1шт.

12

232-1446

NUT,3/8"-16, GC

NUT, LOCK, 3/8"-16, GC

1шт.

13

413-512

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

- hex head, 5/16" - 18 NC x 3/4", plated

2шт.

14

492-11031

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

2шт.

15

425-105

NUT,5/16"-18, G5

- hex, 5/16" - 18 NC, plated

2шт.

16

D126821

CABLE

- wire, Replaces L103880 via sub

1шт.

The old L103880 and L103584 numbers have been scrapped. The old numbers cannot be mixed with the new as the new number cable ends will not fit through the old tube.

1шт.

D126821 was subed to R46465 per ECN D981032 by mistake. R46465 is too long to work in the application. It is recommended to install a knob-style hand throttle. Order kit D137517. See NLB SB 002 87.

1шт.

17

L103611

BRACKET

- throttle tube holder

1шт.

18

L78949

U-BOLT

- bracket

2шт.

19

131-4

LOCK NUT,5/16"-18, GB

NUT - hex, self-locking, 5/16" - 18 NC

4шт.

20

D128905

TUBE

- cable, backhoe hand throttle, Replaces L103584 via sub

1шт.

The old L103880 and L103584 numbers have been scrapped. The old numbers cannot be mixed with the new as the new number cable ends will not fit through the old tube.

1шт.

21

353669X1

SCREW

BOLT - hex head, 1/4" - 20 NC x 1", plated

2шт.

22

95-21031

WASHER,1/4"

- flat, , plated 1/4"

3шт.

23

231-1444

NUT,1/4"-20, GB

NUT, LOCK, 1/4"-20, GB

2шт.
