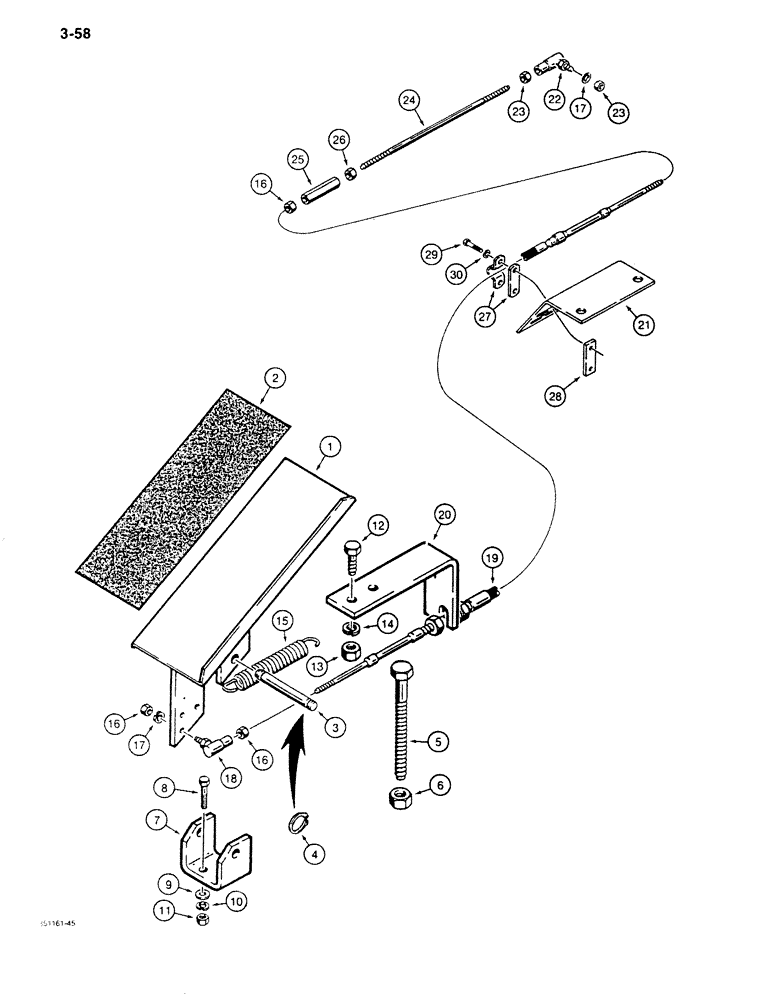

Запчасти Case 680K (3-58) - FOOT THROTTLE CONTROL (03) - FUEL SYSTEM

1

L101781

PEDAL

- accelerator, foot

1шт.

2

D55216

PAD,2" x 9"

PAD - accelerator pedal

1шт.

3

D66055

PIN,9.53mm OD x 79.25mm L

- pedal pivot

1шт.

4

D143414

CIRCLIP

RING - snap, pin retaining

2шт.

5

873489

SCREW,Hex, 1/2" - 13 x 5", Gr 5, Full Thd

BOLT - hex head, 1/2" - 13 NC x 5", full thread, plated

1шт.

6

425-148

JAM NUT,Jam, 1/2"-13, G5

- hex, jam, 1/2" - 13 NC, plated

1шт.

7

L48002

BRACKET

- accelerator pedal pivot

1шт.

8

353669X1

SCREW

BOLT - hex head, 1/4" - 20 NC x 1", plated

2шт.

9

95-21031

WASHER,1/4"

- flat, , plated 1/4"

2шт.

10

492-11025

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

2шт.

11

425-104

NUT,1/4"-20, Cl 5

- hex, 1/4" - 20 NC, plated

2шт.

12

413-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5

- hex head, 3/8" - 16 NC x 1", plated

2шт.

13

425-106

NUT,3/8"-16, Cl 5

2шт.

14

492-11038

LOCK WASHER,3/8"

2шт.

15

L101777

SPRING

- extension

1шт.

16

225-14210

NUT,#10-32

3шт.

17

492-11010

LOCK WASHER,#10

WASHER, LOCK, #10

2шт.

18

L12437

BALL JOINT,#10 - 32 x 7/8"

JOINT - ball, cable

1шт.

19

L111265

CABLE

- throttle control

1шт.

20

L101778

BRACKET

- accelerator cable mounting

1шт.

21

D146170

BRACKET

- throttle cable

1шт.

22

L12437

BALL JOINT,#10 - 32 x 7/8"

JOINT - ball, cable, attaches to fuel injection pump lever

1шт.

23

225-14210

NUT,#10-32

2шт.

24

L108065

ROD

- accelerator linkage

1шт.

25

L14227

CONNECTOR, ELEC

TURNBUCKLE - cable

1шт.

26

129-315

NUT,#10-32, LH

1шт.

27

L12441

CLAMP

- two-piece, throttle control cable

1шт.

28

L106009

RETAINER

- clamp

1шт.

29

463-11012

SCREW,Hex Hd, #10-24 x 3/4"

BOLT - hex head, No. 10 - 24 NC x 3/4", plated, special

2шт.

30

492-11010

LOCK WASHER,#10

WASHER, LOCK, #10

2шт.
