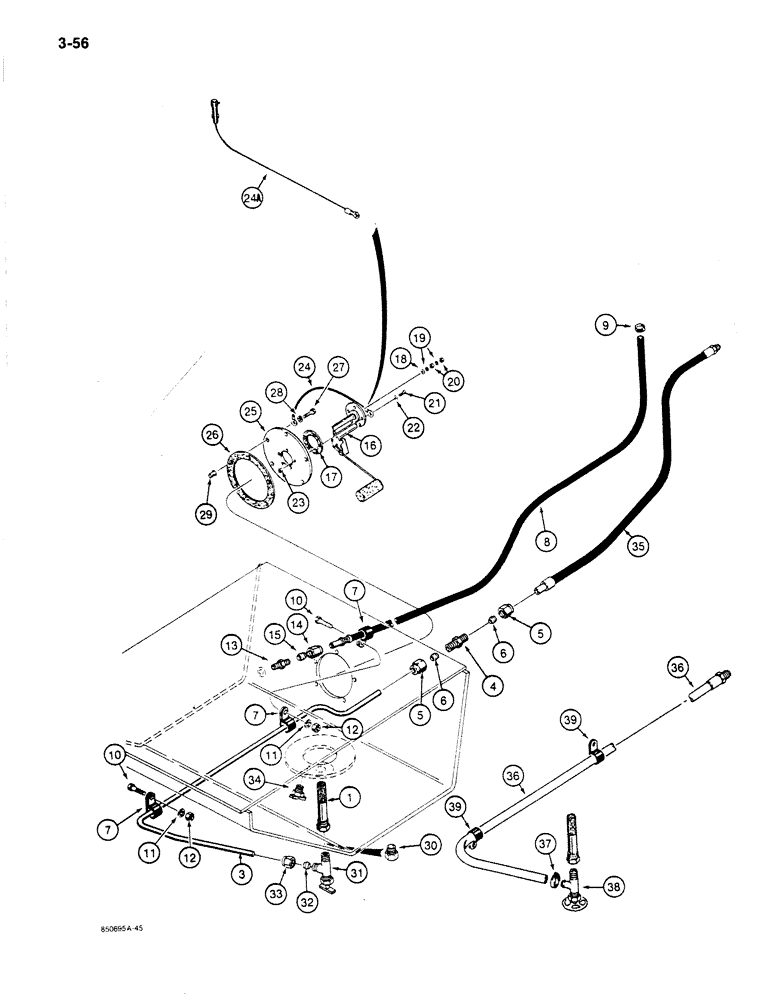

Запчасти Case 680K (3-56) - FUEL TANK AND FUEL LINES (03) - FUEL SYSTEM

1

L58022

STRAINER ASSY.

STRAINER - fuel tank

1шт.

3

L101839

FUEL TUBE,0.375" OD

TUBE - fuel supply, used with Ref. 35 hose, if used

1шт.

222-5

FITTING,5/8"-24 Flex Tube

ASSEMBLY - compression, straight, 3/8" tube, used with Ref. 3 tube and Ref. 35 hose only, if used, Includes: Ref. 4 - 6

1шт.

4

NSS

NOT SOLD SEPARAT

BODY - fitting

1шт.

5

265205R1

TUBE NUT,0.531" Length

NUT - compression, fitting

2шт.

6

265204R1

SLEEVE

- fitting

2шт.

7

515-25159

CLAMP,5/8", Insul, 1/2" Bolt

Hose 5/8", Insul, 1/2" Bolt

1-3шт.

8

L111334

HOSE

- 55" (1397 mm) long, fuel return

1шт.

9

214-274

HOSE CLAMP,#04, 0.25" - 0.62", Type F Worm

includes screw #4, 0.25/0.62 Type F Worm

1шт.

10

87689

BOLT,1/2"-13 x 1.813" OAL, Gr 5

2шт.

11

80679

LOCK WASHER,1/20.507 CST ZND

WASHER, LOCK, 1/2"

2шт.

12

425-108

NUT,1/2" - 13, Gr 5

NUT, , Hex 1/2"-13, G5

2шт.

222-23

FITTING,1/2"-24 x 1/4" NPTF w/Nut

ASSEMBLY - compression, straight, Includes: Ref. 13 - 15

1шт.

13

NSS

NOT SOLD SEPARAT

BODY - fitting

1шт.

14

915499R1

TUBE NUT

NUT - compression, fitting

1шт.

15

915500R1

SLEEVE

- fitting

1шт.

16

D148289

FUEL GAUGE

SENDER - fuel gauge, Includes: Ref. 17 - 20

1шт.

17

528359R4

GASKET,3.05mm Thk

- sender

1шт.

18

495-31025

WASHER,3/16"

- flat, 3/16"

1шт.

19

492-11010

LOCK WASHER,#10

WASHER, LOCK, #10

2шт.

20

225-14110

NUT,#10-24

2шт.

21

470-11012

SCREW,Pan HD, #10 - 24 x 3/4"

- machine, pan head slotted, No. 10 - 24 NC x 3/4", plated

5шт.

22

L77590

WASHER

- special

5шт.

23

86625057

NUT,#10-24, GB

NUT, LOCK, #10-24, GB

5шт.

24

A31060

ELECTRICAL WIRE

WIRE - sender ground, used on models with 24 volt electrical circuit

1шт.

24a

D143691

HARNESS

WIRE - sender ground, attaches to harness, used on models with 12 volt electrical circuit

1шт.

25

L77441

PLATE

- fuel sender

1шт.

26

L79876

GASKET,4.57mm Thk

- plate

1шт.

27

353669X1

SCREW

BOLT - hex head, 1/4" - 20 NC x 1", plated

5шт.

28

492-11025

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

5шт.

29

L13176

NUT

- special

5шт.

30

221-1086

REDUCER,3/8" NPT x 1/4" NPT

- 3/8" x 1/4" NPT, used with D74027 valve, if used

1шт.

D74027

VALVE

ASSEMBLY - shutoff, fuel tank outlet, used with Ref. 3 tube only, if used, Includes: Ref. 31 - 33

1шт.

31

NSS

NOT SOLD SEPARAT

BODY - shutoff valve

1шт.

32

222-654

FERRULE,3/8" Tube, Comp

- fitting

1шт.

33

222-664

TUBE NUT,9/16"-24, 45 Degree Fl, Comp

NUT - compression, fitting

1шт.

34

114981

VALVE

- fuel tank drain, if used

1шт.

35

D131317

HOSE ASSY.

HOSE - 29-1/2" (750 mm) long, fuel supply, used with Ref. 3 tube, if used

1шт.

36

D135528

FUEL HOSE

HOSE - 79-5/16" (2015 mm) long, fuel supply, tank to pump, replaces Ref. 3 tube and Ref. 35 hose used on some models

1шт.

37

214-252

HOSE CLAMP,#08, 0.5" - 0.91", Type F Worm

CLAMP - Ref. 36 hose

1шт.

38

A154051

COCK, DRAIN

VALVE - shutoff, fuel tank outlet, used with Ref. 36 hose

1шт.

39

515-25190

CLAMP,3/4", Insul, 1/2" Bolt

P-type, Used with Ref. 36 hose 3/4", Insul, 1/2" Bolt

2шт.
