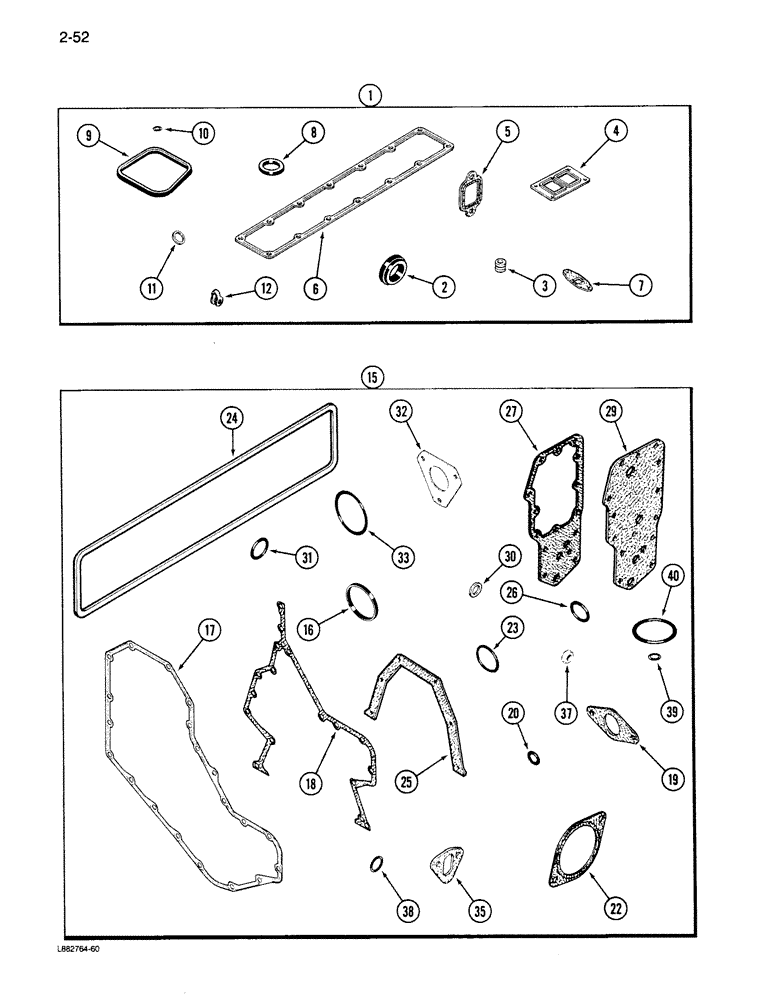

Запчасти Case 680K (2-52) - ENGINE GASKET KITS, 6-590 ENGINE, VALVE GRIND, CYLINDER BLOCK (02) - ENGINE

1

A77925

GASKET KIT

- valve grind, Includes: Ref. 2 - 12

1шт.

When just the valve grind gasket kit is used, also order the required cylinder head gasket on figure 2-49.

1шт.

2

J923331

GASKET

- housing, thermostat

1шт.

3

J921640

SEAL

- valve

12шт.

4

J919369

GASKET,0.5mm Thk

-, Serial Range: turbocharger-manifold

1шт.

5

J927154

GASKET,0.38mm Thk

- exhaust manifold

6шт.

6

J914029

GASKET

- intake cover (Replaces J907036)

1шт.

7

J937706

GASKET,0.79mm Thk

- drain tube (Replaces J901805)

1шт.

8

J902363

O-RING,30mm ID x 48mm OD x 3mm Thk

- oil fill cap

6шт.

9

J930906

GASKET

SEAL - rocker cover

6шт.

10

J910824

O-RING,0.07" Thk x 0.364" ID, -12, Cl 5, 75 Duro

- cover bolt (Replaces J901837)

6шт.

11

J900808

SEAL

- injector

6шт.

12

J903380

SEAL

- connector

6шт.

15

A77861

GASKET KIT

- engine block, cylinder, Includes: Ref. 16 - 40

1шт.

For complete engine overhaul, order 1 - valve grind kit, 1 - cylinder block kit, 1 - oil pan kit, Figure 2-47, front and rear crankshaft seal kit, Figure 2-59 and required cylinder head gasket Figure 2-49.

1шт.

16

S8046083

GASKET

SEAL - cover

1шт.

17

J914385

GASKET,1.02mm Thk

- front cover (Replaces J905143)

1шт.

18

J938156

GASKET,0.79mm Thk

- gear housing (Replaces J907836)

1шт.

19

V8046086

GASKET

- pin housing, timing

1шт.

20

J913994

O-RING

- sealing

1шт.

22

144169C2

GASKET,0.79mm Thk

- cover plate

1шт.

23

238-5341

O-RING,0.21" Thk x 3.475" ID, -341, Cl 5, 75 Duro

(Replaces A30395) -341, 70 Duro, 3.475" ID x .210" Thk

1шт.

24

J284623

GASKET

- tappet cover

1шт.

25

J938159

GASKET

- seal retainer (Replaces J901019)

1шт.

26

P1245256

GASKET,Square, 5.16mm Thk x 50.17mm ID

O-RING - sealing, 50 mm ID (Replaces J901467)

1шт.

27

J942914

GASKET

- cooler core (Replaces J904427)

1шт.

29

J929792

GASKET,1.2mm Thk

- filter head (Replaces J905589)

1шт.

30

J902425

SEALING WASHER,22.2mm ID x 26.9mm OD x 1.75mm Thk

- seal, plug

1шт.

31

S1245259

GASKET

O-RING - sealing (Replaces J906704)

1шт.

32

J931607

GASKET

- pump mounting (Replaces J905685)

1шт.

33

238-5362

O-RING,0.21" Thk x 6.225" ID, -362, Cl 5, 75 Duro

Flywheel housing -362, 70 Duro, 6.225" ID x .210" Thk

1шт.

35

J931059

GASKET

- mounting, pump (Replaces J904044)

1шт.

37

J928759

SEALING WASHER

ASSEMBLY - cover bolt

6шт.

38

253070R1

O-RING,0.139" Thk x 0.859" ID, -212, Cl 5, 75 Duro

- plug (Replaces J904469)

1шт.

39

R1245258

GASKET,Square, 0.103" Thk x 0.549" ID, -113

O-RING - sealing, 14 mm ID (Replaces J903846)

1шт.

40

Q1245257

GASKET,Square, 1.68mm Thk x 69.57mm ID, -39

O-RING - sealing, 17 mm ID (Replaces J903546)

1шт.
