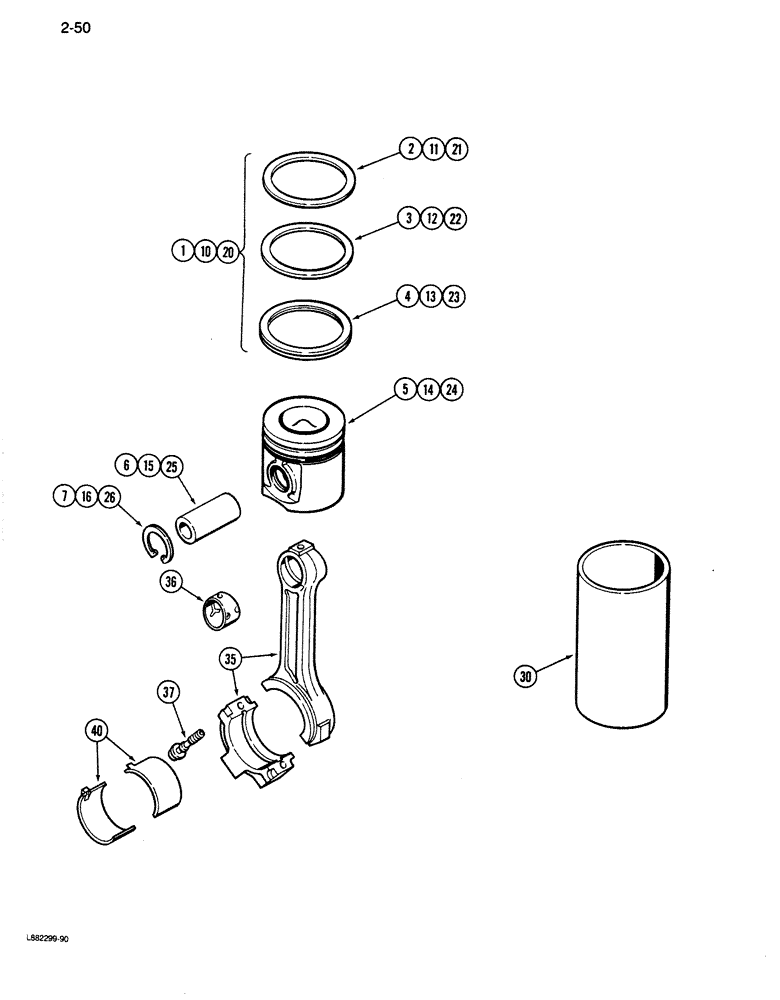

Запчасти Case 680K (2-50) - PISTONS, 6-590 ENGINE, CONNECTING RODS (02) - ENGINE

A77410

PISTON

KIT - engine (Standard) Includes: Ref. 1 - 7

6шт.

A77410/411/412 are short pin piston kits (stamped 6223, 6209 and 6208 on piston) and A77818/819/820 are long pin piston kits (stamped 1880, 1882, 1881 on piston). Do not mix.

1шт.

1

A77401

PISTON RING SET

RING KIT - piston (Standard) Includes: Ref. 2 - 4

1шт.

2

NSS

NOT SOLD SEPARAT

RING - compression (Top)

1шт.

3

NSS

NOT SOLD SEPARAT

RING - compression (Middle)

1шт.

4

NSS

NOT SOLD SEPARAT

RING - oil (Bottom)

1шт.

5

NSS

NOT SOLD SEPARAT

PISTON - cylinder (Standard) (Stamped 6623)

1шт.

A77410/411/412 are short pin piston kits (stamped 6223, 6209 and 6208 on piston) and A77818/819/820 are long pin piston kits (stamped 1880, 1882, 1881 on piston). Do not mix.

1шт.

6

J901793

PISTON PIN

PIN - piston

1шт.

7

J920691

SPECIAL RING

RING - retainer, pin

2шт.

A77411

PISTON

KIT - engine (0.5 mm oversize) Includes: Ref. 10 - 16

6шт.

A77410/411/412 are short pin piston kits (stamped 6223, 6209 and 6208 on piston) and A77818/819/820 are long pin piston kits (stamped 1880, 1882, 1881 on piston). Do not mix.

1шт.

10

A77463

PISTON RING SET

RING KIT - engine (0.5 mm oversize) Includes: Ref. 11 - 13

1шт.

11

NSS

NOT SOLD SEPARAT

RING - compression (Top)

1шт.

12

NSS

NOT SOLD SEPARAT

RING - compression (Middle)

1шт.

13

NSS

NOT SOLD SEPARAT

RING - oil (Bottom)

1шт.

14

NSS

NOT SOLD SEPARAT

PISTON - cylinder (0.5 mm oversize) (Stamped 6209)

1шт.

A77410/411/412 are short pin piston kits (stamped 6223, 6209 and 6208 on piston) and A77818/819/820 are long pin piston kits (stamped 1880, 1882, 1881 on piston). Do not mix.

1шт.

15

J901793

PISTON PIN

PIN - piston

1шт.

16

J920691

SPECIAL RING

RING - retainer, pin

2шт.

L7679986

PISTON

KIT - engine (1.0 mm oversize) Includes: Ref. 20 - 26

6шт.

20

A77464

PISTON RING SET

RING KIT - engine (1.0 mm oversize) Includes: Ref. 21 - 23

1шт.

21

NSS

NOT SOLD SEPARAT

RING - compression (Top)

1шт.

22

NSS

NOT SOLD SEPARAT

RING - compression (Middle)

1шт.

23

NSS

NOT SOLD SEPARAT

RING - oil (Bottom)

1шт.

24

NSS

NOT SOLD SEPARAT

PISTON - cylinder (1.0 mm oversize) (Stamped 6208)

1шт.

A77410/411/412 are short pin piston kits (stamped 6223, 6209 and 6208 on piston) and A77818/819/820 are long pin piston kits (stamped 1880, 1882, 1881 on piston). Do not mix.

1шт.

25

J901793

PISTON PIN

PIN - piston

1шт.

26

J920691

SPECIAL RING

RING - retainer, pin

2шт.

30

J904166

SLEEVE

LINER - piston (Used only in engine block repair) (When liner is installed, use only A77410 piston kit)

1шт.

35

J901569

ROD, CONNECTING

ROD ASSEMBLY - connecting, new, Includes: Ref. 36, 37

6шт.

35

JR901569

ROD

Assembly - connecting, remanufactured

6шт.

35

JC901569

CORE-ROD CONNECTING

Return Number - use this part number to return connecting rod for credit

6шт.

35

JR942581

REMAN-CONNECTING ROD

Remanufactured Connecting Rod

6шт.

35

JC942581

CORE-ROD CONNECTING

Return Number

6шт.

35

84145405R

REMAN-CONNECTING ROD

680K, Reman For New PN J901569

6шт.

35

84145405C

CORE-ROD CONNECTING

Return Number

6шт.

36

NSS

NOT SOLD SEPARAT

BUSHING - rod to piston pin (Order J901569) connecting rod

1шт.

37

K3333077

SCREW

BOLT - hex special, MJ11 x 1 x 26 mm, connecting rod

2шт.

40

K3543274

SHIM KIT

BEARING KIT - connecting rod (set, upper and lower, standard)

6шт.

40

L3543275

SET

BEARING KIT - connecting rod (set, upper and lower, 0.25 mm oversize)

6шт.

40

M3543276

SET

BEARING KIT - connecting rod (set, upper and lower, 0.5 mm oversize)

6шт.

40

N3543277

SET

BEARING KIT - connecting rod (set, upper and lower, 0.76 mm oversize)

6шт.

40

P3543278

SET

BEARING KIT - connecting rod (set, upper and lower, 1.0 mm oversize)

6шт.
