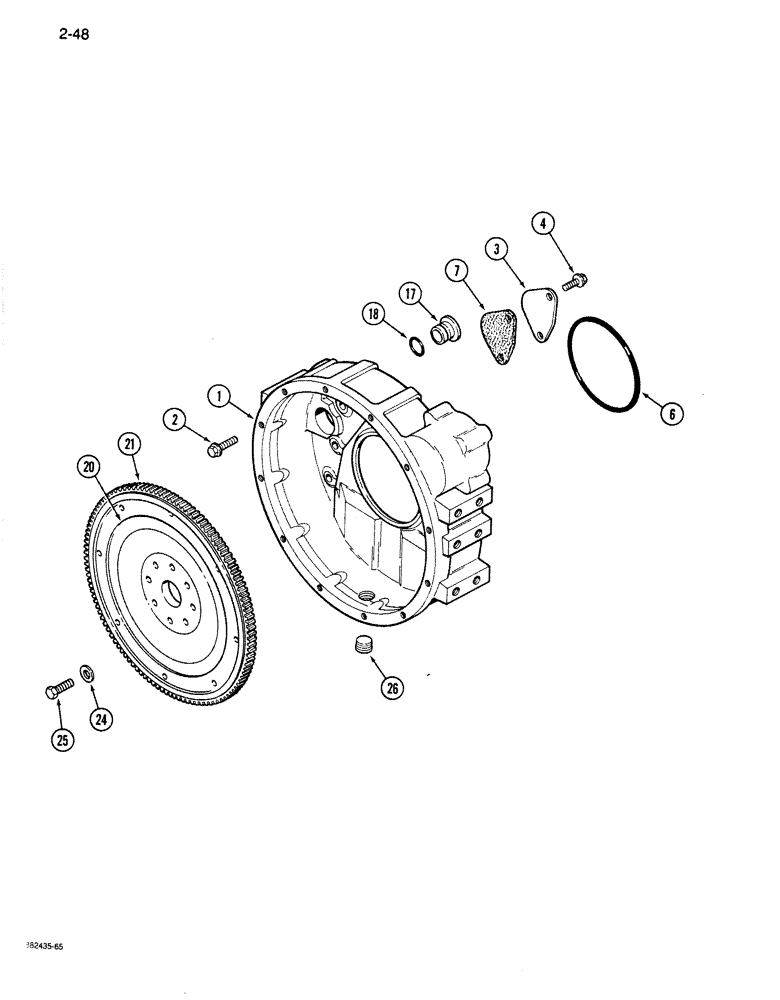

Запчасти Case 680K (2-48) - FLYWHEEL AND HOUSING, 6-590 ENGINE (02) - ENGINE

1

J937426

HOUSING

- flywheel

1шт.

On outside circumference of this housing there is also a 3/4 NF hex head plug, P/N 353-225 (not shown).

1шт.

2

854-12040

BOLT,Hvy Hex, M12 x 40mm, Cl 10.9

Housing retaining (Replaces J901408) Hex Flg, M12 x 40, 10.9

8шт.

3

J925234

PLATE

- cover

1шт.

4

J912072

SELF-TAP SCREW

SCREW, SELF TAPPING, hex, plate retaining, 8x15 mm

2шт.

6

J912473

SEAL,157mm ID x 163.18mm OD x 7.03mm Thk

O-RING - housing to block (Replaces A157927)

1шт.

7

J908096

GASKET

- cover plate

1шт.

17

K3237443

PLUG

- housing (Replaces J904470)

1шт.

18

253070R1

O-RING,0.139" Thk x 0.859" ID, -212, Cl 5, 75 Duro

- plug (Replaces J904469)

1шт.

20

J908832

FLYWHEEL WITH GEAR

FLYWHEEL ASSEMBLY - crankshaft (Replaces J905430) Includes: Ref. 21

1шт.

21

Q4339332

SLEWING RING

GEAR - ring, flywheel

1шт.

24

Q3145310

WASHER

- flat, flywheel bolt

8шт.

25

M3333079

SCREW

BOLT - hex head, M12 x 1.25 x 32 mm

8шт.

26

221-1845

DRAIN PLUG,Hex Soc, 3/4"-14, NPTF

PLUG - housing drain

1шт.
