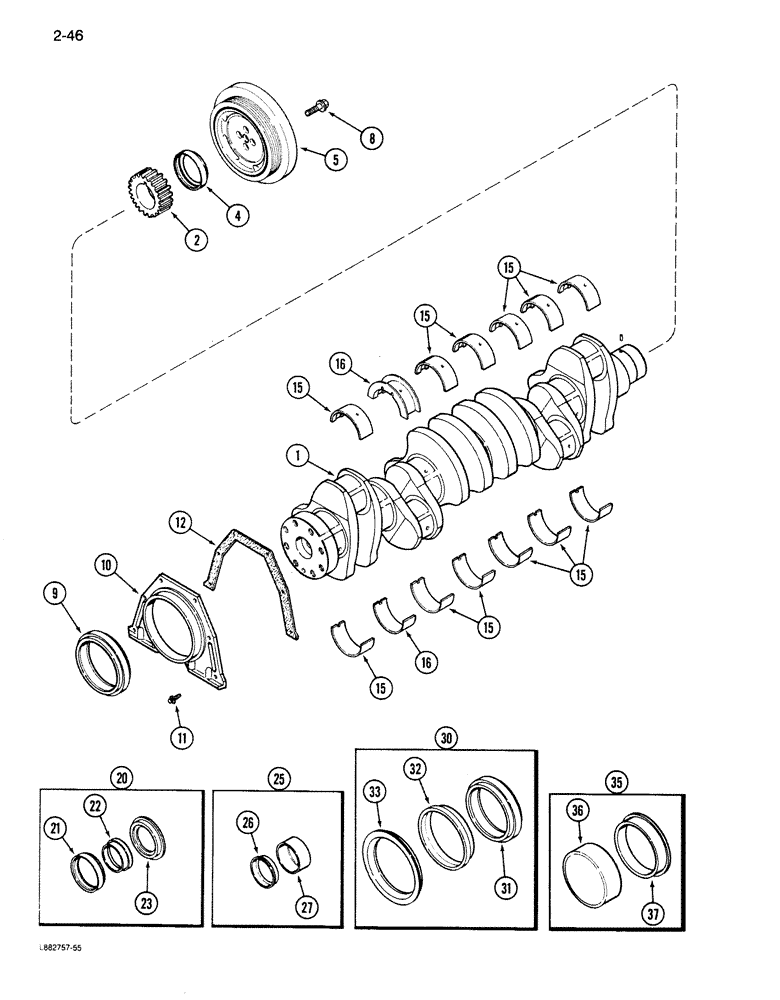

Запчасти Case 680K (2-46) - CRANKSHAFT, 6-590 ENGINE (02) - ENGINE

J908032

CRANKSHAFT

ASSEMBLY - engine (Remanufactured) (North America only)

1шт.

JC908032

CORE-CRANKSHAFT

RETURN NUMBER - crankshaft assembly (Use this part number to return crankshaft core for credit)

1шт.

1

J918324

CRANKSHAFT

ASSEMBLY - engine (New) Includes: Ref. 2, 3

1шт.

2

J901258

GEAR

- crankshaft

1шт.

3

L2527227

DOWEL

PIN - dowel

1шт.

4

NSS

NOT SOLD SEPARAT

SEAL - oil, crankshaft front (Order Ref 20)

1шт.

5

L1538572

PULLEY

- crankshaft dampener (Replaces J907190)

1шт.

8

R3333083

SCREW

BOLT - HEX FLANGE HEAD, M12 X 36 mm

4шт.

10

NSS

NOT SOLD SEPARAT

SEAL - oil, crankshaft rear (Order Ref 30)

1шт.

11

J936904

REAR COVER

RETAINER - rear seal (Replaces J906526)

1шт.

12

J938159

GASKET

- seal retainer (Replaces J901019)

1шт.

13

845-6015

BOLT,Hvy Hex, M6 x 15mm, Cl 8.8

6шт.

15

R3543257

SET

BEARING KIT - main (Set) upper and lower, standard

6шт.

15

S3543258

SET

BEARING KIT - main (Set) upper and lower, 0.25 mm oversize

6шт.

15

T3543259

SET

BEARING KIT - main (Set) upper and lower, 0.5 mm oversize

6шт.

15

U3543260

SET

BEARING KIT - main (Set) upper and lower, 0.75 mm oversize

6шт.

15

V3543261

SET

BEARING KIT - main (Set) upper and lower, 1.0 mm oversize

6шт.

17

A77896

BEARING SET

BEARING KIT - thrust, main (Set) upper and lower, standard

1шт.

17

X3543263

SET

BEARING KIT - thrust, main (Set) upper and lower, 0.25 mm oversize

1шт.

17

Z3543264

SET

BEARING KIT - thrust, main (Set) upper and lower, 0.5 mm oversize

1шт.

17

A77477

THRUST BEARING

BEARING KIT - thrust, main (Set) upper and lower, 0.75 mm oversize

1шт.

17

B3543266

SET

BEARING KIT - thrust, main (Set) upper and lower, 1.0 mm oversize

1шт.

20

J904353

GASKET KIT

SEAL KIT - oil, crankshaft front, Includes: Ref. 21 - 23

1шт.

21

NSS

NOT SOLD SEPARAT

SEAL - oil, front

1шт.

22

NSS

NOT SOLD SEPARAT

TOOL - installation

1шт.

23

NSS

NOT SOLD SEPARAT

TOOL - installation

1шт.

25

A77890

SEAL PACKAGE

WEAR SLEEVE KIT - crankshaft front, Includes: Ref. 26, 27

1шт.

26

NSS

NOT SOLD SEPARAT

SLEEVE - wear

1шт.

27

NSS

NOT SOLD SEPARAT

TOOL - installation

1шт.

30

J909411

SEAL

KIT - oil, crankshaft rear, Includes: Ref. 31 - 33

1шт.

31

NSS

NOT SOLD SEPARAT

SEAL - oil, rear

1шт.

32

NSS

NOT SOLD SEPARAT

TOOL - installation

1шт.

33

NSS

NOT SOLD SEPARAT

TOOL - installation

1шт.

35

J906081

SLEEVE

WEAR SLEEVE KIT - crankshaft rear, Includes: Ref. 36, 37

1шт.

36

NSS

NOT SOLD SEPARAT

SLEEVE - wear

1шт.

37

NSS

NOT SOLD SEPARAT

TOOL - installation

1шт.
