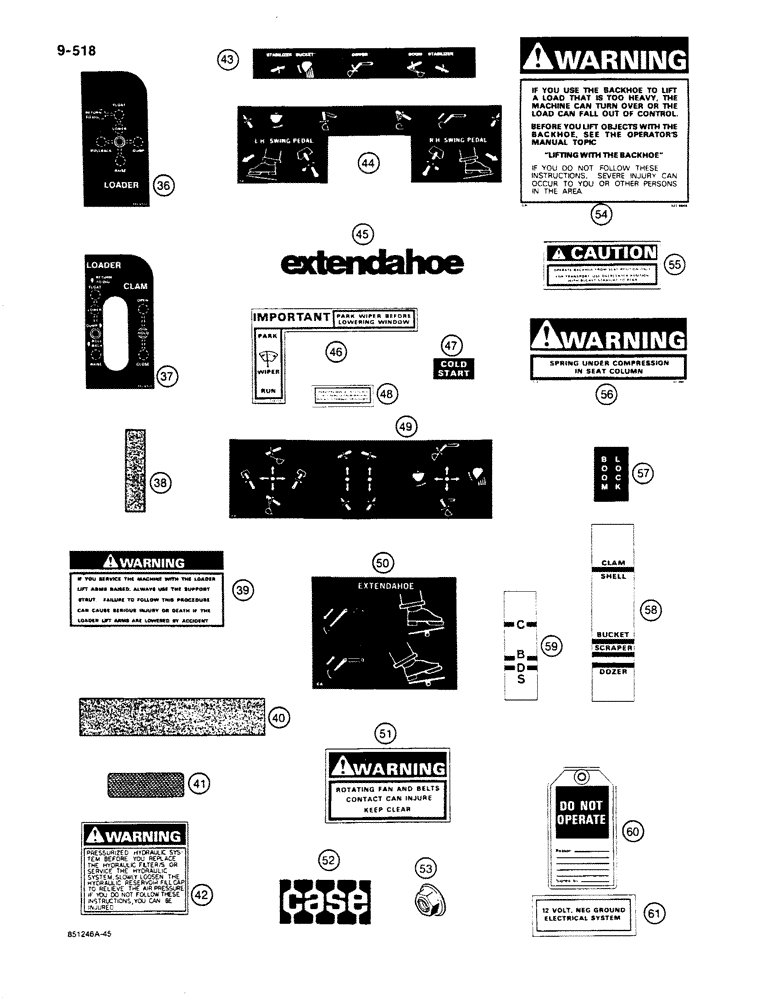

Запчасти Case 680K (9-518) - DECALS (CONTD) (09) - CHASSIS/ATTACHMENTS

D128400

KIT

- decal, 680K, continued from Figure 9-516, Includes: Ref. 36 - 55

1шт.

36

321-6211

DECAL

- loader contol pattern, two spool

1шт.

37

321-6212

DECAL

- loader control pattern, three spool

1шт.

38

D55216

PAD,2" x 9"

STRIP - anti-skid, steps, canopy models

1шт.

39

321-6671

DECAL

- Warning, right hand loader lift arm support strut usage

1шт.

40

D80270

ANTI-SKID STRIP,635mm / 25 Inch

STRIP, ANTI-SKID, Operators compartment, side, canopy models

2шт.

41

D87870

DECAL

- reflector, red, rear

2шт.

42

321-6666

DECAL

- Warning, pressurized hydraulic system

2шт.

43

D123941

DECAL

- extendahoe control pattern, upper

1шт.

44

D123940

DECAL

- extendahoe control pattern, lower

1шт.

45

D123945

DECAL

- extendahoe

2шт.

46

F45339

DECAL

- Important, park wiper before lowering window

1шт.

47

L111358

DECAL

- Cold Start

1шт.

48

321-6452

DECAL

- operator manual location, tool box

1шт.

49

D123978

DECAL

- backhoe control pattern, two lever

1шт.

50

D123948

DECAL

- Extandahoe, pedal control pattern

1шт.

51

321-3596

DECAL

- Warning, rotating fan and belts

2шт.

52

321-4739

EMBLEM

- Case, on grille

1шт.

53

131-431

PUSH-ON NUT,Self, Threading, 1/4"

NUT - push, attaches emblem to grille

2шт.

54

321-6046

WARNING DECAL

DECAL, WARNING, Backhoe load lifting

1шт.

55

321-3056

DECAL

- Caution, transport

1шт.

56

321-6774

WARNING DECAL

DECAL, WARNING

1шт.

Not included in the decal kit, must be ordered separately.

1шт.

57

L111356

DECAL

- Boom Lock

1шт.

Not included in the decal kit, must be ordered separately.

1шт.

58

321-2654

DECAL

- clam bucket indicator, used on models with L76489 bucket only

1шт.

Not included in the decal kit, must be ordered separately.

1шт.

59

D139863

DECAL

- clam bucket indicator, use on models with D139476 bucket only

1шт.

60

321-4614

TAG

- Do Not Operate

1шт.

Not included in the decal kit, must be ordered separately.

1шт.

61

321-5831

DECAL

- 12 volt, neg ground electrical system

4шт.
