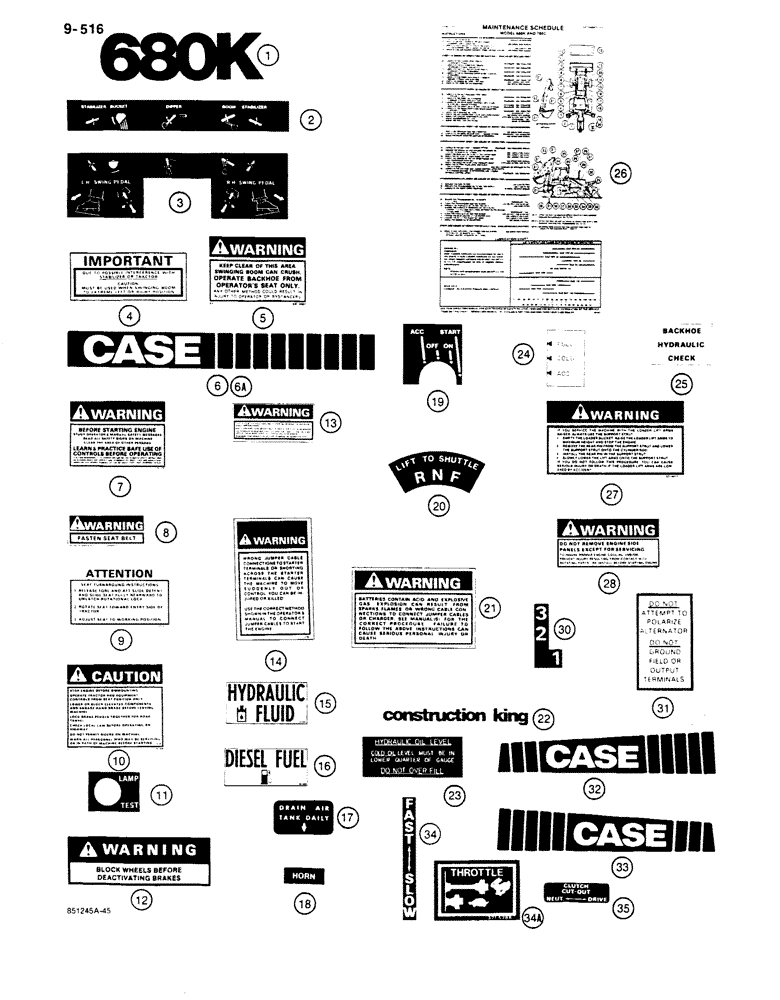

Запчасти Case 680K (9-516) - DECALS (09) - CHASSIS/ATTACHMENTS

D128400

KIT

- decal, 680k, also includes model number decal for the 780C that is not used on this model, Includes: Ref. 1 - 35

1шт.

1

D126877

DECAL

- 680K

4шт.

2

D123977

DECAL

- standard backhoe control pattern, upper

1шт.

3

D123976

DECAL

- standard backhoe control pattern, lower

1шт.

4

321-3058

DECAL

- Important, swinging boom

1шт.

5

313238A1

DECAL

- Warning, swinging boom

2шт.

6

D123959

DECAL

- Case, with right-hand treads, rear closure cab models

1шт.

6a

D123951

DECAL

- Case, with right-hand treads, rear closure, ROPS canopy models

1шт.

7

321-3705

DECAL

- Warning, before starting engine

1шт.

8

321-3060

DECAL

- Warning, fasten seat belt

1шт.

9

321-6215

DECAL

- Attention, seat turnaround instructions

1шт.

10

321-3022

DECAL

- Caution, stop engine before dismounting

1шт.

11

321-5696

DECAL

- Lamp Test, if used, not required on models with 12 volt electrical system

1шт.

12

321-6328

DECAL

- Warning, block wheels before deactivating brake

2шт.

13

321-6672

DECAL

- Warning, hot coolant

1шт.

14

321-6872

DECAL

- Warning, jump start instructions

1шт.

15

321-6376

DECAL

- Hydraulic Fluid

1шт.

16

139879A1

DECAL

- Diesel Fuel

1шт.

17

321-1077

DECAL

- Drain Air Tank Daily

1шт.

18

321-3294

DECAL

- Horn

1шт.

19

D123946

DECAL

- ignition switch pattern

1шт.

20

L111363

DECAL

- Lift to Shuttle, lever position

1шт.

21

321-6714

DECAL

- Warning, batteries contain acid and explosive gas

1шт.

22

L112009

DECAL

- construction king (Replaces L113009)

2шт.

23

L117520

DECAL

- Hydraulic Oil Level, cold oil

2шт.

24

L112139

DECAL

- radiator recovery bottle liquid level

1шт.

25

321-2798

DECAL

- Backhoe Hydraulic Check

1шт.

26

D127910

DECAL

- Maintenance Schedule

1шт.

27

321-6413

DECAL

- Warning, left-hand loader lift arm support strut usage

1шт.

28

321-5701

DECAL

- Warning, rotating parts

2шт.

30

L111361

DECAL

- range control

1шт.

31

321-1061

DECAL

- alternator instructions

1шт.

32

L111348

DECAL

- case, with tapered treads, left-hand side panel

1шт.

33

L111353

DECAL

- case, with tapered treads, right-hand side panel

1шт.

34

L111355

DECAL

- Slow-Fast, throttle, if used

1шт.

34a

321-5288

DECAL

- throttle, if used

1шт.

35

321-2785

DECAL

- Clutch Cutout

1шт.
