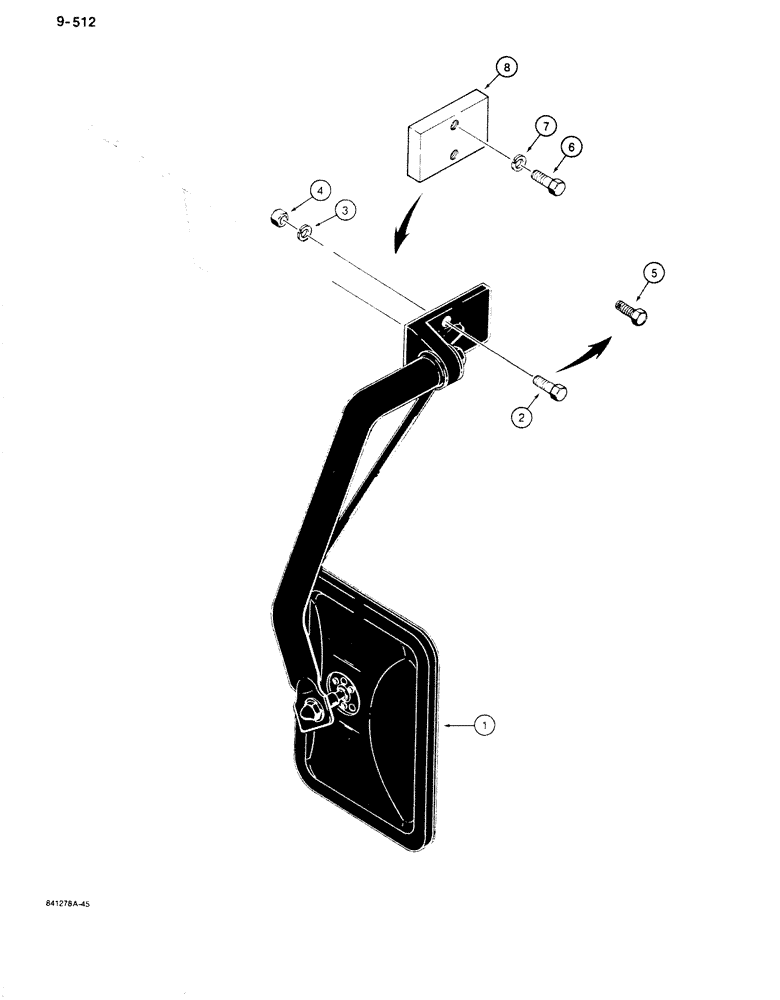

Запчасти Case 680K (9-512) - REARVIEW MIRROR, CAB AND CANOPY MODELS (09) - CHASSIS/ATTACHMENTS

D100187

KIT

KIT; Includes D91400 Mirror/A and (2) 187-1069 5/16 x 3/4 Self-Tapping Screw for Mounting Mirror to Frame; No Longer Available, Order Components

1шт.

This assembly does not include Ref. 8, mounting block.

1шт.

1

D91400

MIRROR ASSY.

Includes One Each 9803951 Mirror, 88904 1/2 x 1-1/2 Bolt, 492-21050 1/2 Lock Washer, 495-81271 13.5 x 24 x 2.5 mm Washer, 87398978 Mounting Bracket, 87515108 Mirror Arm; No Longer Available, Order Components

1шт.

9803951

REAR VIEW MIRROR

1шт.

88904

BOLT,Hex, 1/2" - 13 x 1 1/2", Gr 8, Full Thd

1шт.

492-21050

LOCK WASHER,1/2"

WASHER, LOCK, 1/2"

1шт.

495-81271

WASHER,5/8" x 1 1/4" x .134"

Flat Washer, 13.5 x 24 x 2.5 mm

1шт.

87398978

BRACKET

Mounting Bracket

1шт.

87515108

ARM ASSY.

Mirror Arm

1шт.

2

413-520

BOLT,Hex, 5/16" - 18 x 1-1/4", Gr 5

- hex head, 5/16" - 18 NC x 1-1/4", plated, if used

2шт.

3

492-11031

LOCK WASHER,5/16"

WASHER, LOCK, , not required if self-tapping screw is used 5/16"

2шт.

4

425-105

NUT,5/16"-18, G5

- hex, 5/16" - 18 NC, plated, Not required if self-tapping screw is used

2шт.

5

276-24812

SELF-TAP SCREW,5/16" - 18 x 3/4"

SCREW, SELF TAPPING, hex head, 5/16 NC x 3/4", plated, if used

2шт.

6

413-516

BOLT,Hex, 5/16" - 18 x 1", Gr 5

- hex, 5/16" - 18 NC x 1", plated, used with Ref. 8 tapped block

2шт.

7

492-11031

LOCK WASHER,5/16"

WASHER, LOCK, , used with Ref. 6 bolt 5/16"

2шт.

8

NSS

NOT SOLD SEPARAT

BLOCK - mirror mounting, welded to cab or canopy frame

1шт.

This is P/N L114209 and is not part of D100187 assembly.

1шт.
