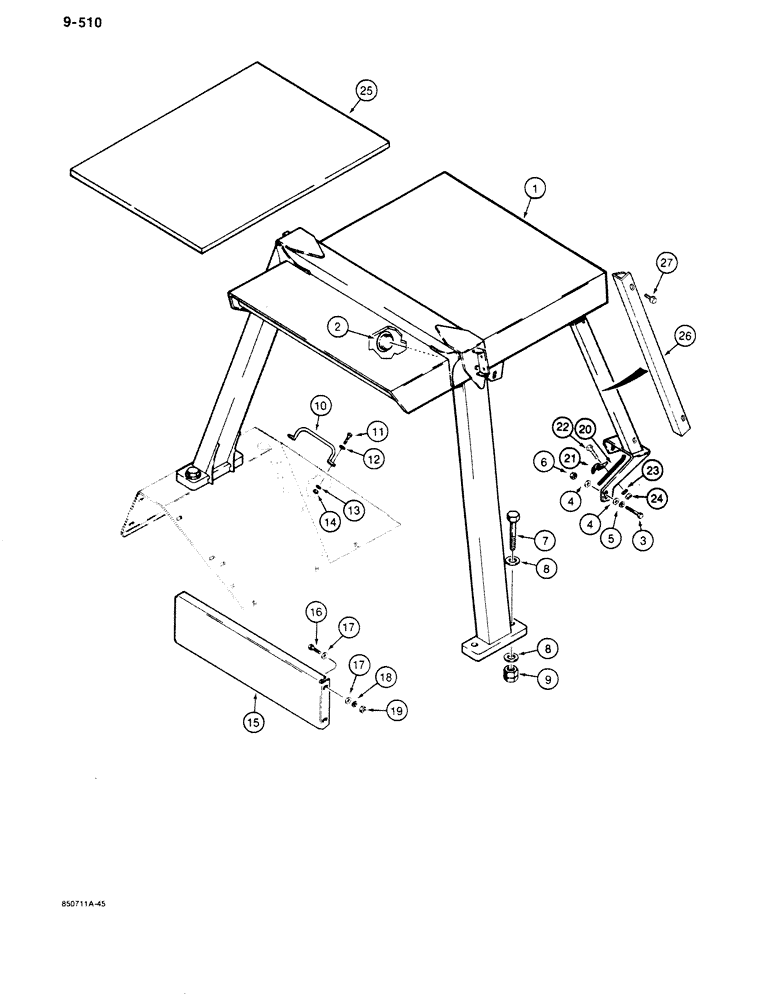

Запчасти Case 680K (9-510) - ROPS CANOPY AND REAR CLOSURE PANEL (09) - CHASSIS/ATTACHMENTS

1

D138689

ROPS

CANOPY - ROPS, machinery item, order from the Machinery Price List

1шт.

2

205-72

HOLE PLUG BUTTON,3"

PLUG - button, (76 mm) diameter, steel 3"

2шт.

3

88044

BOLT,Hex, 3/8" - 16 x 1-1/2", Gr 5

- hex head, 3/8" - 16 NC x 1-1/2", plated

4шт.

4

495-21044

WASHER,3/8"

8шт.

5

192-21

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

4шт.

6

425-106

NUT,3/8"-16, Cl 5

4шт.

7

26-2076

BOLT,Hex, 1-1/4" - 7 x 4-3/4", Gr 8

- hex head, 1-1/4" - 7 NC x 4-3/4", grade 8

4шт.

8

496-81009

WASHER,33.33mm ID x 50.33mm OD x 5.41mm Thk

- flat, 1-1/4", hardened, plated

8шт.

9

13-1233

NUT - hex, self-locking, 1-1/4" - 7 NC, plated

4шт.

10

L73545

HANDLE

- grab, canopy, rear left-hand

1шт.

11

413-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5

- hex head, 3/8" - 1 NC x 1-1/4", plated

2шт.

12

495-21044

WASHER,3/8"

2шт.

13

492-11038

LOCK WASHER,3/8"

2шт.

14

425-106

NUT,3/8"-16, Cl 5

2шт.

15

L103520

PANEL ASSY.

PANEL - rear closure, used with ROPS canopy only

1шт.

16

413-612

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5

4шт.

17

495-21044

WASHER,3/8"

8шт.

18

492-11038

LOCK WASHER,3/8"

4шт.

19

425-106

NUT,3/8"-16, Cl 5

4шт.

20

L105943

HOSE ASSY.

HOSE - harness cover, see Figure 4-108 for ROPS canopy harness, use on models with 24 volt electrical circuit

1шт.

21

515-22190

CLAMP,3/4", Insul, 5/16" Bolt

Hose, If used 3/4", Insul, 5/16" Bolt

2шт.

22

413-516

BOLT,Hex, 5/16" - 18 x 1", Gr 5

- hex, 5/16" - 18 NC x 1", plated, if used

2шт.

23

492-11031

LOCK WASHER,5/16"

WASHER, LOCK, , if used 5/16"

2шт.

24

425-105

NUT,5/16"-18, G5

- hex, 5/16" - 18 NC, plated, If used

2шт.

25

D124147

PAD

- noise reduction, canopy roof

1шт.

26

D138576

COVER

- post, harness, see Figure 4-110 for ROPS canopy harness, use on models with 12 volt electrical circuit

1шт.

27

281-1478

SELF-TAP SCREW,1/4" - 20 x 1/2"

SCREW - hex washer head, self-tapping, 1/4" - 20 NC x 1/2", plated

4шт.

345-44

ADHESIVE

- for attaching pads to metal surfaces, spray can, 23 fl ounces (680 ml), not shown

1шт.
