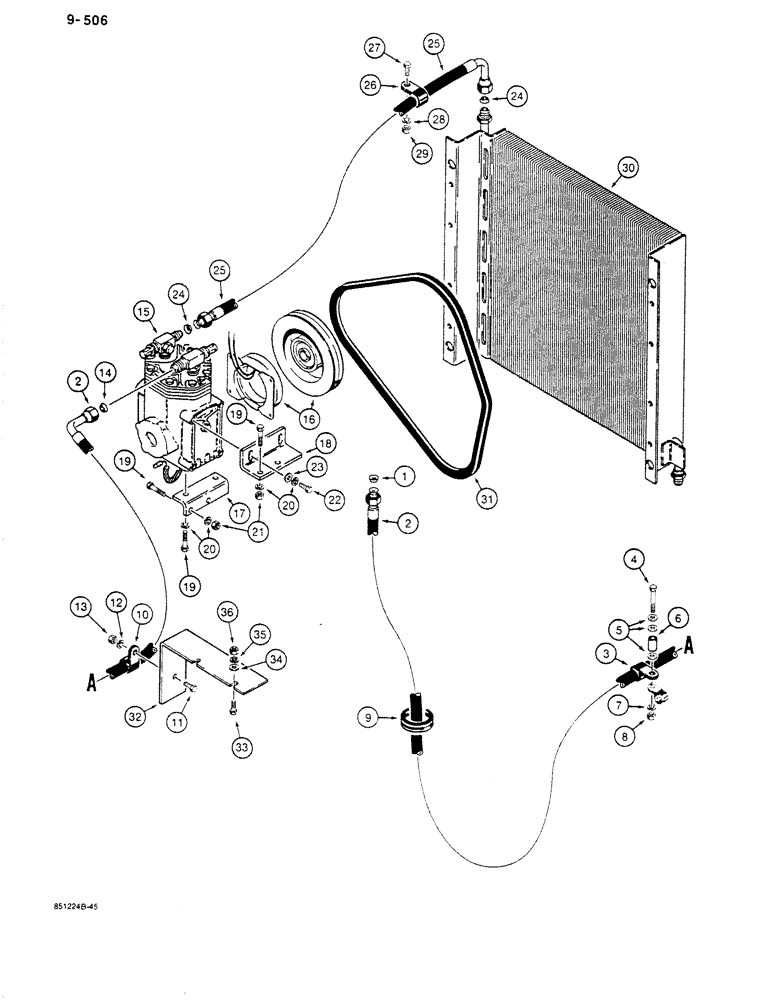

Запчасти Case 680K (9-506) - AIR CONDITIONING RETURN LINES, CAB TO COMPRESSOR AND CONDENSER (09) - CHASSIS/ATTACHMENTS

1

222-996

GASKET,3/4 Tube, Fl, Copper

- copper, 3/4" OD tube

1шт.

2

D131191

HOSE ASSY.

HOES -, Serial Range: cab-compressor

1шт.

3

D39138

CLAMP

- hose, under floor plate, double-clamp with supply hose

1шт.

4

413-532

BOLT,Hex, 5/16" - 18 x 2", Gr 5

1шт.

5

495-21038

WASHER,5/16"

3шт.

6

D36524

BUSHING

SPACER - clamp

1шт.

7

492-11031

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

1шт.

8

425-105

NUT,5/16"-18, G5

- hex, 5/16" - 18 NC, plated

1шт.

9

D132291

GROMMET

- hoses, in floor plate

1шт.

10

D39138

CLAMP

- hose, at chassis loader upright frame

1шт.

11

413-512

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

- hex head, 5/16" - 18 NC x 3/4", plated

1шт.

12

492-11031

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

1шт.

13

425-105

NUT,5/16"-18, G5

- hex, 5/16" - 18 NC, plated

1шт.

14

222-995

SEALING WASHER,15.88mm ID

- copper, 5/8"

1шт.

15

A141060

COMPRESSOR

ASSEMBLY - air conditioning, parts list Figure 9-508

1шт.

16

REF

INSTRUCTION

CLUTCH ASSEMBLY - compressor, parts list Figure 9-508

1шт.

17

D129556

BRACKET

- compressor mounting, lower

1шт.

18

D129557

BRACKET

- compressor mounting, upper

1шт.

19

88044

BOLT,Hex, 3/8" - 16 x 1-1/2", Gr 5

- hex head, 3/8" - 16 NC x 1-1/2", plated

6шт.

20

492-11038

LOCK WASHER,3/8"

8шт.

21

425-106

NUT,3/8"-16, Cl 5

4шт.

22

413-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5

- hex head, 3/8" - 16 NC x 1", plated

2шт.

23

495-11041

WASHER,0.406" ID x 0.812" OD x 0.065" W

- flat, 3/8", plated

2шт.

24

222-994

GASKET,1/2 Tube, Fl, Copper

- copper, 1/2"

2шт.

25

L112590

HOSE ASSY.

HOSE -, Serial Range: compressor-condenser

1шт.

26

515-23222

CLAMP,7/8", Insul, 3/8" Bolt

Hose to radiator support 7/8", Insul, 3/8" Bolt

1шт.

27

413-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5

- hex head, 3/8" - 16 NC x 1", plated

1шт.

28

492-11038

LOCK WASHER,3/8"

1шт.

29

425-106

NUT,3/8"-16, Cl 5

1шт.

30

A171978

CONDENSER

- air conditioning, uses radiator mounting hardware

1шт.

31

S94499

BELT,12.70 mm W x 1352.60 mm L

Drive, Air conditioning compressor 12.70 mm W x 1352.60 mm L

1шт.

32

L111567

BRACKET

- air compressor hose, mounts to hydraulic tank

1шт.

33

413-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5

- hex head, 3/8" - 16 NC x 1", plated

2шт.

34

495-21044

WASHER,3/8"

2шт.

35

492-11038

LOCK WASHER,3/8"

2шт.

36

425-106

NUT,3/8"-16, Cl 5

2шт.
