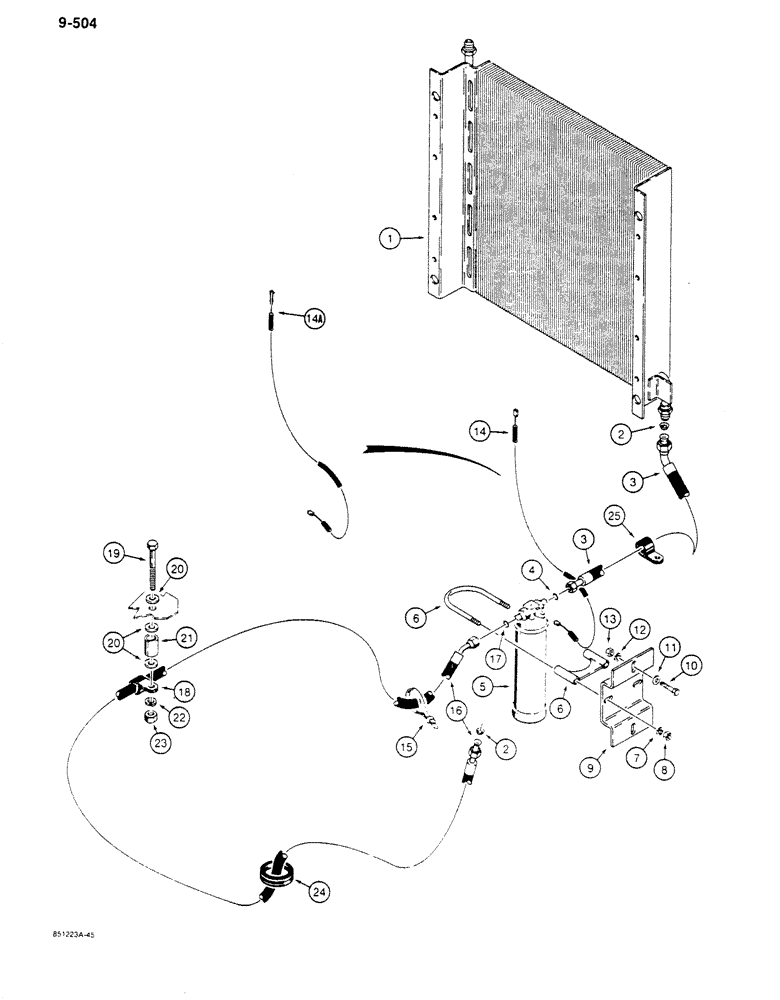

Запчасти Case 680K (9-504) - AIR CONDITIONING SUPPLY LINES, CONDENSER TO RECEIVER-DRIER AND CAB (09) - CHASSIS/ATTACHMENTS

1

A171978

CONDENSER

- refrigerant cooler, attaches to radiator support with radiator mounting hardware

1шт.

2

222-993

GASKET,3/8 Tube, Fl, Copper

Supply hose 3/8 Tube, Fl, Copper

2шт.

3

L112589

HOSE ASSY.

HOSE - condenser to receiver-drier, Includes: Ref. 4

1шт.

4

A61198

O-RING,0.07" Thk x 0.301" ID, -11

- hose

1шт.

5

A76312

RECEIVER-DRYER

RECEIVER-DRIER - air conditioning

1шт.

6

L72884

CLAMP

ASSEMBLY - receiver drier, Includes: Ref. 7, 8

1шт.

7

492-11038

LOCK WASHER,3/8"

2шт.

8

425-106

NUT,3/8"-16, Cl 5

2шт.

9

L111587

BRACKET

- receiver-drier

1шт.

10

413-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5

- hex head, 3/8" - 16 NC x 1-1/4", plated

2шт.

11

495-21044

WASHER,3/8"

2шт.

12

492-11038

LOCK WASHER,3/8"

2шт.

13

425-106

NUT,3/8"-16, Cl 5

2шт.

14

D143484

ELECTRICAL WIRE

HARNESS - air conditioning, receiver-drier to compressor, used on models with 24 volt electrical circuit

1шт.

14a

D137821

ELECTRICAL WIRE

HARNESS - air conditioning, receiver-drier to compressor, used on models with 12 volt electrical circuit

1шт.

15

L18337

CABLE TIE,9.95"-12.1" lg

STRAP - tie, 15 inch, nylon

1шт.

16

D131192

HOSE ASSY.

HOES -, Serial Range: receiver-drier-cab

1шт.

17

A61198

O-RING,0.07" Thk x 0.301" ID, -11

- hose

1шт.

18

515-22190

CLAMP,3/4", Insul, 5/16" Bolt

Hose, under floorplate, double-clamp with return hose 3/4", Insul, 5/16" Bolt

1шт.

19

413-532

BOLT,Hex, 5/16" - 18 x 2", Gr 5

1шт.

20

495-21038

WASHER,5/16"

3шт.

21

D36524

BUSHING

SPACER - clamp

1шт.

22

492-11031

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

1шт.

23

425-105

NUT,5/16"-18, G5

- hex, 5/16" - 18 NC, plated

1шт.

24

D132291

GROMMET

- hoses, in floor plate

1шт.

25

515-25190

CLAMP,3/4", Insul, 1/2" Bolt

Hose from condenser to Receiver-Drier, Uses radiator support mounting hardware 3/4", Insul, 1/2" Bolt

1шт.
