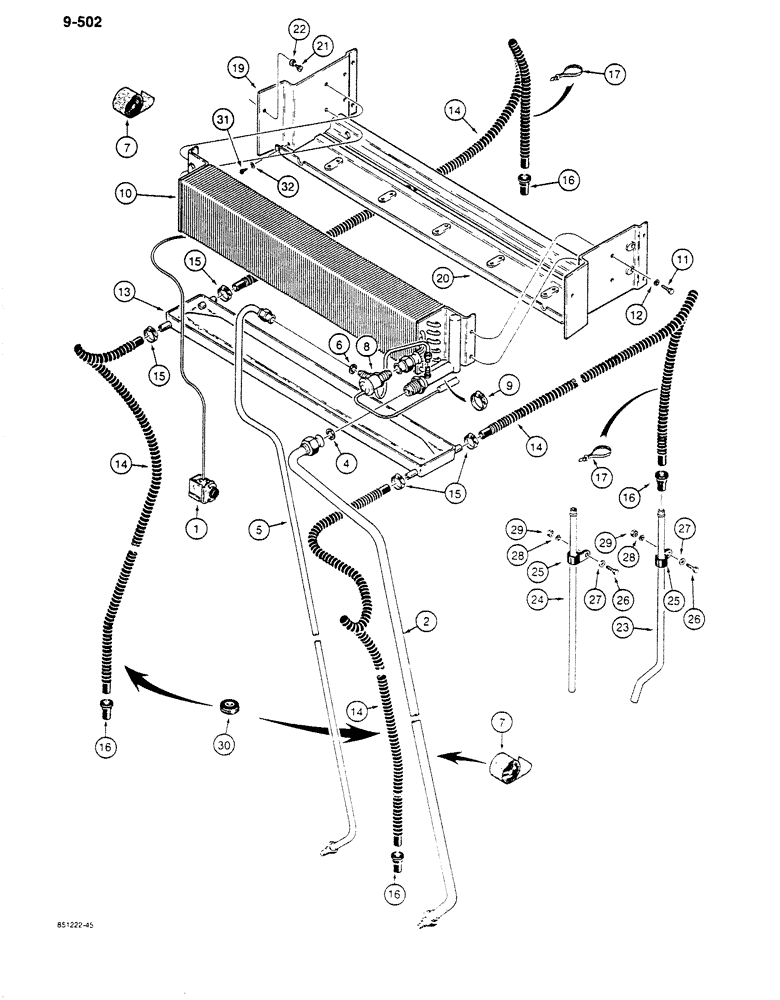

Запчасти Case 680K (9-502) - CAB AIR CONDITIONING (09) - CHASSIS/ATTACHMENTS

1

REF

INSTRUCTION

SWITCH - air conditioning control, see Figure 9-482

1шт.

2

F44941

TUBE

- suction, 3/4" OD

1шт.

4

222-996

GASKET,3/4 Tube, Fl, Copper

- copper, 3/4" tube OD, suction tube

1шт.

5

F44940

TUBE

- pressure, 3/8" OD

1шт.

6

222-993

GASKET,3/8 Tube, Fl, Copper

Pressure tube 3/8 Tube, Fl, Copper

1шт.

7

A42902X

SEALING STRIP

TAPE - cork, insulating, bulk roll, 30 ft (914 cm) long

1шт.

8

F64389

VALVE

- expansion

1шт.

9

98156C1

CLAMP

- hose

1шт.

10

F44712

CORE

- evaporator

1шт.

11

353665X1

SCREW

BOLT - hex head, 1/4" - 20 NC x 1/2", plated

4шт.

12

492-11025

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

4шт.

13

F44731

PAN

- condensation

1шт.

14

F44783

TUBE

HOSE - 7/16" (11mm) ID x 100" (2540 mm) long, cut from F64508, below, drain, from condensation pan

4шт.

15

214-1404

HOSE CLAMP,#04, 0.25" - 0.62", Type F Worm

CLAMP - hose

4шт.

16

F44790

VALVE

END - drain hose, rubber

4шт.

17

L18337

CABLE TIE,9.95"-12.1" lg

STRAP - tie, 15 inch, nylon

1шт.

19

F96821

BRACKET

- mounting, core

1шт.

20

F96820

PANEL

- mounting, core

1шт.

21

276-1468

SELF-TAP SCREW,Hex Hd, #12 x 1/2"

SCREW - hex head, self-tapping, No. 12 - 24 NC x 1/2", plated

6шт.

22

93-41023

LOCK WASHER,Ext Tooth, #12

WASHER - external tooth lock, No. 12, plated

6шт.

23

L104944

TUBE,0.375" OD

- extension, air conditioning drain, right-hand

1шт.

24

L104945

TUBE,0.375" OD x 17.5" L

- extension, air conditioning drain, left-hand

1шт.

25

515-2295

CLAMP,3/8", Insul, 5/16" Bolt

- drain tubes

4шт.

26

413-512

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

- hex head, 5/16" - 18 NC x 3/4", plated

4шт.

27

495-21038

WASHER,5/16"

4шт.

28

492-11031

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

4шт.

29

425-105

NUT,5/16"-18, G5

- hex, 5/16" - 18 NC, plated

4шт.

30

248-2176

GROMMET,5/16" ID x 1 1/4" Groove Dia

- rear drain hoses, in fenders

2шт.

31

280-1658

SELF-TAP SCREW,Hex Wash Hd, #10 x 1/2"

SCREW - indented hex washer head, slotted, No. 10 - 16 NC x 1/2", black

2шт.

32

493-41020

LOCK WASHER,Ext Tooth, #10

WASHER, LOCK, Ext Tooth, #10

2шт.

F64508X

LARGE HOSE

HOSE - drain, bulk, 7/16" (11 mm) ID x 100 ft (3048 cm) long

1шт.
