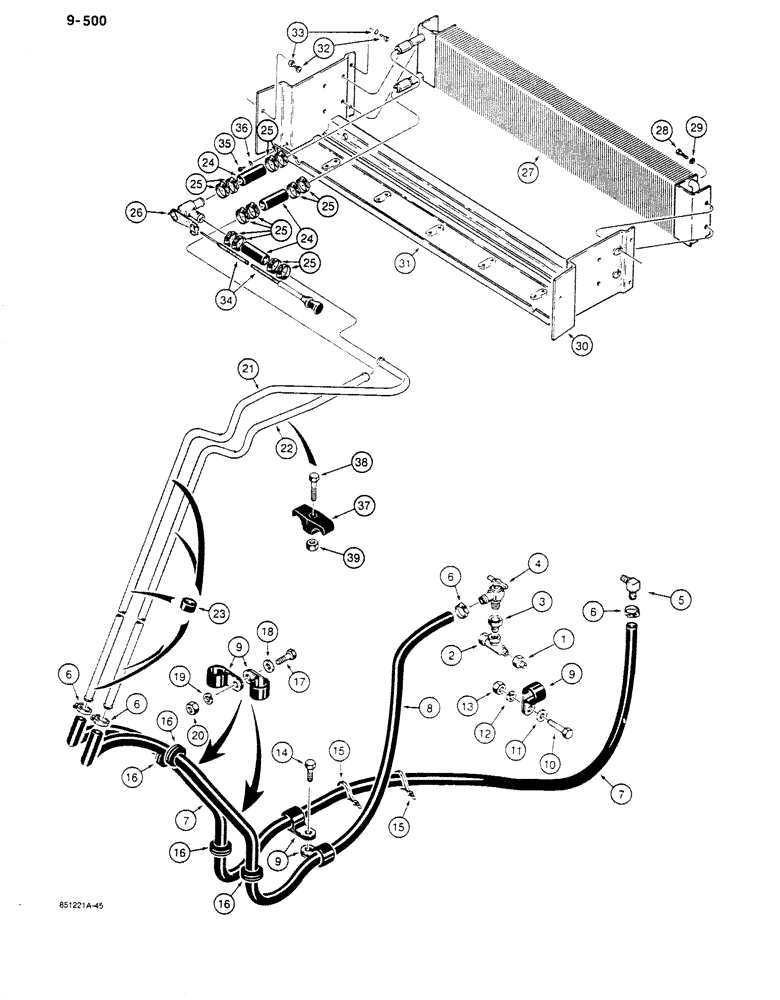

Запчасти Case 680K (9-500) - CAB HEATING SYSTEM (09) - CHASSIS/ATTACHMENTS

1

221-93

REDUCER,Hex, 3/4" x 1/2" NPT

- 3/4" x 1/2" NPT, supply hose, at engine manifold, left- hand side

1шт.

2

221-1693

TEE,Street, 1/2" NPT

- Street, 1/2" NPT

1шт.

3

221-89

REDUCER,Hex, 1/2" x 3/8" NPT

- 1/2" x 3/8" NPT

1шт.

4

301803R1

SHUT-OFF VALVE

VALVE - shutoff, at engine manifold, left-hand side

1шт.

5

864449R1

ELBOW

FITTING - stem, 45 degree, return hose, at engine, right-hand side

1шт.

6

214-253

HOSE CLAMP,#10, 0.56" - 1.06", Type F Worm

CLAMP - hose, adjustable

4шт.

7

D90653

HOSE - 5/8" (16 mm) ID x 147-5/8" (3750 mm) long, cut from A42610 bulk, see below, heater, Serial Range: return-engine

1шт.

8

D76670

LARGE HOSE

HOSE - 5/8" (16 mm) ID x 88" (2235 mm) long, cut from A42610 bulk , see below, heater supply from manifold

1шт.

9

R21385

CLAMP

- P-style, heater hoses

7шт.

10

413-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5

- hex head, 3/8" - 16 NC x 1-1/4", plated

1шт.

11

496-81003

WASHER,10.31mm ID x 26.98mm OD x 3.07mm Thk

- flat, 3/8", hardened, plated

1шт.

12

492-11038

LOCK WASHER,3/8"

1шт.

13

425-106

NUT,3/8"-16, Cl 5

1шт.

14

413-524

BOLT,Hex, 5/16" - 18 x 1-1/2", Gr 5

- hex, 5/16" - 18 NC x 1-1/2", plated

1шт.

15

L18337

CABLE TIE,9.95"-12.1" lg

STRAP - tie, 15 inch, nylon

1шт.

16

A7808

GROMMET

- hoses at floor plate and fender

4шт.

17

413-516

BOLT,Hex, 5/16" - 18 x 1", Gr 5

- hex, 5/16" - 18 NC x 1", plated

2шт.

18

495-21038

WASHER,5/16"

2шт.

19

492-11031

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

2шт.

20

425-105

NUT,5/16"-18, G5

- hex, 5/16" - 18 NC, plated

2шт.

21

F44939

HEATER TUBE

TUBE - return

1шт.

22

F44938

HEATER TUBE

TUBE - supply

1шт.

23

F64347

SEAL

INSULATOR - tubes

5шт.

24

R54967

HEATER HOSE,15.50 mm ID x 70.00 mm

Cut from 97252C1 bulk, See below, Heater tubes to flow control valve and core 15.50 mm ID x 70.00 mm

3шт.

25

214-253

HOSE CLAMP,#10, 0.56" - 1.06", Type F Worm

CLAMP - hose, adjustable

12шт.

26

L74365

VALVE

- flow control, heater

1шт.

27

F45204

HEAT-EXCHANGER

CORE - heater

1шт.

28

413-46

BOLT,Hex, 1/4" - 20 x 3/8", Gr 5

- hex head, 1/4" - 20 NC x 3/8", plated

4шт.

29

492-11025

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

4шт.

30

F96821

BRACKET

- heater core

1шт.

31

F96820

PANEL

- lower, heater core

1шт.

32

276-1468

SELF-TAP SCREW,Hex Hd, #12 x 1/2"

SCREW - hex head self-tapping, No. 12 - 24 NC x 1/2", plated

6шт.

33

492-11012

LOCK WASHER,#12

WASHER, LOCK, , External tooth #12

6шт.

34

REF

INSTRUCTION

CABLE - heater control, see Figure 9-482 or 9-484

1шт.

35

280-1658

SELF-TAP SCREW,Hex Wash Hd, #10 x 1/2"

SCREW - indented hex washer head, slotted, No. 10 - 16 NC x 1/2", black

2шт.

36

493-41020

LOCK WASHER,Ext Tooth, #10

WASHER, LOCK, Ext Tooth, #10

2шт.

37

D120613

CLAMP,20mm ID

- tube

1шт.

38

413-632

BOLT,Hex, 3/8" - 16 x 2", Gr 5

- hex, 3/8" - 16 NC x 2", plated

1шт.

39

231-4116

NUT,3/8"-16, GB

NUT - hex, self-locking, 3/8" - 16 NC, plated

1шт.

97252C1

HOSE,15.875 mm ID x 15240 mm Bulk

1шт.

97252C1

HOSE,15.875 mm ID x 15240 mm Bulk

1шт.
