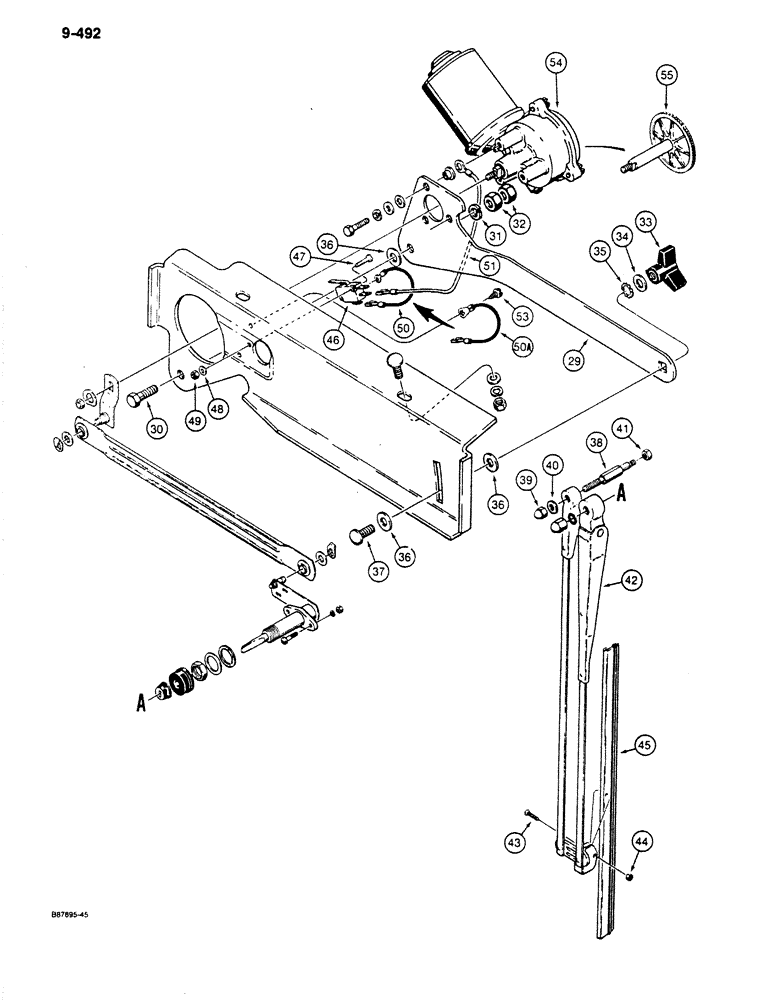

Запчасти Case 680K (9-492) - CAB REAR WINDSHIELD WIPER (09) - CHASSIS/ATTACHMENTS

29

F45268

LEVER

- wiper positioning

1шт.

30

413-516

BOLT,Hex, 5/16" - 18 x 1", Gr 5

- hex, 5/16" - 18 NC x 1", plated

1шт.

31

492-11031

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

1шт.

32

230-4215

NUT,5/16"-18, GA

NUT - hex, self-locking, 5/16" - 18 NC, plated

2шт.

33

F63415

KNOB

- wiper positiong lever

1шт.

34

495-11034

WASHER,5/16", SAE

flat 5/16", SAE

1шт.

35

493-41033

LOCK WASHER,0.33" ID x 0.61" OD x 0.03" Thk

WASHER, LOCK, Ext Tooth, 5/16"

1шт.

36

60-4585T1

SPACER

WASHER - plastic

6шт.

37

111-255

CARRIAGE BOLT,Short NK, 5/16"-18 x 3/4", G5

BOLT, CARRIAGE, Short NK, 5/16"-18 x 3/4", G5

1шт.

38

F43960

STUD

- wiper arm mounting

1шт.

39

129-642

CROWN NUT,Crown, #10-24

- dome, hex, No. 10 - 24 NC, plated

1шт.

40

9421089

WASHER

- flat, No. 10, plated

1шт.

41

425-154

JAM NUT,Jam, 1/4"-28, G5

- hex, jam, 1/4" - 28 NF, plated

1шт.

42

F45284

ARM

- windshield wiper, 17" (432 mm) long, Includes: Ref. 43, 44

1шт.

43

182-567

SCREW,Sltd Pan Hd, #5-40 x 1/2"

- machine, pan head slotted, No. 5 - 14 NC x 1/2", plated, blade attaching

1шт.

44

225-14105

NUT,#5-40

Blade attaching #5-40

1шт.

45

F43574

WIPER BLADE

BLADE - windshield wiper, 14" (356 mm) long

1шт.

46

F43348

SWITCH

- windshield wiper arm return

1шт.

47

182-575

SCREW,Cross Pan Hd, #4-40 x 3/4"

MACHINE SCREW - pan Phillips head, No. 4 - 40 NC x 3/4", plated

2шт.

48

495-31012

WASHER,#4

- flat, No. 4, plated

2шт.

49

131-1409

LOCK NUT,#4-40, GB

NUT, LOCK, #4-40, GB

2шт.

50

F43620

ELECTRICAL WIRE

WIRE - with No. 4 size eyelet, grounds to switch (Ref. 46) using switch mounting hardware, if used

1шт.

50a

F45354

ELECTRICAL WIRE

WIRE - with No. 10 size eyelet, grounds to wiper mounting bracket using Ref. 53 screw, used on models with 24 volt electrical circuit only, wire is part of harness on 12 volt models

1шт.

51

F45272

ELECTRICAL WIRE

WIRE - switch to windshield wiper motor

1шт.

52

F45339

DECAL

- windshield wiper position, not shown, see Figure 9-486

1шт.

53

280-1458

SELF-TAP SCREW,Hex Wash Hd, #10 x 1/2"

SCREW - hex washer head, slotted, self-tapping, No. 10 x 1/2", plated, grounds Ref. 50A wire to bracket (Ref. 1) if used

1шт.

54

129068A3

ELECTRIC MOTOR

MOTOR ASSEMBLY - rear windshield wiper, 12 volt, United Technologies No. 48456-24MO12WC, Includes Ref. 13, 14 and 55

1шт.

55

N13276

PINION

GEAR - plastic drive

1шт.
