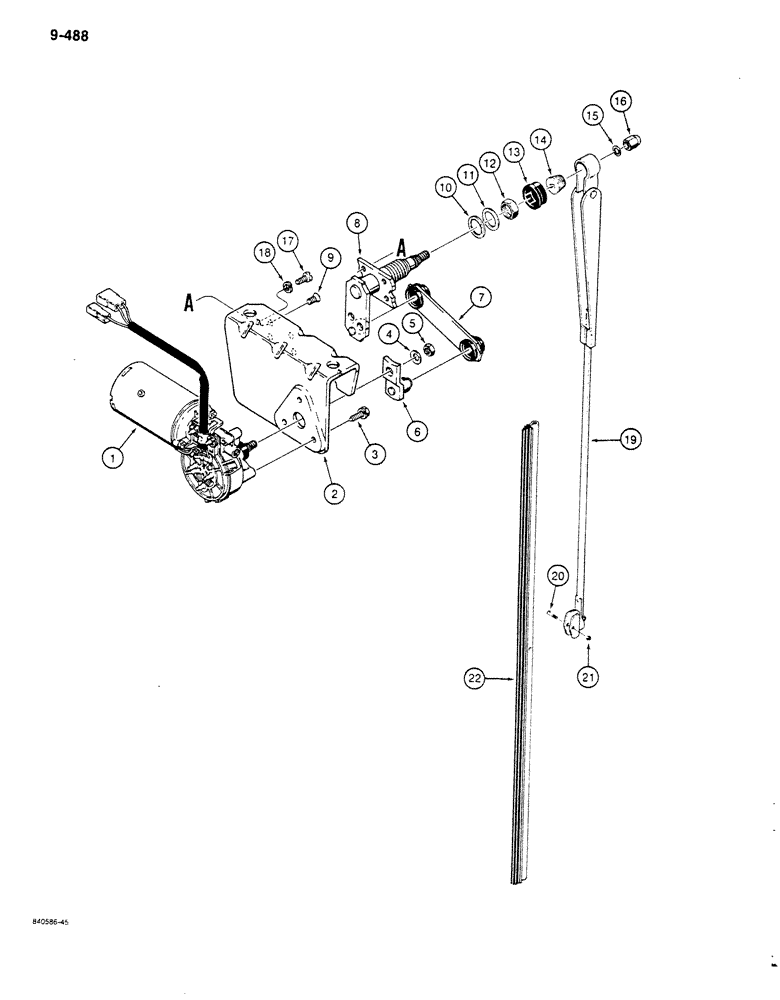

Запчасти Case 680K (9-488) - CAB FRONT WINDSHIELD WIPER, ROBERT BOSCH PARTS (09) - CHASSIS/ATTACHMENTS

REF

INSTRUCTION

MOTOR ASSEMBLY - includes bracket, front windshield wiper, 24 volt, Robert Bosch assembly, for ordering information see page 9-486, Includes: Ref. 1 and 2 - 16

1шт.

A187599

MOTOR

ASSEMBLY - includes bracket, front windshield wiper, 12 volt, Includes: Ref. 1A - 16

1шт.

1

F96892

MOTOR HOUSING

MOTOR - windshield wiper, used on models with 24 volt electrical circuit

1шт.

1a

N14110

WIPER MOTOR

MOTOR - windshield wiper, used on models with 12 volt electrical circuit, not shown

1шт.

2

N8359

SUPPORT

BRACKET - windshield wiper assembly

1шт.

3

N859

SCREW ASSEMBLY - includes lock washer, special, Serial Range: motor-bracket

3шт.

4

N8361

SPRING WASHER

- bent, special

1шт.

5

L113090

NUT - hex, special

1шт.

6

N8360

SUPPORT

ARM - drive

1шт.

7

N9089

DRAG LINK

LINK - wiper

1шт.

8

N9090

WIPER BLADE

SHAFT - pivot

1шт.

9

N8356

SCREW,Phillips Drive, Flat HD, M5 x 8mm

- special, pivot shaft to bracket

4шт.

10

D71417

SPECIAL WASHER

WASHER - fiber

1шт.

11

495-81032

WASHER,18.26mm ID x 31.75mm OD x 1.7mm Thk

- steel

1шт.

12

D71419

NUT

- shaft

1шт.

13

D71420

CAP

- shaft, rubber

1шт.

14

1267556C1

BUTTON

DRIVER - knurled

1шт.

15

493-21039

LOCK WASHER,Int Tooth, 3/8"

WASHER - internal tooth lock, 3/8", plated

1шт.

16

60-6635T1

NUT

- dome, special

1шт.

17

459-1256

SCREW,Slotted Pan Hd, 1/4"-28 x 3/8"

- machine, pan head slotted, 1/4" - 28 NF x 3/8", plated

2шт.

18

492-11025

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

2шт.

19

F44928

WIPER

ARM - windshield wiper, 22" (559 mm) long, Includes: Ref. 20, 21

1шт.

20

182-567

SCREW,Sltd Pan Hd, #5-40 x 1/2"

- machine, pan head slotter, No. 5 - 40 NC x 1/2, plated

1шт.

21

225-14105

NUT,#5-40

1шт.

22

F43938

WIPER BLADE

BLADE - windshield wiper, 22" (559 mm) long

1шт.
