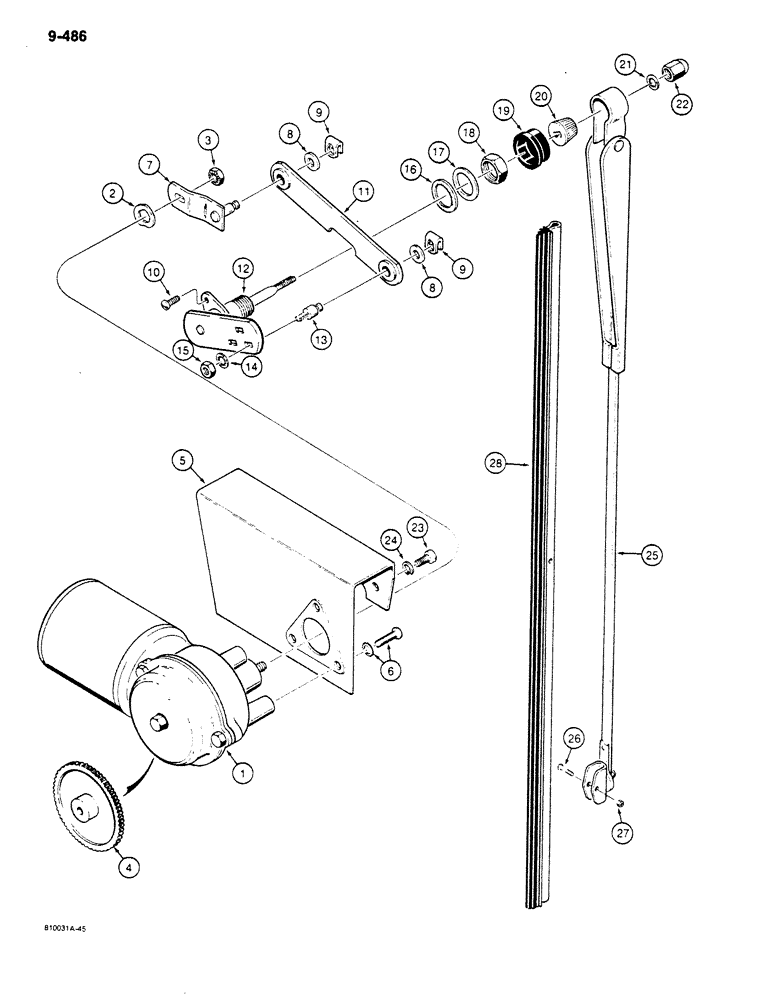

Запчасти Case 680K (9-486) - CAB FRONT WINDSHIELD WIPER (09) - CHASSIS/ATTACHMENTS

141648A3

PACKAGE

MOTOR ASSEMBLY - includes bracket, front windshield wiper, 24 volt, you will receive either American Bosch assembly (parts list below) or Robert Bosch assembly (parts list Figure 9-488), Includes: Ref. 1 - 28

1шт.

141648A3

PACKAGE

MOTOR ASSEMBLY - windshield wiper, American Bosch, Includes: Ref. 1 - 4

1шт.

1

NSS

NOT SOLD SEPARAT

MOTOR - windshield wiper

1шт.

2

D71411

WASHER

- wave

1шт.

2

F44452

LOCK NUT

- hex, lock, 1/4" - 28 NF, plated

1шт.

4

N6029

GEAR

- plastic drive

1шт.

5

D72850

BRACKET

- mounting, motor

1шт.

6

D72849

SCREW

ASSEMBLY - includes lock washer, Serial Range: bracket-motor

3шт.

7

886257C1

ARM

- drive

1шт.

8

A22431

WASHER

- spacer

2шт.

9

D71414

CLIP

- spring

2шт.

10

F44456

SCREW,0.19" - 32 x 3 3/4"

- pivot, Serial Range: shaft-bracket

2шт.

11

D71427

LINK,85.85mm L

- drive arm to pivot shaft

1шт.

N7274

KIT

SHAFT ASSEMBLY - pivot, Includes: Ref. 12 - 22

1шт.

12

NSS

NOT SOLD SEPARAT

SHAFT - pivot

1шт.

13

D73642

PIN

- special

1шт.

14

493-21026

LOCK WASHER,Int Tooth, 1/4"

WASHER - internal tooth lock, 1/4", plated

1шт.

15

425-154

JAM NUT,Jam, 1/4"-28, G5

- hex, jam, 1/4" - 28 NF, plated

1шт.

16

D71417

SPECIAL WASHER

WASHER - fiber

1шт.

17

N3750

WASHER - steel

1шт.

18

D71419

NUT

- shaft

1шт.

19

D71420

CAP

- shaft, rubber

1шт.

20

1267556C1

BUTTON

DRIVER - knurled

1шт.

21

493-21039

LOCK WASHER,Int Tooth, 3/8"

WASHER - internal tooth lock, 3/8", plated

1шт.

22

60-6635T1

NUT

- cap

1шт.

23

459-1256

SCREW,Slotted Pan Hd, 1/4"-28 x 3/8"

- machine, pan head slotted, 1/4" - 28 NF x 3/8", plated

2шт.

24

492-11025

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

2шт.

25

F44928

WIPER

ARM - windshield wiper, 22" (559 mm) long, Includes: Ref. 26, 27

1шт.

26

182-567

SCREW,Sltd Pan Hd, #5-40 x 1/2"

- machine, pan head slotted, No. 5 - 40 NC x 1/2", plated

1шт.

27

225-14105

NUT,#5-40

1шт.

28

F43938

WIPER BLADE

BLADE - windshield wiper, 22" (559 mm) long

1шт.
