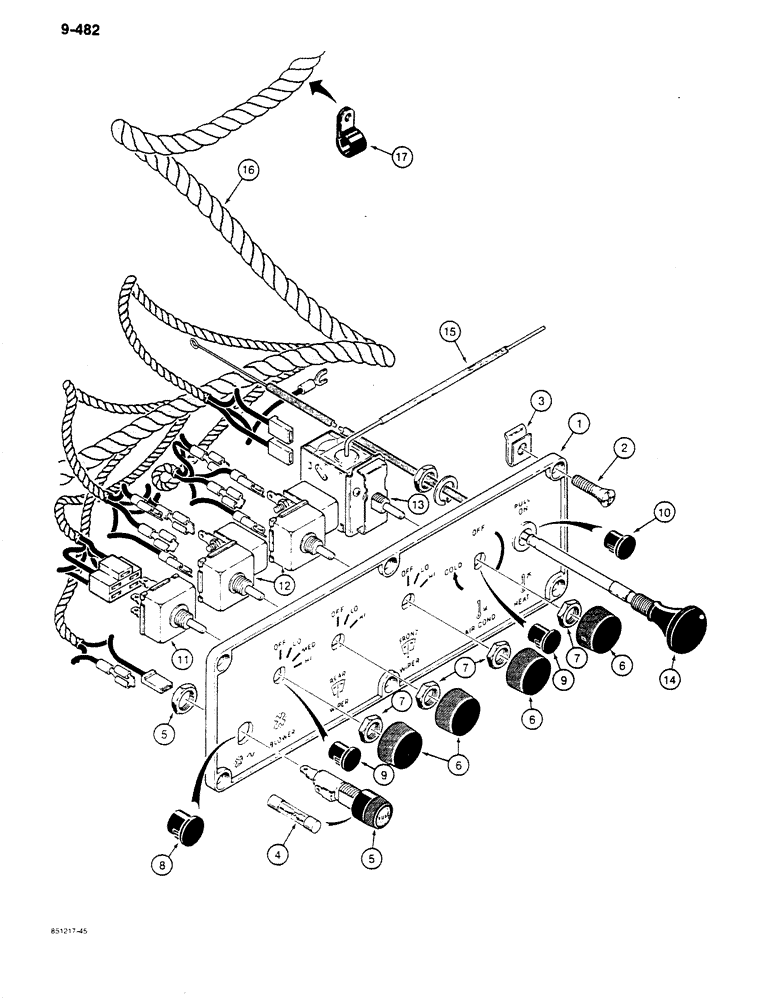

Запчасти Case 680K (9-482) - CAB CONTROL PANEL AND WIRING, USED ON MODELS WITH 24 VOLT ELECTRICAL CIRCUIT (09) - CHASSIS/ATTACHMENTS

1

F44727

PANEL ASSY.

PANEL - control

1шт.

2

265-14512

SELF-TAP SCREW,Cross Oval Hd, #10 x 3/4"

SCREW - oval Phillips head, No. 10 - 16 NC x 3/4", plated

6шт.

3

131-861

SPRING NUT,Tinn, U, #10-24

6шт.

4

223-10

FUSE,10 Amp, Type 3AG

- 10 amperes, 3AG

1шт.

5

376852R91

HOUSING

HOLDER - fuse

1шт.

6

111282C1

KNOB

- switch, use as required (Replaces A42578, 64-107)

2-4шт.

7

A42561

JAM NUT,Hex, 7/16" - 28, RH Thd

- retaining, switch, use as required

2-4шт.

8

353-404

PLUG,Dome, .500" hole, Nylon

If used Dome, .500" hole, Nylon

1шт.

9

353-403

PLUG,Dome, .437" hole, Nylon

If used Dome, .437" hole, Nylon

1-3шт.

10

60-4258T1

PLUG

- nylon, 3/8", if used

1шт.

11

245258A1

ROTARY SWITCH

- blower

1шт.

12

F42841

SWITCH

- front and rear windshield wipers

2шт.

13

L73646

SWITCH

- air conditioner

1шт.

14

1343934C1

CABLE

- heat control (Replaces F44755)

1шт.

15

F44879

TUBE,0.12" ID x 0.17" OD x 20" L

- from air conditioner switch

1шт.

16

F45224

HARNESS

- cab

1шт.

17

515-23159

CLAMP,5/8", Insul, 3/8" Bolt

- cab harness at operators compartment frame, front, for mounting hardware see Figure 9-464, Ref. 2 - 5

1шт.
