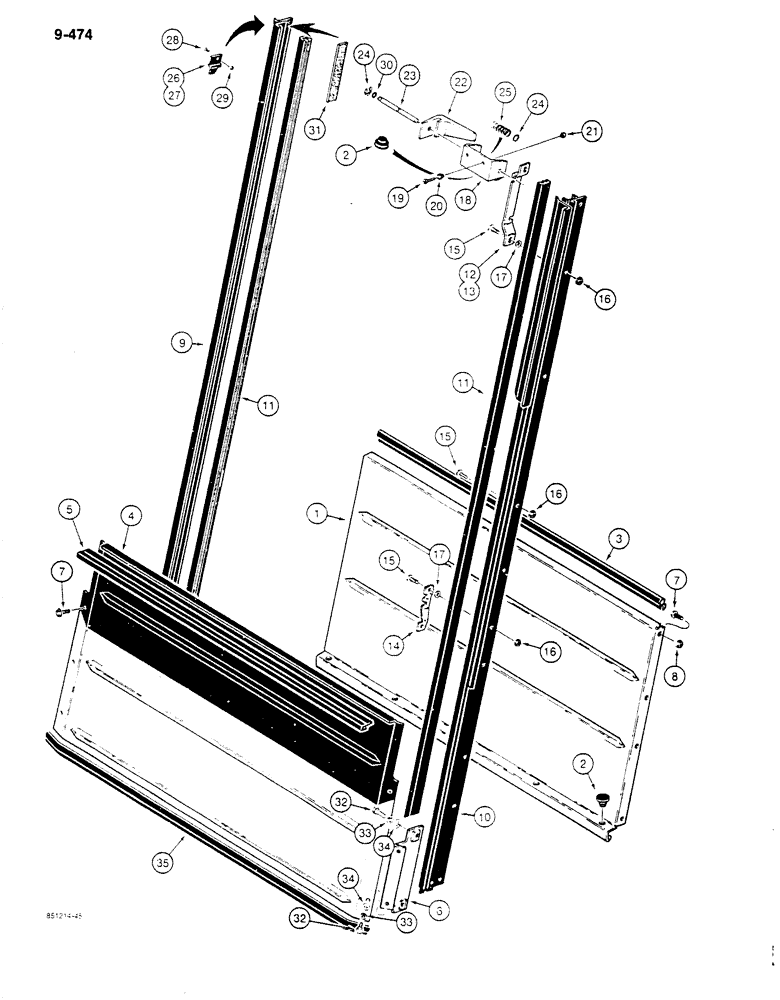

Запчасти Case 680K (9-474) - CAB REAR WINDOW (09) - CHASSIS/ATTACHMENTS

1

F42920

PANEL ASSY.

PANEL - rear window, inner

1шт.

2

L60224

BUMPER

- rubber, rear window

7шт.

3

F42780

SEAL

- 32-1/8" (816 mm) long, cut from F43086 bulk, see below, inner panel, rear window

1шт.

4

F95709

PANEL - rear window, outer, includes decals

1шт.

5

F44711

SEAL

- outer panel, rear window

1шт.

6

F96836

BRACKET

- support, outer panel

2шт.

7

458-512

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

6шт.

8

13-937

NUT - hex, flange type, special locking, 5/16" - 18 NC, plated

4шт.

9

F96749

BRACKET

- mounting, left-hand

1шт.

10

F96748

BRACKET

- mounting, right-hand

1шт.

11

F44692

CHANNEL

- rear windows

2шт.

12

F44830

BRACKET

- window retaining, top, right-hand

1шт.

13

F44831

BRACKET

- window retaining, top, left-hand

1шт.

14

F44702

BRACKET

- window retaining, lower

2шт.

15

458-412

BOLT,Hex, 1/4" - 20 x 3/4", Gr 5

- hex flange head, 1/4" - 20 NC x 3/4", plated

14шт.

16

231-5344

FLANGE NUT,Flg, 1/4"-20

NUT, LOCK, Flg, 1/4"-20

14шт.

17

495-11028

WASHER,1/4", SAE

Used as a shim, if used 1/4", SAE

1шт.

18

F45111

LATCH

BRACKET - lift, window

4шт.

19

442-11012

SCREW,Cross Oval Hd, #10-24 x 3/4"

- machine, oval Phillips head, No, 10 - 24 NC x 3/4", plated

8шт.

20

F64198

BUMPER,4.98mm ID x 7.92mm OD x 10.21mm L

- lift bracket mounting

8шт.

21

230-42409

NUT,#10-24, GA

NUT - hex, self-locking, No. 10 - 24 NC, plated

8шт.

22

F45110

LEVER

- window lift

4шт.

23

F44699

PIN

- window latch

4шт.

24

F44340

RING - spring retaining

8шт.

25

F62245

SPRING

- window release

4шт.

26

F45084

RETAINER

- window, up position, left-hand

1шт.

27

F45083

RETAINER

- window, up position, right-hand

1шт.

28

458-412

BOLT,Hex, 1/4" - 20 x 3/4", Gr 5

- hex flange head, 1/4" - 20 NC x 3/4", plated

2шт.

29

231-5344

FLANGE NUT,Flg, 1/4"-20

NUT, LOCK, Flg, 1/4"-20

2шт.

31

NSS

NOT SOLD SEPARAT

STRIP - foam, behind window channel

2шт.

32

413-516

BOLT,Hex, 5/16" - 18 x 1", Gr 5

- hex, 5/16" - 18 NC x 1", plated, if used

8шт.

33

492-11031

LOCK WASHER,5/16"

WASHER, LOCK, , if used 5/16"

8шт.

34

495-21038

WASHER,5/16"

If used 5/16"

8шт.

24a

458-512

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

Replaces Ref. 32, 33 and 34 on some models, Not shown Hex Flg, 5/16"-18 x 3/4", G5, Full Thd

8шт.

35

REF

INSTRUCTION

SEAL - base of rear window frame to floor plate, 33" (838 mm) long, cut from l107724 seal, see below

1шт.

F43086X

SEAL, GLASS

SEAL - bulk roll, 25 ft

1шт.

L107724

SEAL

SEAL - strip, 48-1/2" (1232 mm) long

1шт.

30

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

6-1, 90 Duro, .468" ID x .078" Thk, Window latch pin, if used

4шт.
