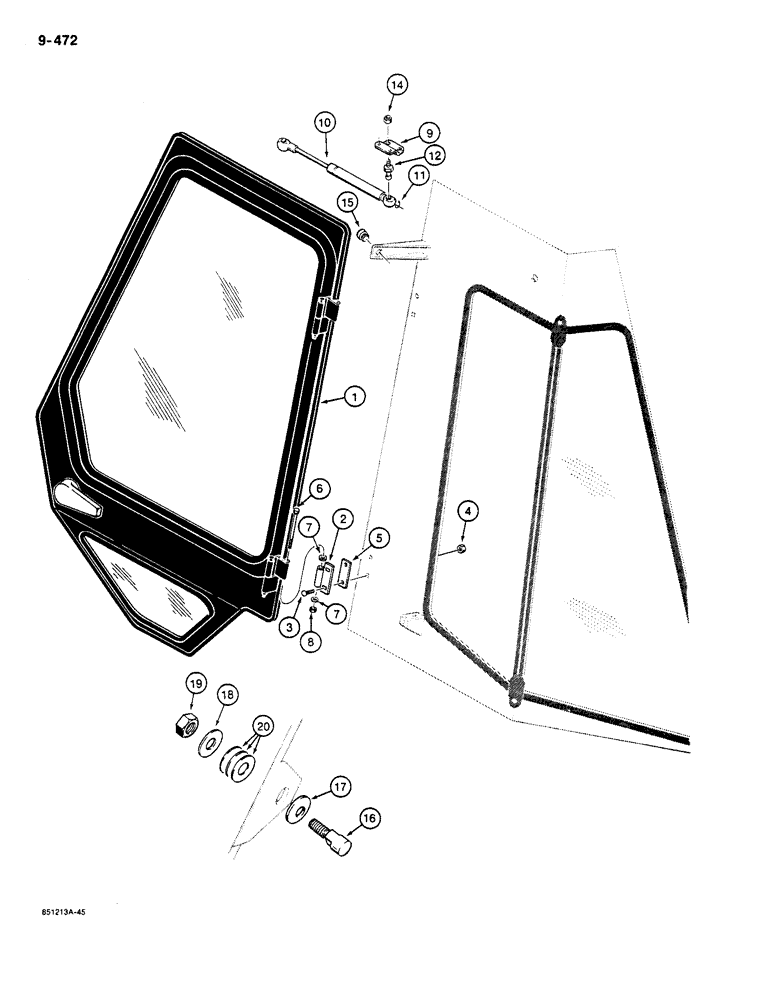

Запчасти Case 680K (9-472) - CAB DOOR MOUNTING (09) - CHASSIS/ATTACHMENTS

1

REF

INSTRUCTION

DOOR - cab, see Figure 9-470

1шт.

2

F44868

HINGE

- door

2шт.

3

111-255

CARRIAGE BOLT,Short NK, 5/16"-18 x 3/4", G5

BOLT, CARRIAGE, Short NK, 5/16"-18 x 3/4", G5

4шт.

4

230-4215

NUT,5/16"-18, GA

NUT - hex, self-locking, 5/16" - 18 NC, plated

4шт.

5

F43257

PLATE

SPACER - door hinge

2шт.

6

413-672

BOLT,Hex, 3/8" - 16 x 4-1/2", Gr 5

- hex head, 3/8" - 16 NC x 4-1/2", plated

2шт.

7

60-4585T1

SPACER

WASHER - thrust, hinge

8шт.

8

131-203

LOCK NUT,3/8"-16, GB, LH

NUT - hex, self-locking, 3/8" - 16 NC, plated

2шт.

9

F44873

BRACKET

- mounting, door cylinder, welds to cab frame

1шт.

10

F44881

CYLINDER ASSY.

CYLINDER - door

1шт.

11

1-4713

CLIP

- lock, ball stud

2шт.

12

F44882

BALL

STUD - ball, cylinder

2шт.

14

230-4215

NUT,5/16"-18, GA

NUT - hex, self-locking, 5/16" - 18 NC, plated

2шт.

15

L60224

BUMPER

- rubber, door stop

1шт.

16

R51754

STRIKER

STRIKER - door latch

1шт.

17

F44748

SPRING WASHER

SPRING - Belleville, door striker

1шт.

18

495-81148

WASHER,7/16" x 1 1/4" x .134"

- flat 7/16", plated

1шт.

19

230-4217

LOCK NUT,7/16"-14, GA

NUT - hex, self-locking, 7/16" - 14 NC, plated

1шт.

20

495-81150

WASHER,0.44" ID x 1.25" OD x 0.07" Thk

- flat, 3/8" bolt size, 7/16" ID x 1-1/4" OD x 1/16" thick, plated

3шт.
