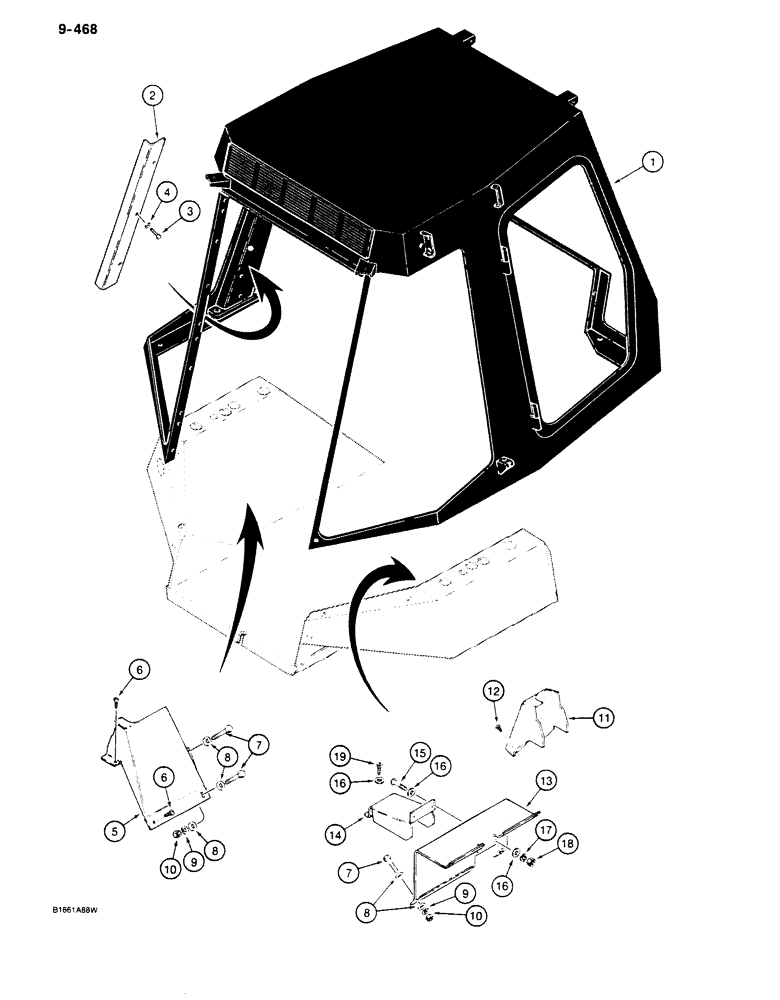

Запчасти Case 680K (9-468) - HEATING AND AIR CONDITIONING LINE COVERS (09) - CHASSIS/ATTACHMENTS

1

NSS

NOT SOLD SEPARAT

FRAME - cab, see Figure 9-466

1шт.

2

F44766

COVER

- heating and air conditioning lines, upper

2шт.

3

413-412

BOLT,Hex, 1/4" - 20 x 3/4", Gr 5

- hex head, 1/4" - 20 NC x 3/4", plated, Center hole only

2шт.

4

495-11028

WASHER,1/4", SAE

Center hole only 1/4", SAE

2шт.

5

L111759

COVER ASSY

COVER - left-hand fender

1шт.

6

187-814

SELF-TAP SCREW,Slotted Pan Hd, #6 x 3/8"

SCREW - pan head, self-tapping, No. 6 - 20 NC x 3/8"

2шт.

7

413-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5

- hex head, 3/8" - 16 NC x 1", plated

6шт.

8

495-21044

WASHER,3/8"

12шт.

9

192-21

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

6шт.

10

425-106

NUT,3/8"-16, Cl 5

6шт.

11

L106509

COVER ASSY

COVER - air conditioning tubes, right-hand fender, upper

1шт.

12

263-5035

SELF-TAP SCREW,Slotted Pan Hd, #6 x 5/16"

SCREW - pan head, self-tapping, No. 6 - 20 NC x 3/16"

4шт.

13

L104403

COVER ASSY

COVER - tool box mounting

1шт.

14

L104388

COVER ASSY

COVER - air conditioning tubes, right-hand fender, lower

1шт.

15

353669X1

SCREW

BOLT - hex head, 1/4" - 20 NC x 1", plated

2шт.

16

95-21031

WASHER,1/4"

- flat, , plated 1/4"

5шт.

17

492-11025

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

2шт.

18

425-104

NUT,1/4"-20, Cl 5

- hex, 1/4" - 20 NC, plated

2шт.

19

187-1514

SELF-TAP SCREW,Hex Hd, 1/4" x 5/8"

SCREW - hex head, self-tapping, 1/4" - 20 x 5/8", plated

1шт.
