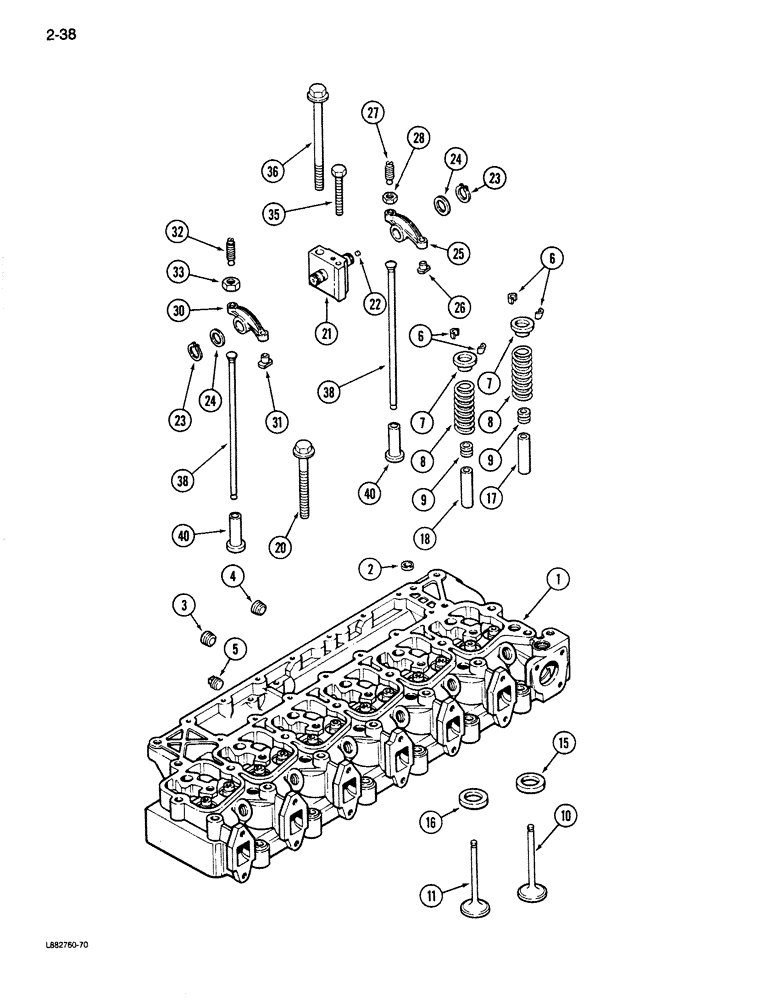

Запчасти Case 680K (2-38) - CYLINDER AND VALVE MECHANISM, 6-590 ENGINE (02) - ENGINE

J910276

HEAD (CYLINDER)

HEAD ASSEMBLY - cylinder (Remanufactured) (North America Only)

1шт.

JC910276

CORE-CYLINDER HEAD

RETURN NUMBER - Use this part number to return cylinder head core for credit

1шт.

J910276

HEAD (CYLINDER)

HEAD ASSEMBLY - cylinder (New) (Replaces J906455) Includes: Ref. 1 - 11

1шт.

1

J913391

HEAD (CYLINDER)

HEAD ASSEMBLY - cylinder (Replaces J904575) Includes: Ref. 2

1шт.

2

A77783

PLUG

- expansion, 21 mm OD

5шт.

3

G3037478

PLUG

- hex socket pipe, 1/2-14 PT

5шт.

4

J906619

PLUG,1/8" - 27

- hex socket pipe, 1/8-27 PT

2шт.

5

A77505

PLUG

- hex socket pipe, 1/2-18 inch PT

2шт.

6

L6126635

HALF BEARING

KEEPER - valve

24шт.

7

J935038

RETAINER

- valve spring

12шт.

8

J926700

VALVE SPRING

SPRING - valve

12шт.

9

J921640

SEAL

- valve

12шт.

10

J920867

VALVE

- intake

6шт.

11

J920868

VALVE

- exhaust

6шт.

15

J906854

SEAT, VALVE

SEAT - insert, intake valve (Service repair only)

6шт.

16

J904105

SEAT, VALVE

SEAT - insert, exhaust valve (Service repair only)

6шт.

17

J904408

GUIDE

- valve, intake (Service repair only)

6шт.

18

J904409

GUIDE

- valve, exhaust (Service repair only)

6шт.

20

J920779

BOLT,Flng, M12 x 1.75 x 70mm, Cl 12.9

BOLT, SPECIAL - hex flange head, M12 x 1.75 x 70 mm

6шт.

20

J920780

BOLT,Flng, M12 x 1.75 x 120mm, Cl 12.9

- hex flange head, M12 x 1.75 x 120 mm

14шт.

21

J922488

SUPPORT

AND SHAFT ASSEMBLY - rocker arm (Replaces J907048) Includes: Ref. 22

6шт.

22

J907555

PLUG

- rocker arm shaft, 1/4-18 PT

1шт.

23

J900242

SNAP RING

RING - retaining, rocker arm

12шт.

24

J900245

WASHER

- thrust, rocker arm

12шт.

25

L5242745

ROCKER

ARM ASSEMBLY - rocker, intake (Replaces J900540) Includes: Ref. 26

6шт.

26

NSS

NOT SOLD SEPARAT

INSERT - rocker arm

1шт.

27

J937438

ADJUSTMENT SCREW,Hex Skt, 3/8" - 24 x 33mm, Adj, Ball Point

SCREW - slotted set adjusting, 3/8 inch NF x 40 mm

1шт.

28

129-123

NUT,3/8"-24, G5

1шт.

30

M5242746

ROCKER

ARM ASSEMBLY - rocker, exhaust (Replaces J900539) Includes: Ref. 31

6шт.

31

NSS

NOT SOLD SEPARAT

INSERT - rocker arm

1шт.

32

J937438

ADJUSTMENT SCREW,Hex Skt, 3/8" - 24 x 33mm, Adj, Ball Point

SCREW - slotted set adjusting, 3/8 inch NF x 40 mm

1шт.

33

129-123

NUT,3/8"-24, G5

1шт.

35

814-8075

BOLT,Hex, M8 x 1.25 x 75mm, Cl 8.8

6шт.

36

J920781

BOLT,Flng, M12 x 1.75 x 180mm, Cl 12.9

BOLT, SPECIAL - hex flange head, M12 x 1.75 x 180 mm

6шт.

38

J904679

PUSH ROD

ROD - push, rocker arm

12шт.

40

J931623

TAPPET

- valve, push rod

12шт.
