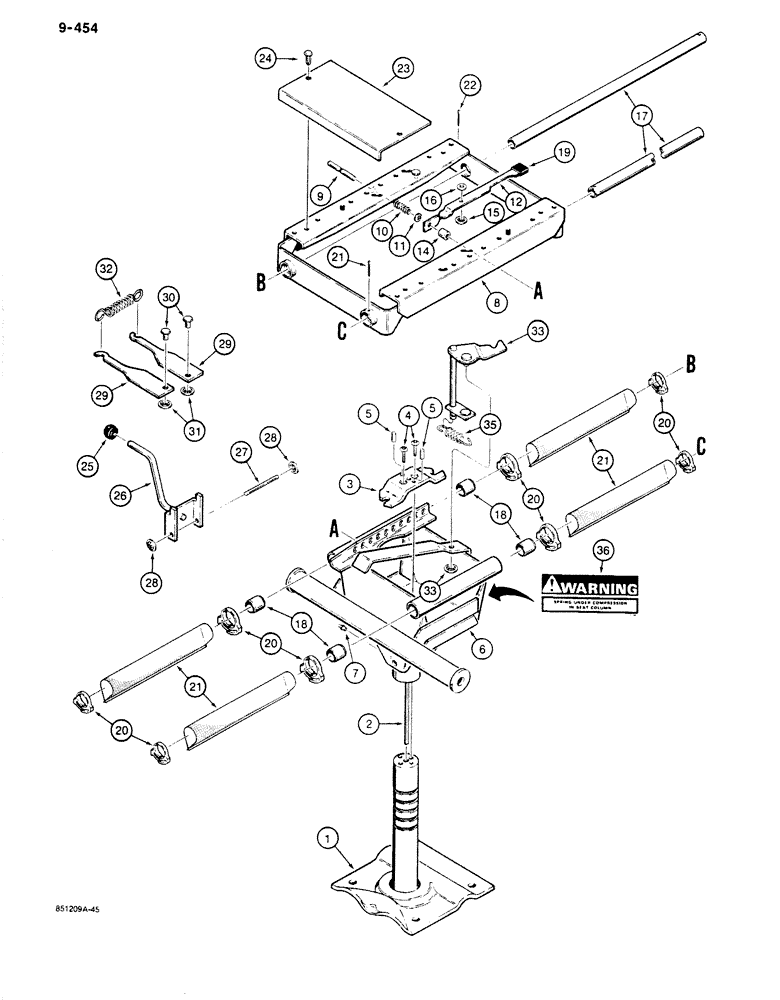

Запчасти Case 680K (9-454) - D124104 STANDARD SEAT SUPPORT (09) - CHASSIS/ATTACHMENTS

D147652

PEDESTAL

SUPPORT ASSEMBLY - seat, with tube for seat belt mounting, Includes: Ref. 1 - 36

1шт.

1

N8385

BASE

- seat support assembly

1шт.

2

N8340

SHAFT

- seat support

1шт.

3

N8339

LATCH

- seat swivel

1шт.

4

461-7318

HEX SOC SCREW,Btn Hd, 5/16"-18 x 1/2"

BOLT - hex socket button head, 5/16" - 18 NC x 1/2", plated, grade 8

2шт.

5

435-11012

GROOVED PIN,5/16" x 3/4", Type A

Pin, Grooved, , full taper 5/16" x 3/4", Type A

2шт.

6

N6947

SUPPORT TUBE

RISER - seat support

1шт.

7

219-16

LUBE NIPPLE,5/16" NPTF

FITTING - grease, straight, 5/16" drive type

1шт.

8

NSS

NOT SOLD SEPARAT

SLIDE - seat

1шт.

9

N6958

PIN

- slide release

1шт.

10

N8342

SPRING

- slide release

1шт.

11

100-3337

SNAP RING,E-Type, 0.3" OD

Ring, Retaining, #37, .300" Dia, E-Type

1шт.

12

N6956

LEVER

HANDLE - slide release

1шт.

14

N6957

SPACER

- handle

1шт.

15

131-433

PUSH-ON NUT,Push, 1/4"

NUT - push on type, 1/4"

1шт.

16

95-21031

WASHER,1/4"

- flat, , plated 1/4"

1шт.

17

N6943

TUBE,1.006" OD x 21.1" L

- slide

2шт.

18

N6950

TUBE,1.015" ID x 1.1905" OD x 1"

BEARING - slide tube

4шт.

19

N13687

GRIP

- vinyl

1шт.

20

N14105

CLAMP

- plastic

8шт.

21

D147877

BELLOWS

- slide tube

4шт.

22

432-824

COTTER PIN,1/8" x 1 1/2"

PIN, SPLIT (COTTER), 1/8" x 1-1/2"

2шт.

23

N6969

BRACKET

- seat

1шт.

24

N6944

CLIP

- bracket, nylon

2шт.

N6934

TUBE

KIT - handle, seat height adjustment, Includes: Ref. 25 - 29

1шт.

25

NSS

NOT SOLD SEPARAT

KNOB - handle

1шт.

26

NSS

NOT SOLD SEPARAT

HANDLE - seat height adjustment

1шт.

27

NSS

NOT SOLD SEPARAT

SHAFT - handle

1шт.

28

131-434

LOCK NUT,Push, 5/16"

NUT - push on type, 5/16"

2шт.

D147652

PEDESTAL

SUPPORT ASSEMBLY - seat, with tube for seat belt mounting, continued from Figure 9-454

1шт.

29

N6963

LATCH

- seat height adjustment

2шт.

30

N6964

PIN,9.53mm OD x 19.05mm L

- latch

2шт.

31

131-435

PUSH-ON NUT,Push, 3/8"

NUT - push on type, 3/8"

2шт.

32

N6970

CATCH

SPRING - latch, seat height adjustment

1шт.

33

D147776

LATCH

LEVER - control, seat swivel

1шт.

34

131-435

PUSH-ON NUT,Push, 3/8"

NUT - push on type, 3/8"

1шт.

35

D145790

SPRING KIT

SPRING - seat swivel, 2-3/8" (60 mm) long

1шт.

36

321-6774

WARNING DECAL

DECAL, WARNING, Seat spring compression, See Figure 9-518

1шт.
