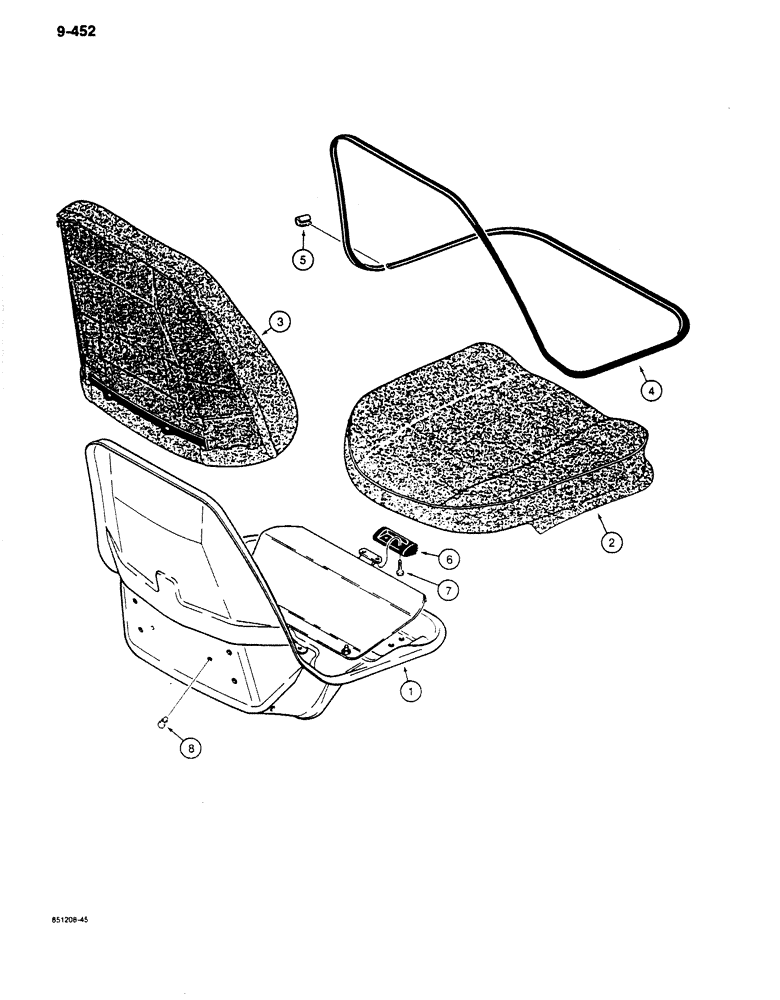

Запчасти Case 680K (9-452) - SEAT ASSEMBLY, S127367 SUSPENSION SEAT ASSEMBLY (09) - CHASSIS/ATTACHMENTS

D125246

SEAT

ASSEMBLY - suspension, vinyl, three-position adjustable seat cushion, for seat support see Figure 9-458, for seat adjuster assembly, see Figure 9-462, Includes: Ref. 1 - 8

1шт.

1

NSS

NOT SOLD SEPARAT

SHELL - seat

1шт.

2

N9258

CUSHION ASSY.

CUSHION - seat, includes N7802 clip kit, see below

1шт.

3

N9259

BACKREST

- seat, includes N7802 clip kit, see below

1шт.

4

176924A1

SET OF PARTS

RETAINER - strip, brown, Serial Range: cushion-shell

1шт.

5

NSS

NOT SOLD SEPARAT

CLIP - retainer, order N7802 clip kit, see below

1шт.

6

N9239

HANDLE

- cushion adjustment

1шт.

7

182-591

SCREW,Cross Pan Hd, 1/4"-20 x 7/8"

- machine, pan Phillips head, 1/4" - 20 NC x 7/8", plated

2шт.

8

NSS

NOT SOLD SEPARAT

RIVET - plastic

2шт.

345-44

ADHESIVE

- pad retaining, in a can, 23 fl ounces (680 ml), not shown

1шт.

N7802

CLIP

KIT - clip, includes Ref. 5 clip plus 6 additional narrow clips

1шт.
