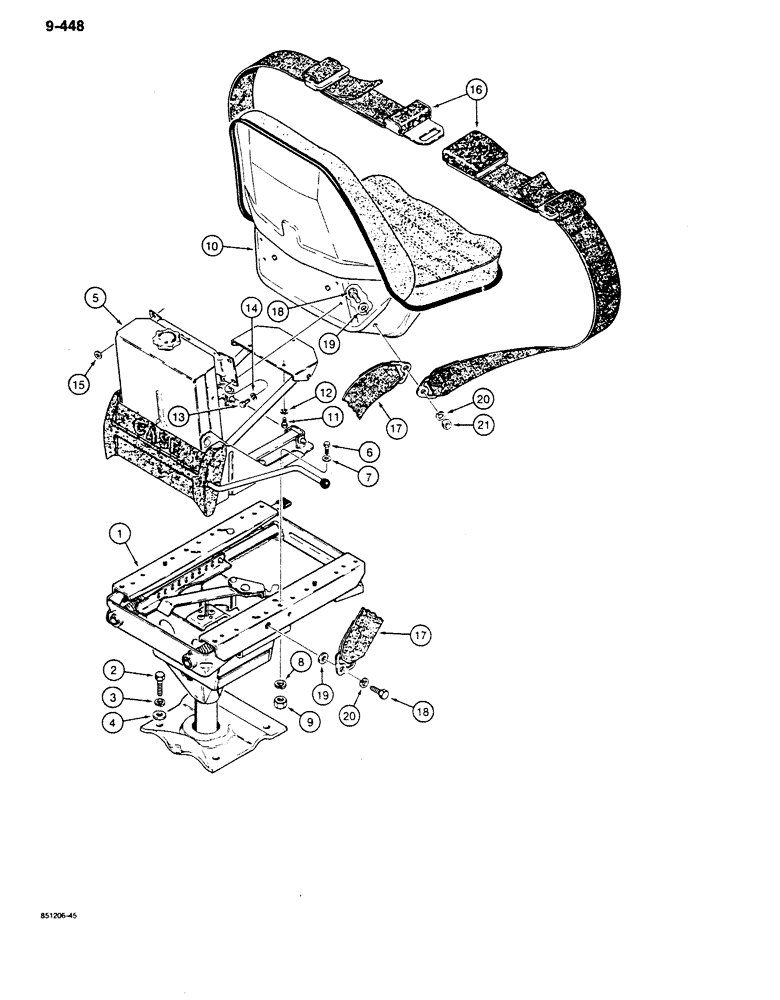

Запчасти Case 680K (9-448) - SUSPENSION SEAT AND MOUNTING PARTS (09) - CHASSIS/ATTACHMENTS

1

D147640

PEDESTAL

SUPPORT ASSEMBLY - suspension seat, parts list Figure 9-458

1шт.

2

326-832

BOLT,Hex, 1/2" - 13 x 2", Gr 8

4шт.

3

80679

LOCK WASHER,1/20.507 CST ZND

WASHER, LOCK, 1/2"

4шт.

4

95-21056

WASHER,1/2"

- flat, , plated 1/2"

4шт.

5

D127368

ADJUSTER

ASSEMBLY - suspension seat, parts list Figure 9-462

1шт.

6

413-516

BOLT,Hex, 5/16" - 18 x 1", Gr 5

- hex, 5/16" - 18 NC x 1", plated

4шт.

7

495-21038

WASHER,5/16"

4шт.

8

492-11031

LOCK WASHER,5/16"

WASHER, LOCK, , if used 5/16"

4шт.

9

425-105

NUT,5/16"-18, G5

- hex, 5/16" - 18 NC, plated, If used

4шт.

10

D125246

SEAT

ASSEMBLY - suspension, vinyl, parts list Figure 9-452

1шт.

11

88574

BOLT,Hex, 5/16" - 18 x 1/2", Gr 5, Full Thd

3шт.

12

492-11031

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

3шт.

13

88574

BOLT,Hex, 5/16" - 18 x 1/2", Gr 5, Full Thd

4шт.

14

492-11031

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

4шт.

15

495-21038

WASHER,5/16"

LH side only 5/16"

2шт.

16

R58418

SAFETY BELT ,3.00" W

3.00" W

1шт.

17

D127382

SAFETY BELT

SAFETY BELT, Support to seat, 9-3/8" (238 mm) long

2шт.

18

414-716

BOLT,Hex, 7/16" - 20 x 1", Gr 5

4шт.

19

495-21050

WASHER,7/16"

- flat, , plated 7/16"

4шт.

20

492-11044

LOCK WASHER,7/16"

WASHER, LOCK, 7/16"

4шт.

21

50456

NUT,7/16"-20, G5

NUT - hex, 7/16" - 20 NF, plated

2шт.
