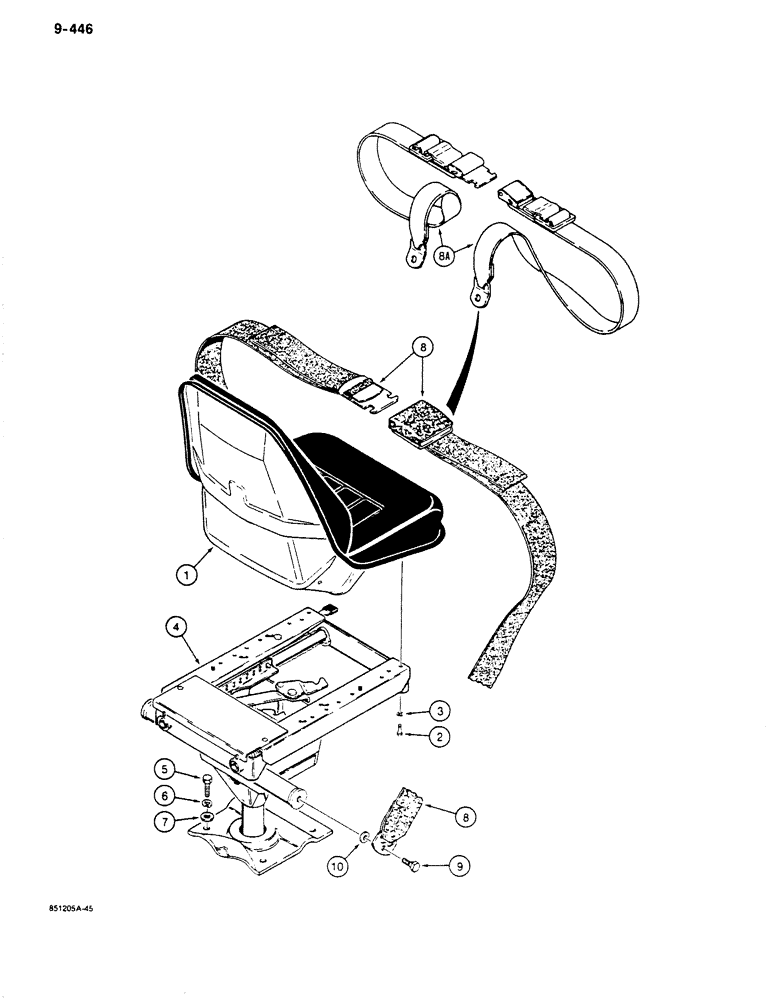

Запчасти Case 680K (9-446) - STANDARD SEAT AND MOUNTING PARTS (09) - CHASSIS/ATTACHMENTS

1

D123196

SEAT ASSY.

SEAT ASSEMBLY - standard, parts list Figure 9-450

1шт.

2

413-512

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

- hex head, 5/16" - 18 NC x 3/4", plated

4шт.

3

492-11031

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

4шт.

4

D147652

PEDESTAL

SUPPORT ASSEMBLY - standard seat, with tube for seat belt mounting, parts list Figure 9-454

1шт.

5

326-832

BOLT,Hex, 1/2" - 13 x 2", Gr 8

4шт.

6

80679

LOCK WASHER,1/20.507 CST ZND

WASHER, LOCK, 1/2"

4шт.

7

95-21056

WASHER,1/2"

- flat, , plated 1/2"

4шт.

8

L117001

SAFETY BELT ,1.80" W

No longer available, Order L117001 seat belt 1.80" W

1шт.

8a

L117001

SAFETY BELT ,1.80" W

If used 1.80" W

1шт.

8a

D150007

SAFETY BELT

BELT - seat, 3" (76 mm) wide, if used

1шт.

9

F42236

STEP BOLT

BOLT - special

2шт.

10

196-7

WASHER - flat, 7/16", hardened, plated

2шт.
