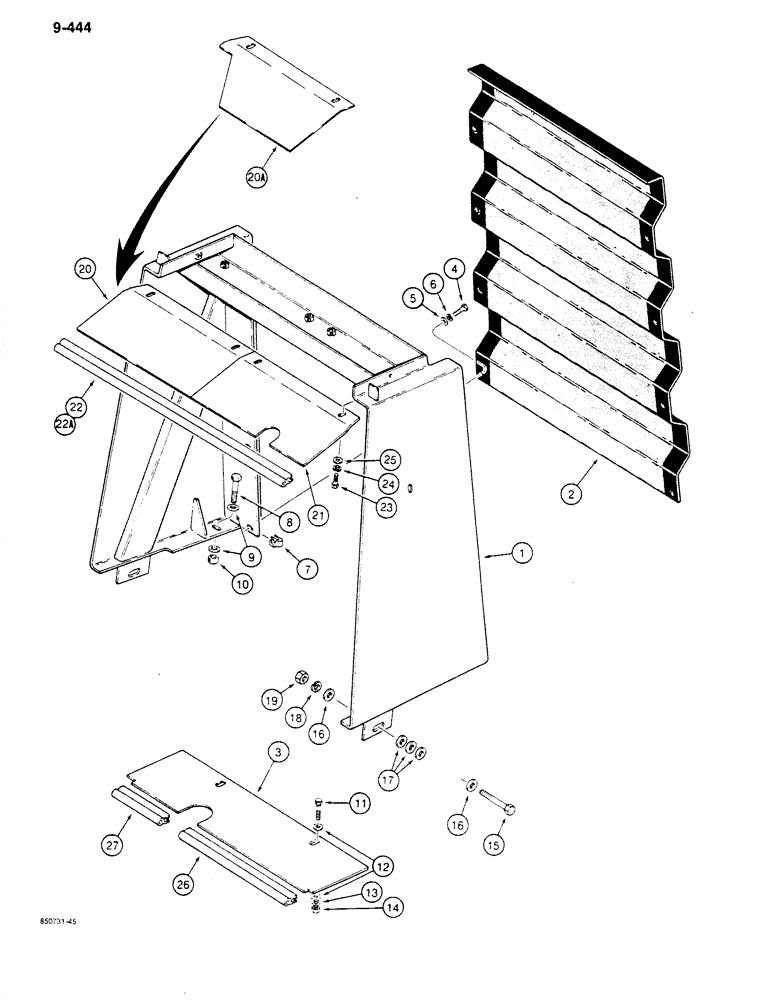

Запчасти Case 680K (9-444) - RADIATOR GUARD AND GRILLE (09) - CHASSIS/ATTACHMENTS

1

L110837

GUARD ASSY.

GUARD - radiator

1шт.

2

L102717

GRILLE ASSY

GRILLE - radiator guard

1шт.

3

D128683

BAFFLE

- lower

1шт.

4

413-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5

- hex head, 3/8" - 16 NC x 1", plated

8шт.

5

495-21044

WASHER,3/8"

8шт.

6

492-11038

LOCK WASHER,3/8"

8шт.

7

131-851

SPRING NUT,Ret, J, 3/8"-16

8шт.

8

413-1028

BOLT,Hex, 5/8" - 11 x 1-3/4", Gr 5

- hex head, 5/8" - 11 NC x 1-3/4", plated

2шт.

9

496-81000

WASHER,25/32" x 1 3/8" x .134", HDN

- flat, 5/8", hardened, plated

4шт.

10

425-1010

NUT,5/8"-11, G5

2шт.

11

413-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5

- hex head, 3/8" - 16 NC x 1-1/4", plated

2шт.

12

495-21044

WASHER,3/8"

4шт.

13

492-11038

LOCK WASHER,3/8"

2шт.

14

425-106

NUT,3/8"-16, Cl 5

2шт.

15

413-1032

BOLT,Hex, 5/8" - 11 x 2", Gr 5

- hex head, 5/8" - 11 NC x 2", plated

2шт.

16

495-21069

WASHER,5/8"

- flat, , plated 5/8"

4шт.

17

495-21069

WASHER,5/8"

- flat, , plated 5/8"

1шт.

18

92-11062

LOCK WASHER,5/8"

WASHER, LOCK, , If used 5/8"

2шт.

19

425-1010

NUT,5/8"-11, G5

2шт.

20

D129410

BAFFLE

- upper, left-hand, used on models without air-conditioning

1шт.

20a

D129409

BAFFLE

- upper, left-hand, used on models with air conditioning

1шт.

21

D128682

BAFFLE

- upper, right- hand

1шт.

22

D128750

SEAL ASSY.

SEAL - 25" (635 mm) long, upper baffles, used on models without air conditioning, may replace 3-piece seal used in production on some models

1шт.

22a

L79437

SEAL

- 8" (203 mm) long, upper baffles, cut to required length from D80646 bulk seal, see below, used on models with air conditioning

1шт.

23

413-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5

- hex head, 3/8" - 16 NC x 1-1/4", plated

4шт.

24

492-11038

LOCK WASHER,3/8"

4шт.

25

495-21044

WASHER,3/8"

4шт.

26

D129412

SEAL

- 11" (279 mm) long, right-hand, cut to required length from D128750 seal, see below

1шт.

27

D129411

SEAL

- 7-5/16" (185 mm) long, left-hand, cut to required length from D128750 seal, see below

1шт.

D80646

SEAL

- 50 ft (1524 cm) long, bulk

1шт.

D128750

SEAL ASSY.

SEAL - 25" (635 mm) long, bulk

1шт.
