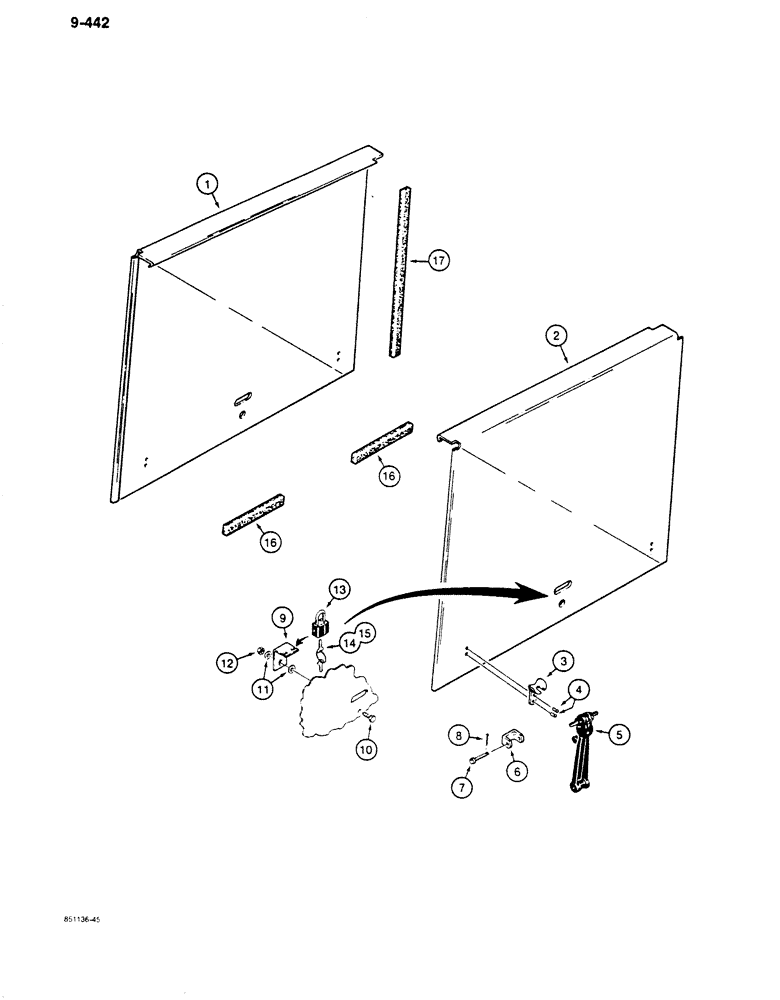

Запчасти Case 680K (9-442) - ENGINE SIDE PANELS (09) - CHASSIS/ATTACHMENTS

1

L108263

PANEL ASSY.

PANEL - side, engine, left-hand

1шт.

2

L111418

PANEL ASSY.

PANEL - side, engine, right-hand

1шт.

3

L105124

LATCH HOOK

BRACKET - side panel lock

4шт.

4

151-539

RIVET,Pop, 3/16" x .450"

- pop, 3/16"

8шт.

5

L105100

HOOK

- side panel

4шт.

6

2-4683T2

BRACKET

- anchor, Serial Range: welded-chassis

4шт.

7

T11232

PIN

- hook fastener

4шт.

8

432-812

COTTER PIN,3/4" OAL x 1/8" W

PIN, SPLIT (COTTER), 1/8" x 3/4"

4шт.

9

D134608

BRACKET

- engine side panel, anti-vandalism, if used

2шт.

10

88044

BOLT,Hex, 3/8" - 16 x 1-1/2", Gr 5

- hex head, 3/8" - 16 NC x 1-1/2", plated

2шт.

11

495-21044

WASHER,3/8"

4шт.

12

232-1446

NUT,3/8"-16, GC

NUT, LOCK, 3/8"-16, GC

2шт.

13

R29556

LOCK

PADLOCK - includes keys, Includes: Ref. 14, 15

2шт.

14

D93753

PADLOCK

KEY - for Master padlock only

2шт.

15

D93751

SET OF 2 KEYS

KEY - for yale padlock only

2шт.

16

L100110

FOAM

STRIP - foam, 1" (25 mm) x 3/8" (10 mm) x 10" (254 mm) long, cut from L73272 bulk strip, see below

4шт.

17

L105861

FOAM

STRIP - foam, 1" (25 mm) x 3/8" (10 mm) x 29" (737 mm) long, cut from L104821 bulk strip, see below

2шт.

L73272

STRIP

- bulk, 1" (25 mm) x 3/8" (10 mm) x 90" (2286 mm) long

1шт.

L104821

STRIP

- bulk, 1" (25 mm) x 3/8" (10 mm) x 115" (2921 mm) long

1шт.
