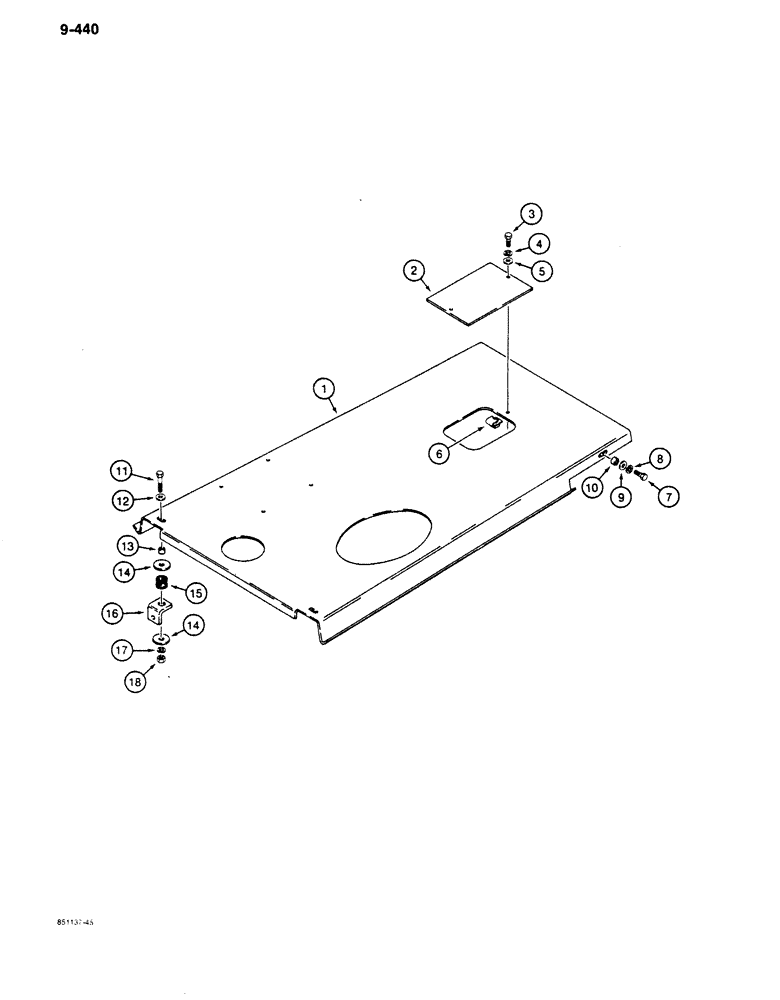

Запчасти Case 680K (9-440) - HOOD (09) - CHASSIS/ATTACHMENTS

1

D136207

HOOD

- engine

1шт.

2

L111744

SHEET

DOOR - access, radiator fill

1шт.

3

413-516

BOLT,Hex, 5/16" - 18 x 1", Gr 5

- hex, 5/16" - 18 NC x 1", plated

2шт.

4

492-11031

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

2шт.

5

495-21038

WASHER,5/16"

2шт.

6

131-637

SPRING NUT,Ret, J, 5/16"-18

- J-type, 5/16 - 18 NC

2шт.

7

413-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5

- hex head, 3/8" - 16 NC x 1", plated

2шт.

8

492-11038

LOCK WASHER,3/8"

2шт.

9

495-21044

WASHER,3/8"

2шт.

10

D34242

SPACER

- hood to side panel

2шт.

11

88044

BOLT,Hex, 3/8" - 16 x 1-1/2", Gr 5

- hex head, 3/8" - 16 NC x 1-1/2", plated

2шт.

12

496-81003

WASHER,10.31mm ID x 26.98mm OD x 3.07mm Thk

- flat, 3/8", hardened, plated

2шт.

13

102439A1

SPACER

- hood

2шт.

14

495-81147

WASHER,0.41" ID x 2" OD x 0.11" Thk

- flat, 3/8", special, plated

4шт.

14

248-23102

GROMMET,1/2" ID x 1 3/4" Groove Dia, Str Cut

- hood

2шт.

16

NSS

NOT SOLD SEPARAT

BRACKET - hood mounting, Serial Range: welded-chassis

2шт.

17

492-11038

LOCK WASHER,3/8"

2шт.

18

425-106

NUT,3/8"-16, Cl 5

2шт.
