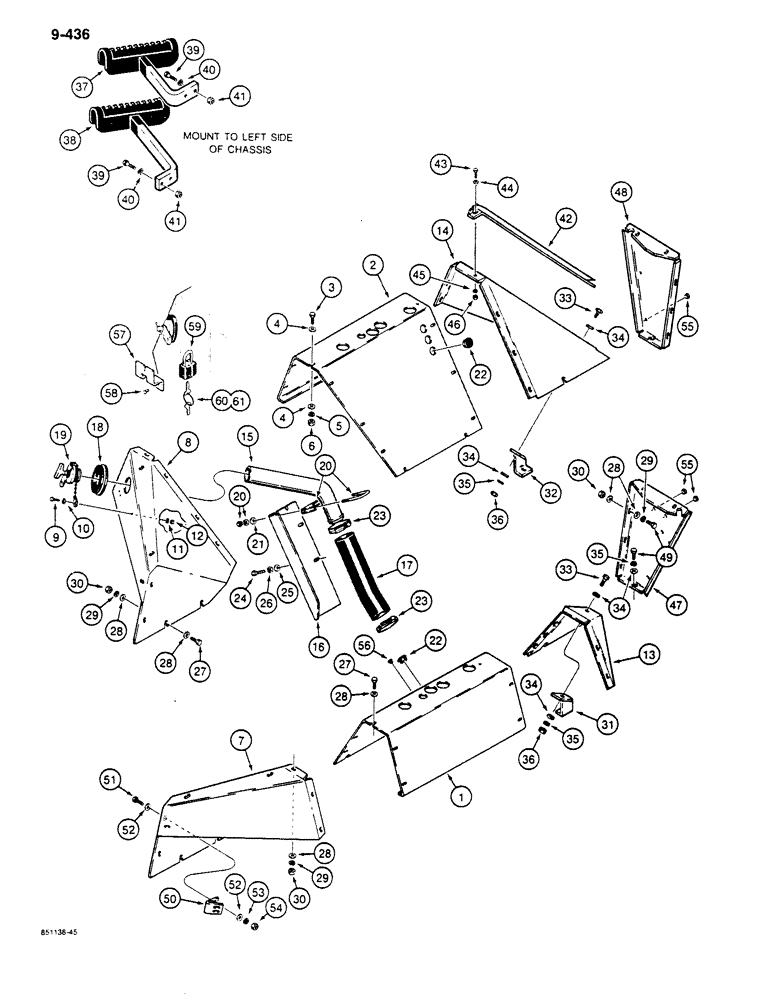

Запчасти Case 680K (9-436) - FENDERS AND STEPS (09) - CHASSIS/ATTACHMENTS

1

D147101

FENDER ASSY.

FENDER - rear, right-hand

1шт.

2

D147102

FENDER

- rear, left-hand

1шт.

3

413-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5

- hex head, 3/8" - 16 NC x 1". plated

14шт.

4

495-21044

WASHER,3/8"

- lock, , plated 3/8"

28шт.

5

492-11038

LOCK WASHER,3/8"

14шт.

6

425-106

NUT,3/8"-16, Cl 5

14шт.

7

L108040

SHIELD

- fender, right-hand, rear

1шт.

8

L108041

SHIELD

- fender, left-hand, rear

1шт.

9

413-412

BOLT,Hex, 1/4" - 20 x 3/4", Gr 5

- hex head, 1/4" - 20 NC x 3/4", plated

1шт.

10

95-21031

WASHER,1/4"

- flat, , plated 1/4"

1шт.

11

492-11025

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

1шт.

12

425-104

NUT,1/4"-20, Cl 5

- hex, 1/4" - 20 NC, plated

1шт.

13

L108038

SHIELD

- fender, right-hand, front

1шт.

14

L109273

SHIELD

- fender, left-hand, front

1шт.

15

L103294

FUEL TUBE,2.5" OD x 17.2, 5.65" L

TUBE - fuel filler

1шт.

16

L108265

COVER ASSY

COVER - fuel filler hose

1шт.

17

S86222

FUEL HOSE

HOSE - tank to filler neck

1шт.

18

L101489

GROMMET

- filler neck

1шт.

19

L108279

PLUG

CAP - filler, with chain fastener

1шт.

20

A13240

CLAMP,2-5/8" ID

- support, includes (2) 92-5 lock washer - and (2) 25-105 nuts

1шт.

21

495-21038

WASHER,5/16"

2шт.

22

353-422

PLUG,Dome, 1.250" hole, Nylon

Used on models without heater or air-conditioning Dome, 1.250" hole, Nylon

4шт.

23

214-3148

HOSE CLAMP,2-1/4" - 3-1/8", HD Worm

CLAMP - hose

2шт.

24

354276X1

SCREW

BOLT - hex head, 1/2" - 13 NC x 1-1/4", plated

2шт.

25

95-21056

WASHER,1/2"

- flat, , plated 1/2"

2шт.

26

80679

LOCK WASHER,1/20.507 CST ZND

WASHER, LOCK, 1/2"

2шт.

27

413-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5

- hex head, 3/8" - 16 NC x 1", plated

22шт.

28

495-21044

WASHER,3/8"

57шт.

29

492-11038

LOCK WASHER,3/8"

30шт.

30

425-106

NUT,3/8"-16, Cl 5

28шт.

31

L103836

SUPPORT ASSY.

SUPPORT - front shield, right-hand

1шт.

32

L103837

SUPPORT ASSY.

SUPPORT - front shield, left-hand

1шт.

33

413-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5

- hex head, 3/8" - 16 NC x 1", plated

4шт.

34

495-21044

WASHER,3/8"

10шт.

35

492-11038

LOCK WASHER,3/8"

6шт.

36

425-106

NUT,3/8"-16, Cl 5

4шт.

37

L102993

STEP

- upper

1шт.

38

L102994

STEP

- lower

1шт.

39

13-832

BOLT,Hex, 1/2" - 13 x 2", Gr 5

4шт.

40

80679

LOCK WASHER,1/20.507 CST ZND

WASHER, LOCK, 1/2"

4шт.

41

425-108

NUT,1/2" - 13, Gr 5

NUT, , Hex 1/2"-13, G5

4шт.

42

D146610

ANGLE

STRIP - door frame, cab models

1шт.

43

413-516

BOLT,Hex, 5/16" - 18 x 1", Gr 5

- hex, 5/16" - 18 NC x 1", plated, cab models

4шт.

44

495-21038

WASHER,5/16"

Cab models 5/16"

4шт.

45

492-11031

LOCK WASHER,5/16"

WASHER, LOCK, , cab models 5/16"

4шт.

46

425-105

NUT,5/16"-18, G5

- hex, 5/16" - 18 NC, plated, Cab models

4шт.

47

D147099

PANEL, SIDE

PANEL - right-hand, front, cab models

1шт.

48

D147100

PANEL, SIDE

PANEL - left-hand, front, cab models

1шт.

49

413-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5

- hex head, 3/8" - 16 NC x 1-1/4", plated

8шт.

50

L104868

BRACKET

- shield anchor, canopy models

2шт.

51

413-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5

- hex head, 3/8" - 16 NC x 1", plated

4шт.

52

495-21044

WASHER,3/8"

8шт.

53

492-11038

LOCK WASHER,3/8"

4шт.

54

425-106

NUT,3/8"-16, Cl 5

4шт.

55

60-4258T1

PLUG

- nylon, 3/8" (10 mm) diameter, used on models without cold start system and without air-conditioning

6шт.

56

353-403

PLUG,Dome, .437" hole, Nylon

1шт.

57

L105960

BRACKET

- fuel filler cap lock, anti-vandalism, if used

1шт.

58

151-538

RIVET,Pop, 3/16" x .575"

- pop, 3/16", filter cap bracket

2шт.

59

R29556

LOCK

PADLOCK - includes keys, Includes: Ref. 60, 61

1шт.

60

D93753

PADLOCK

KEY - for Master padlock only

2шт.

61

D93751

SET OF 2 KEYS

KEY - for Yale padlock only

2шт.
