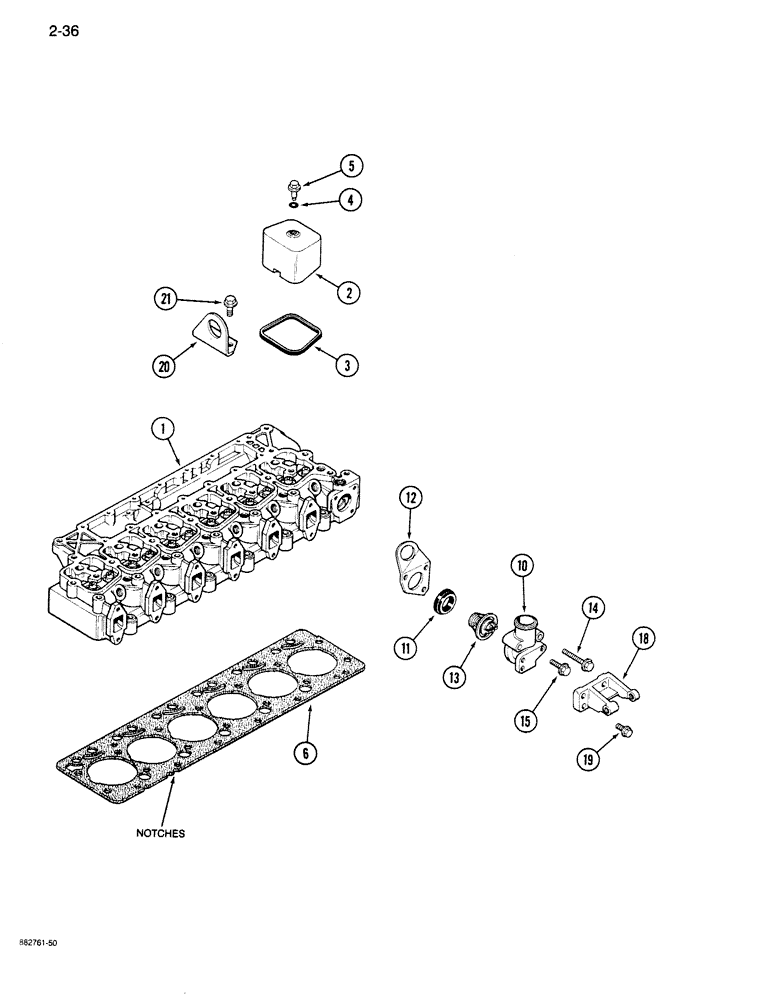

Запчасти Case 680K (2-36) - CYLINDER HEAD COVERS AND GASKET, 6-590 ENGINE, THERMOSTAT AND HOUSING (02) - ENGINE

1

REF

INSTRUCTION

HEAD - cylinder (See Page 2-51)

1шт.

2

J902604

COVER

- rocker

6шт.

3

J930906

GASKET

SEAL - rocker cover

6шт.

4

J910824

O-RING,0.07" Thk x 0.364" ID, -12, Cl 5, 75 Duro

- cover bolt (Replaces J901837)

6шт.

5

J907049

BOLT,Hex

- special, M8 x 1.25 x 21.25 mm

6шт.

6

J907057

CYLINDER HEAD GASKET

- cylinder head (Standard)

1шт.

6

J907058

GASKET

- cylinder head (0.13 mm thicker)

1шт.

6

J907059

GASKET

- cylinder head (0.50 mm thicker)

1шт.

10

J914409

HOUSING

- thermostat (Replaces J903756)

1шт.

11

J923331

GASKET

- housing, thermostat

1шт.

12

J903757

BRACKET

- lifting, front, thermostat and housing

1шт.

13

A77736

THERMOSTAT

- water, 95 degree C, thermostat and housing

1шт.

14

845-8070

BOLT,Hvy Hex, M8 x 70mm, Cl 8.8

- hex flange head, M8 x 1.25 x 70 mm, Thermostat and housing

2шт.

15

845-8035

BOLT,Hvy Hex, M8 x 35mm, Cl 8.8

- hex flange head, M8 x 1.25 x 35 mm, Thermostat and housing

1шт.

18

J910713

SUPPORT

- alternator mounting (Replaces J908744) thermostat and housing

1шт.

19

813-8025

BOLT,Hex, M8 x 1.25 x 25mm, Cl 8.8, Full Thd

- flanged head, M8 x 25 mm, thermostat and housing

3шт.

20

V4327147

SUPPORT

BRACKET - lifting, rear, thermostat and housing

1шт.

21

813-12025

BOLT,Hex, M12 x 1.75 x 25mm, Cl 8.8, Full Thd

- hex, M12 x 1.75 x 25 mm, thermostat and housing

2шт.
