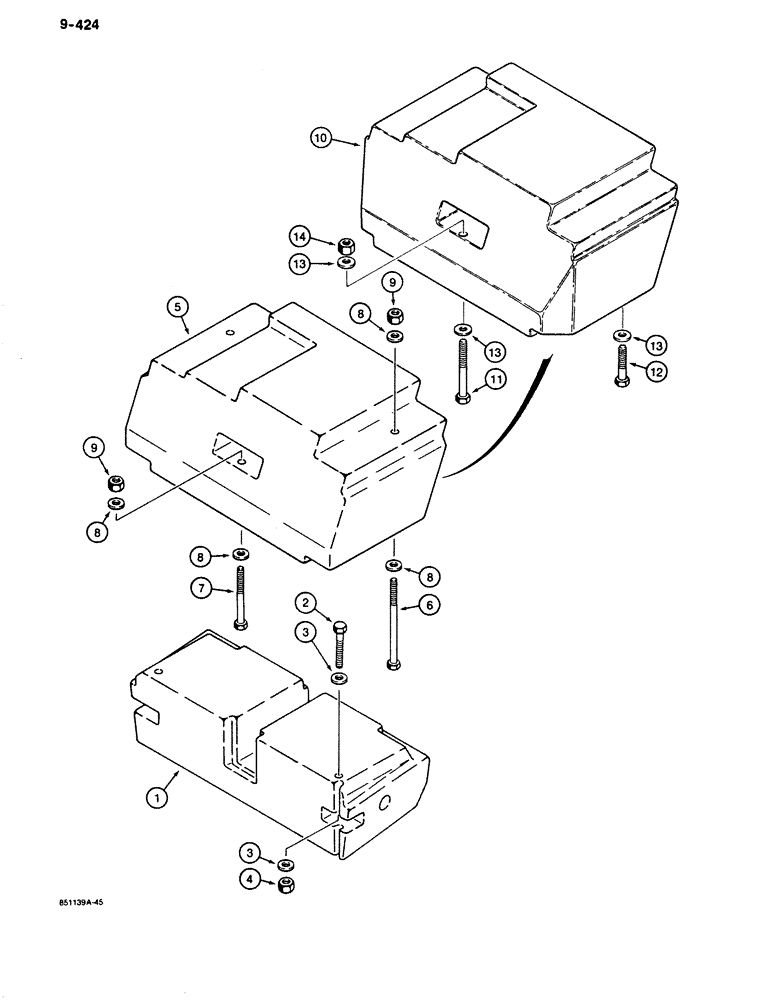

Запчасти Case 680K (9-424) - FRONT COUNTERWEIGHT, STD. COUNTERWEIGHT/OPTIONAL COUNTERWEIGHT USED ON MODELS WITH EXTENDABLE DIPPER (09) - CHASSIS/ATTACHMENTS

1

L111861

WEIGHT

COUNTERWEIGHT - front, 480 lbs, (217.7 kg) standard

1шт.

2

413-876

BOLT,Hex, 1/2" - 13 x 4-3/4", Gr 5

- hex head, 1/2" - 13 NC x 4-3/4", plated, standard

4шт.

3

495-11053

WASHER,1/2", SAE

Standard 1/2", SAE

8шт.

4

231-1448

NUT,1/2"-13, GB

- hex, self-locking, 1/2" - 13 NC, plated, standard

4шт.

5

D134371

COUNTER

WEIGHT - front, 970 lbs. (439.9 kg), may be cast or fabricated, no longer available, order Ref. 10 - 14, optional, used on models with extendable dipper

1шт.

6

13-8184

BOLT,Hex, 1/2" - 13 x 11-1/2", Gr 5

If used, optional counterweight, used on models with extendable dipper Hex, 1/2"-13 x 11 1/2", G5

2шт.

7

413-8112

BOLT,Hex, 1/2" - 13 x 7", Gr 5

- hex head, 1/2" - 13 NC x 7", plated, if used, optional counterweight, used on models with extendable dipper

2шт.

8

495-11053

WASHER,1/2", SAE

If used, Optional counterweight, Used on models with extendable dipper 1/2", SAE

8шт.

9

231-1448

NUT,1/2"-13, GB

- hex, self-locking, 1/2" - 13 NC, plated, if used, optional counterweight, used on models with extendable dipper

4шт.

10

D135773

WEIGHT

COUNTERWEIGHT - front, 970 lbs. (439.9 kg), also order 008-44481 instruction sheet, not used on models with clam bucket, optional, used on models with extendable dipper

1шт.

11

413-10112

BOLT,Hex, 5/8" - 11 x 7", Gr 5

- hex head, 5/8" - 11 NC x 7", plated, optional counterweight, used on models with extendable dipper

2шт.

12

413-1072

BOLT,Hex, 5/8" - 11 x 4-1/2", Gr 5

Optional counterweight, used on models with extendable dipper Hex, 5/8"-11 x 4 1/2", G5

2шт.

13

495-11066

WASHER,5/8", SAE

- flat, 5/8", plated, optional counterweight, used on models with extendable dipper

6шт.

14

425-1010

NUT,5/8"-11, G5

Optional counterweight, used on models with extendable dipper 5/8"-11, G5

2шт.
