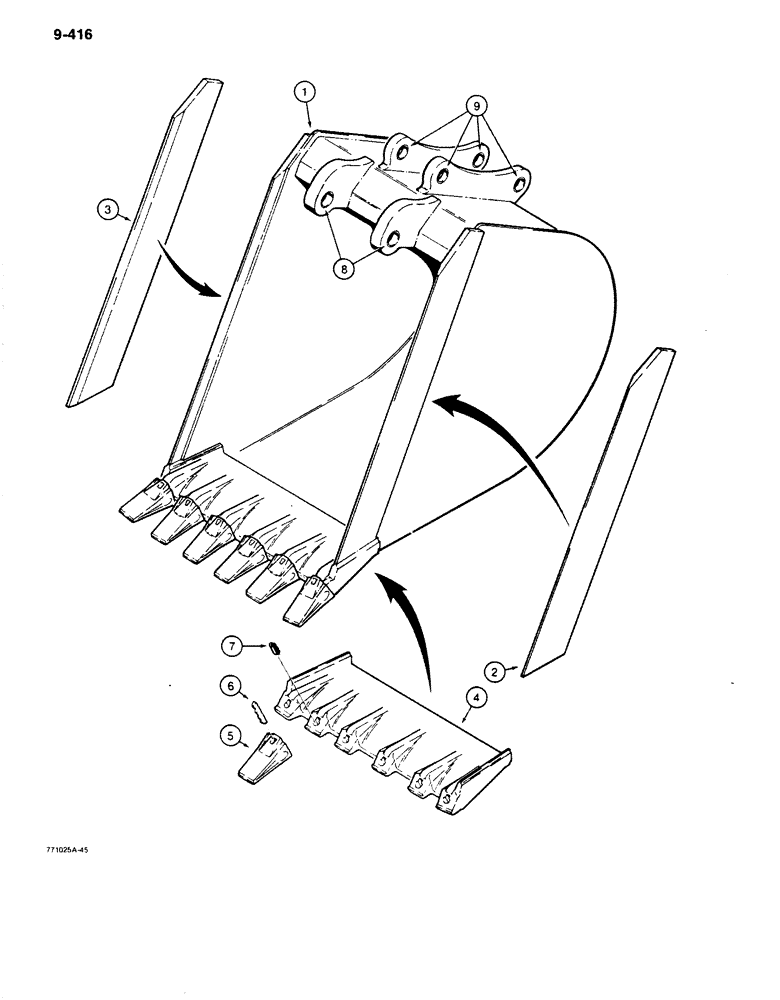

Запчасти Case 680K (9-416) - BACKHOE BUCKETS (09) - CHASSIS/ATTACHMENTS

1

L107622

BUCKET

ASSEMBLY - 24 inch (610 mm) machinery item, order from the Machinery Price List, no longer available, order D138072 bucket assembly on Figure 9-418, Includes: Ref. 2 - 9

1шт.

2

K72992

EDGE - cutting, bucket, right-hand side

1шт.

3

L72993

BLADE

EDGE - cutting, bucket, left-hand side

1шт.

L72991

EDGE, CUTTING

EDGE ASSEMBLY - cutting, bucket, center, Includes: Ref. 4 - 7

1шт.

4

NSS

NOT SOLD SEPARAT

EDGE - cutting, center

1шт.

5

R35317

POINT

- tooth

5шт.

6

R35318

PIN

- tooth

5шт.

7

R35319

LOCK ASSY

LOCK - tooth

5шт.

8

D30933

BUSHING,38.41mm ID x 47.63mm OD x 31.75mm L

- bucket, lug assembly, lower

4шт.

9

D37495

BUSHING,44.76mm ID x 57.15mm OD x 31.75mm L

- bucket, lug assembly, upper

2шт.

1

L107295

BUCKET

ASSEMBLY - 30 inch (762 mm) machinery item, order from the Machinery Price List, no longer available, order D138073 bucket assembly on Figure 9-420

1шт.

2

L72992

BLADE

EDGE - cutting, bucket, right-hand side

1шт.

3

L72993

BLADE

EDGE - cutting, bucket, left-hand side

1шт.

L73209

BLADE

EDGE ASSEMBLY - cutting, bucket, center, Includes: Ref. 4 - 7

1шт.

4

NSS

NOT SOLD SEPARAT

EDGE - cutting, center

1шт.

5

R38572

TOOTH

POINT - tooth

6шт.

6

R35318

PIN

- tooth

6шт.

7

R35319

LOCK ASSY

LOCK - tooth

6шт.

8

D30933

BUSHING,38.41mm ID x 47.63mm OD x 31.75mm L

- bucket, lug assembly, lower

4шт.

Ref. 8 and 9 should be switched on the illustration.

1шт.

9

D37495

BUSHING,44.76mm ID x 57.15mm OD x 31.75mm L

- bucket, lug assembly, upper

2шт.

Ref. 8 and 9 should be switched on the illustration.

1шт.
