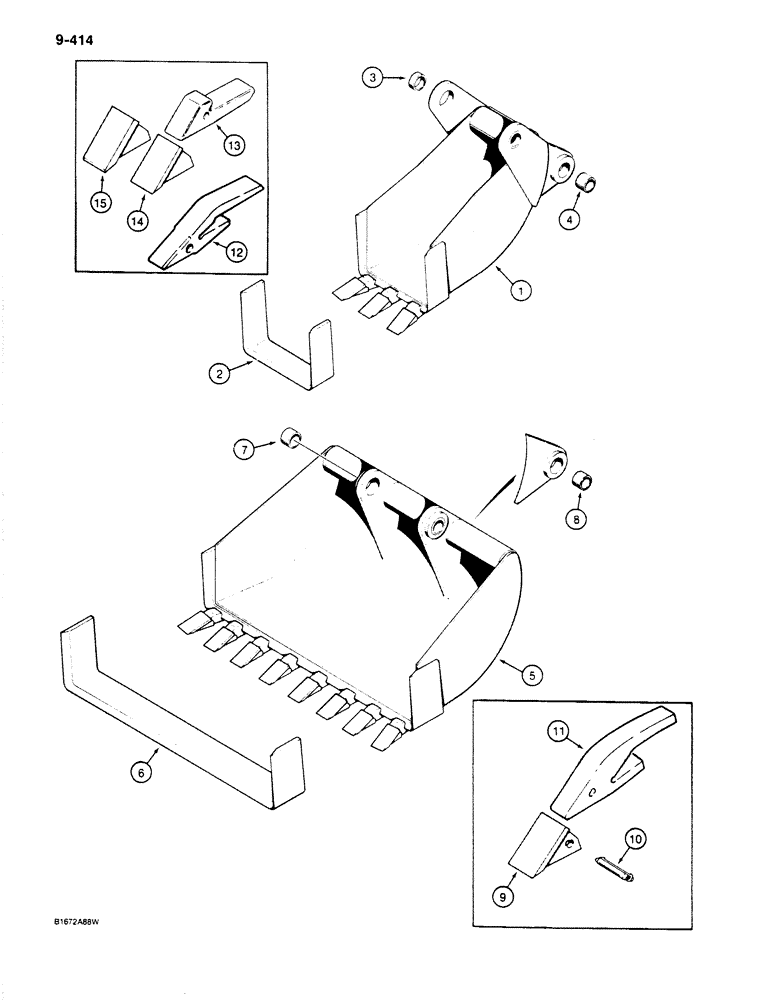

Запчасти Case 680K (9-414) - BACKHOE BUCKETS/BELLHOLE BUCKETS/COMBINATION BELLHOLE AND GRAVEYARD BUCKET/CRIMPED-ON BUCKET TEETH (09) - CHASSIS/ATTACHMENTS

1

D41547

BUCKET

ASSEMBLY - 12 inch (305 mm) machinery item, order from the Machinery Price List, not used with extendable dipper, no longer available, bellhole, Includes: Ref. 2 - 4

1шт.

2

D37490

KNIFE

EDGE - cutting, bucket

1шт.

3

D40243

BUSHING,44.68mm ID x 57.15mm OD x 19.05mm L

BUSING - bucket, at dipper, upper

2шт.

4

D30933

BUSHING,38.41mm ID x 47.63mm OD x 31.75mm L

- bucket, at bucket link pin hole, lower

2шт.

1

D41548

BUCKET

ASSEMBLY - 16 inch (406 mm) machinery item, order from the Machinery Price List, no longer available, bellhole, Includes: Ref. 2 - 4

1шт.

2

D37518

EDGE, CUTTING

EDGE - cutting, bucket

1шт.

3

D37495

BUSHING,44.76mm ID x 57.15mm OD x 31.75mm L

- bucket, at dipper, upper

2шт.

4

D30933

BUSHING,38.41mm ID x 47.63mm OD x 31.75mm L

- bucket, at bucket link pin hole, lower

2шт.

1

D41549

BUCKET

ASSEMBLY - 30 inch (762 mm) machinery item, order from the Machinery Price List, no longer available, bellhose, Includes: Ref. 2 - 4

1шт.

2

D37515

EDGE

- cutting, bucket

1шт.

3

D37495

BUSHING,44.76mm ID x 57.15mm OD x 31.75mm L

- bucket, at dipper, upper

2шт.

4

D30933

BUSHING,38.41mm ID x 47.63mm OD x 31.75mm L

- bucket, at bucket link pin hole, lower

2шт.

5

D4155

BUCKET ASSEMBLY - 36 inch (914 mm), with 6 teeth, machinery item, order from the Machinery Price List, combination bellhose and graveyard, Includes: Ref. 6 - 11

1шт.

6

NLS

NO LONGER SERVICED

EDGE - cutting, bucket

1шт.

7

D37495

BUSHING,44.76mm ID x 57.15mm OD x 31.75mm L

- bucket, at dipper, upper

2шт.

8

D30933

BUSHING,38.41mm ID x 47.63mm OD x 31.75mm L

- bucket, at bucket link pin hole, lower

2шт.

D41659

TOOTH

ASSEMBLY - bucket, Includes: Ref. 9 - 11

6шт.

9

486913R1

POINT

- tooth

1шт.

10

245466A1

RETAINER,Flexpin, Bucket Tooth

Pin flex, Point

1шт.

11

NSS

NOT SOLD SEPARAT

SHANK - tooth

1шт.

12

D58499

SUPPORT

SHANK - tooth, heavy duty service option, if used, crimped-on

1шт.

13

D26368

SUPPORT

SHANK - tooth, original equipment, if used, crimped-on

1шт.

14

D27748

TOOTH

POINT - tooth, if used, crimped-on

1шт.

15

D36720

TOOTH

POINT - tooth, heavy duty service option, if used, crimped-on

1шт.
