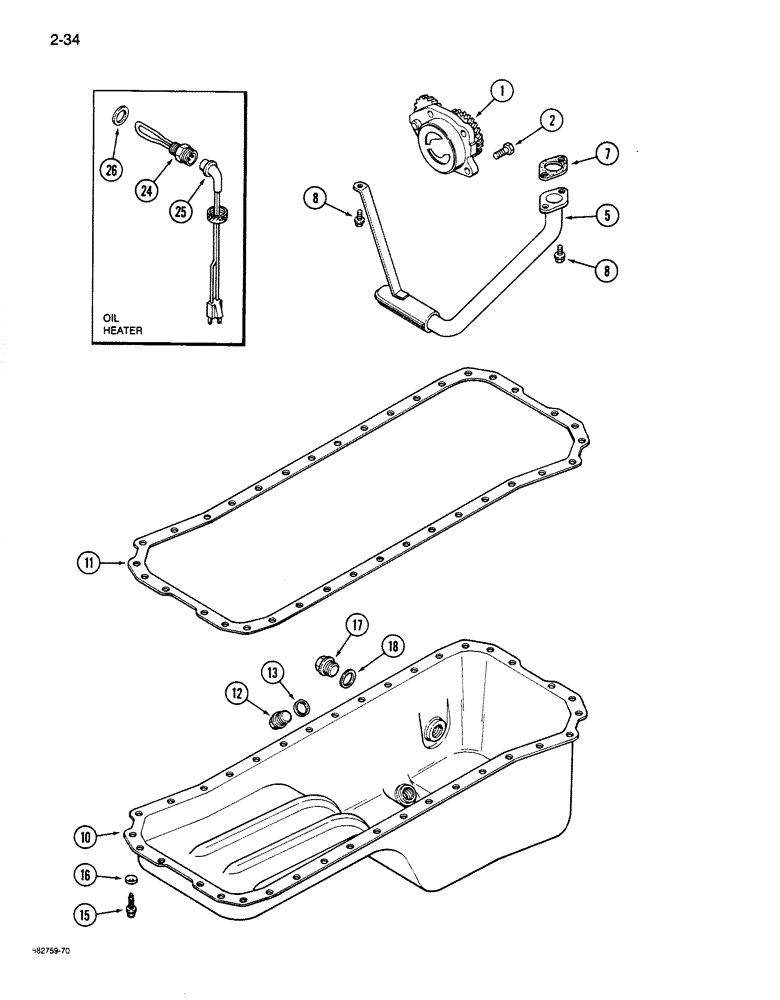

Запчасти Case 680K (2-34) - OIL PUMP AND OIL PAN, 6-590 ENGINE, ENGINE OIL HEATER (02) - ENGINE

1

J906414

PUMP, ENGINE OIL

PUMP ASSEMBLY - oil, engine

1шт.

JC906414

CORE-HYDRAULIC PUMP

RETURN NUMBER - oil pump assembly (Use this part number to return pump core for credit)

1шт.

JR937404

REMAN-ENG OIL PUMP

REMAN-ENGINE OIL PUMP Remanufactured Oil Pump; For N.A. only

1шт.

JC937404

CORE-ENGINE OIL PUMP

CORE-ENGINE OIL PUMP Return number - For N.A. only

1шт.

2

614-8030

BOLT,Hex, M8 x 1.25 x 30mm, Cl 8.8, Full Thd

BOLT, HH, CL 8.8, M8 x 1.25 x 30

4шт.

5

J921992

TUBE,25.4 mm OD x 359, 234 mm L

TUBE AND SCREEN - oil suction

1шт.

7

J914383

GASKET

GASKET - mounting, tube (Replaces J905468)

1шт.

Part of gasket kit A77979

1шт.

8

J924962

FLANGE BOLT

BOLT - hex, M8 x 1.25 x 16 mm

3шт.

10

J915703

PAN, ENGINE OIL

PAN, OIL PAN - oil, engine

1шт.

11

NSS

NOT SOLD SEPARAT

GASKET - oil pan

1шт.

Part of gasket kit A77979

1шт.

12

J924147

PLUG,M18 x 1.5

PLUG - drain, oil

1шт.

12

J924147

PLUG,M18 x 1.5

PLUG - drain, oil magnetic (Alternate with J900215 plug)

1шт.

13

J920773

SEALING WASHER

WASHER - seal, drain plug

1шт.

Part of gasket kit A77979

1шт.

15

J907860

FLANGE BOLT,Hex, M8 x 25mm, Spcl

BOLT - hex flange head, M18 x 16

36шт.

16

J910266

LOCK WASHER

WASHER - spring

36шт.

17

J924148

PLUG,M22 x 1.5

PLUG - pipe, M22

1шт.

18

J902425

SEALING WASHER,22.2mm ID x 26.9mm OD x 1.75mm Thk

WASHER - seal, plug

1шт.

A77979

GASKET KIT

GASKET KIT - oil pan, Includes: Ref. 7, 11, 13

1шт.

S7679992

KIT

KIT - heater, engine oil, Includes: Ref. 24, 25

1шт.

24

NSS

NOT SOLD SEPARAT

ELEMENT - heater (Order A77490)

1шт.

25

V7779930

CABLE

CABLE - engine block heater

1шт.

26

J902425

SEALING WASHER,22.2mm ID x 26.9mm OD x 1.75mm Thk

WASHER - seal, plug, engine oil heater

1шт.
