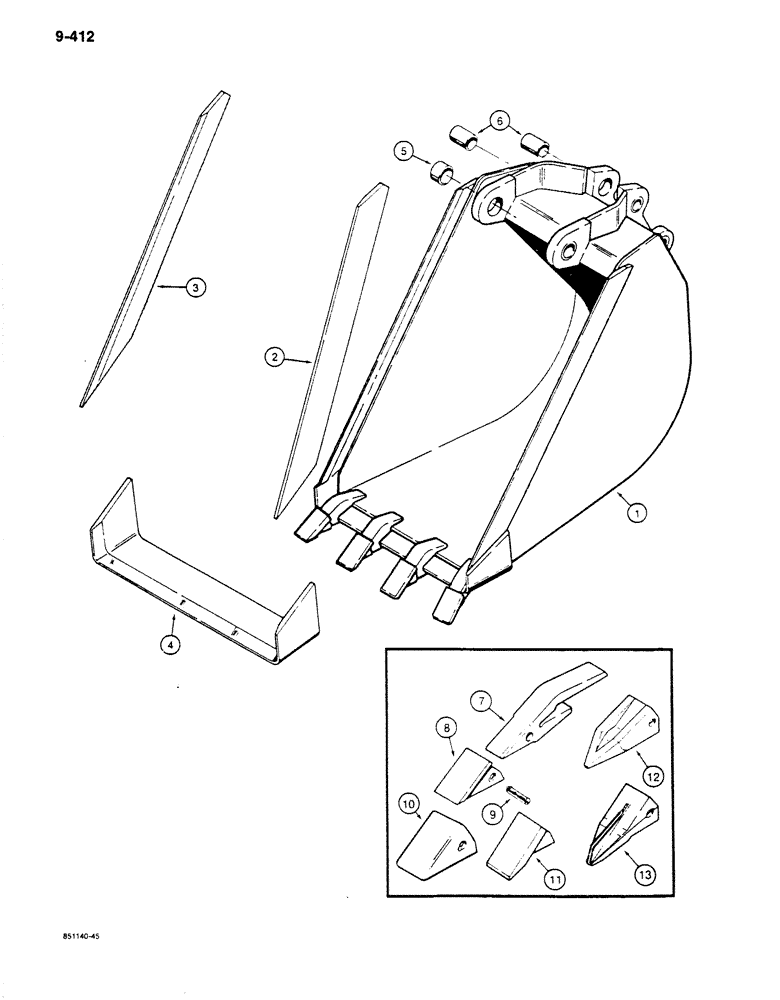

Запчасти Case 680K (9-412) - BACKHOE BUCKETS, HIGH CAPACITY TRENCHING BUCKETS, BUCKET TEETH (09) - CHASSIS/ATTACHMENTS

1

L107618

BUCKET

ASSEMBLY - 24 inch (610 mm), with 4 teeth, machinery item, order from the Machinery Price List, Includes: Ref. 2 - 6

1шт.

2

L70084

EDGE, CUTTING

EDGE - cutting, bucket, right-hand side

1шт.

3

L70083

EDGE, CUTTING

EDGE - cutting, bucket, left-hand side

1шт.

4

D41673

EDGE, CUTTING

EDGE - cutting, bucket, center

1шт.

5

D37495

BUSHING,44.76mm ID x 57.15mm OD x 31.75mm L

- bucket, at dipper, upper

2шт.

6

D30933

BUSHING,38.41mm ID x 47.63mm OD x 31.75mm L

- bucket, bucket link pin hole, lower

4шт.

1

L107716

BUCKET

ASSEMBLY - 30 inch (762 mm), with 5 teeth, machinery item, order from the Machinery Price List, Includes: Ref. 2 - 6

1шт.

2

L70084

EDGE, CUTTING

EDGE - cutting, bucket, right-hand side

1шт.

3

L70083

EDGE, CUTTING

EDGE - cutting, bucket, left-hand side

1шт.

4

D41870

EDGE, CUTTING

EDGE - cutting, bucket, center

1шт.

5

D37495

BUSHING,44.76mm ID x 57.15mm OD x 31.75mm L

- bucket, at dipper, upper

2шт.

6

D30933

BUSHING,38.41mm ID x 47.63mm OD x 31.75mm L

- bucket, bucket link pin hole, lower

4шт.

1

L107692

BUCKET

ASSEMBLY - 36 inch (914 mm), with 6 teeth, machinery item, order from the Machinery Price List, Includes: Ref. 2 - 6

1шт.

2

L70084

EDGE, CUTTING

EDGE - cutting, bucket, right-hand side

1шт.

3

L70083

EDGE, CUTTING

EDGE - cutting, bucket, left-hand side

1шт.

4

L43412

EDGE, CUTTING

EDGE - cutting, bucket, center

1шт.

5

D37495

BUSHING,44.76mm ID x 57.15mm OD x 31.75mm L

- bucket, at dipper, upper

2шт.

6

D30933

BUSHING,38.41mm ID x 47.63mm OD x 31.75mm L

- bucket, bucket link pin hole, lower

4шт.

L463266

TOOTH ASSEMBLY - bucket, included with bucket, Includes: Ref. 7 - 9

1шт.

7

NSS

NOT SOLD SEPARAT

SHANK - tooth, included with bucket

1шт.

8

486913R1

POINT

- tooth, included with bucket

1шт.

9

245466A1

RETAINER,Flexpin, Bucket Tooth

Pin flex, Point, Included with bucket

1шт.

10

532948R1

POINT

- tooth, heavy duty service option, included with bucket

1шт.

11

D44193

TOOTH

POINT - tooth, heavy duty, flat end, service option, included with bucket

1шт.

12

ZJZ230P

POINT

- tooth, heavy duty, pointed end, service option, included with bucket

1шт.

13

103659C1

POINT

- tooth, heavy duty, star point, service option, included with bucket

1шт.
