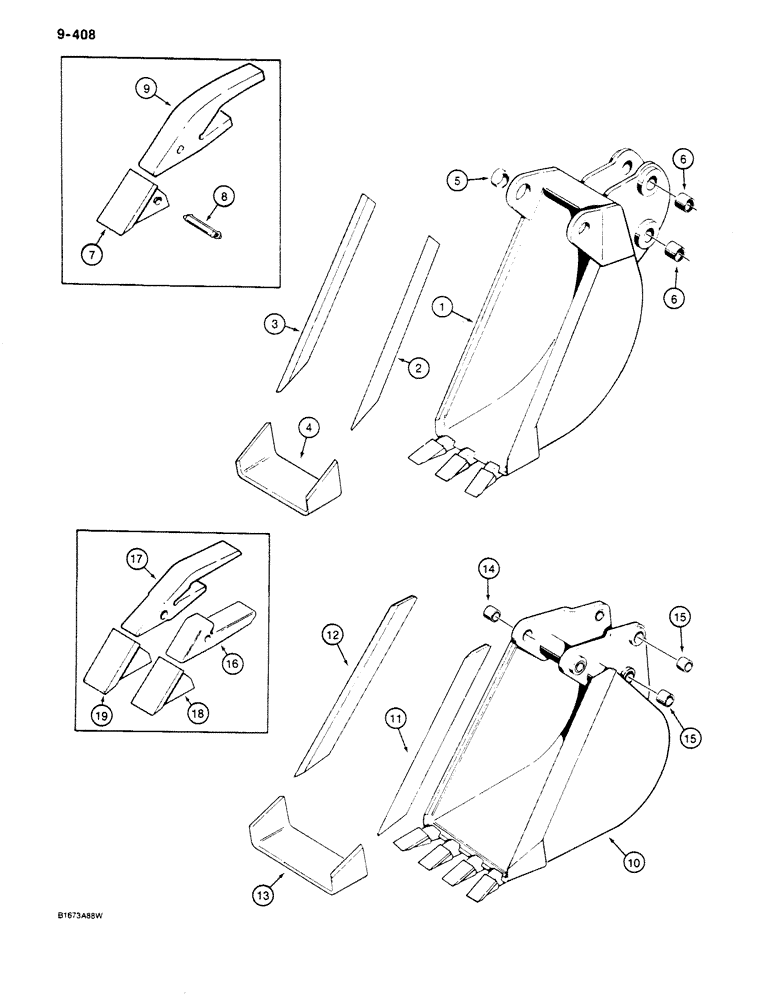

Запчасти Case 680K (9-408) - BACKHOE BUCKETS, TRENCHING BUCKETS, CRIMPED-ON BUCKET TEETH (09) - CHASSIS/ATTACHMENTS

1

D52642

BUCKET

ASSEMBLY - 12 inch (305 mm) machinery item, order from the Machinery Price List, not used with extendable dipper, Includes: Ref. 2 - 15

1шт.

2

D29424

EDGE, CUTTING

EDGE - cutting, bucket, right-hand side

1шт.

3

D29423

EDGE, CUTTING

EDGE - cutting, bucket, left-hand side

1шт.

4

D37464

EDGE, CUTTING

EDGE - cutting, bucket, center

1шт.

5

D40243

BUSHING,44.68mm ID x 57.15mm OD x 19.05mm L

- bucket, at dipper, upper

2шт.

6

D30933

BUSHING,38.41mm ID x 47.63mm OD x 31.75mm L

BUCKET - bucket, bucket link pin hole, lower

4шт.

D41659

TOOTH

ASSEMBLY - trenching bucket, Includes: Ref. 7 - 9

3шт.

7

486913R1

POINT

- tooth

1шт.

8

245466A1

RETAINER,Flexpin, Bucket Tooth

Pin flex, Point

1шт.

9

NSS

NOT SOLD SEPARAT

SHANK - tooth

1шт.

10

376384A1

BUCKET

ASSEMBLY - 18 inch (457 mm) machinery item, order from the Machinery Price List, no longer available, order D139795 bucket assembly on Figure 9-410

1шт.

11

D21606

EDGE, CUTTING

EDGE - cutting, bucket, right-hand side

1шт.

12

D21605

EDGE, CUTTING

EDGE - cutting, bucket, left-hand side

1шт.

13

D37642

EDGE, CUTTING

EDGE - cutting, bucket, center

1шт.

14

D37495

BUSHING,44.76mm ID x 57.15mm OD x 31.75mm L

- bucket, at dipper, upper

2шт.

15

D30933

BUSHING,38.41mm ID x 47.63mm OD x 31.75mm L

- bucket, upper and lower bucket link pin hole, lower

4шт.

16

D26368

SUPPORT

SHANK - tooth, original equipment, if used, crimped-on bucket teeth

1шт.

17

D58499

SUPPORT

SHANK - tooth, heavy duty service option, if used, crimped-on bucket teeth

1шт.

18

D27748

TOOTH

POINT - tooth, if used, crimped-on bucket teeth

1шт.

19

D36720

TOOTH

POINT - tooth, heavy duty service option, if used, crimped-on bucket teeth

1шт.
