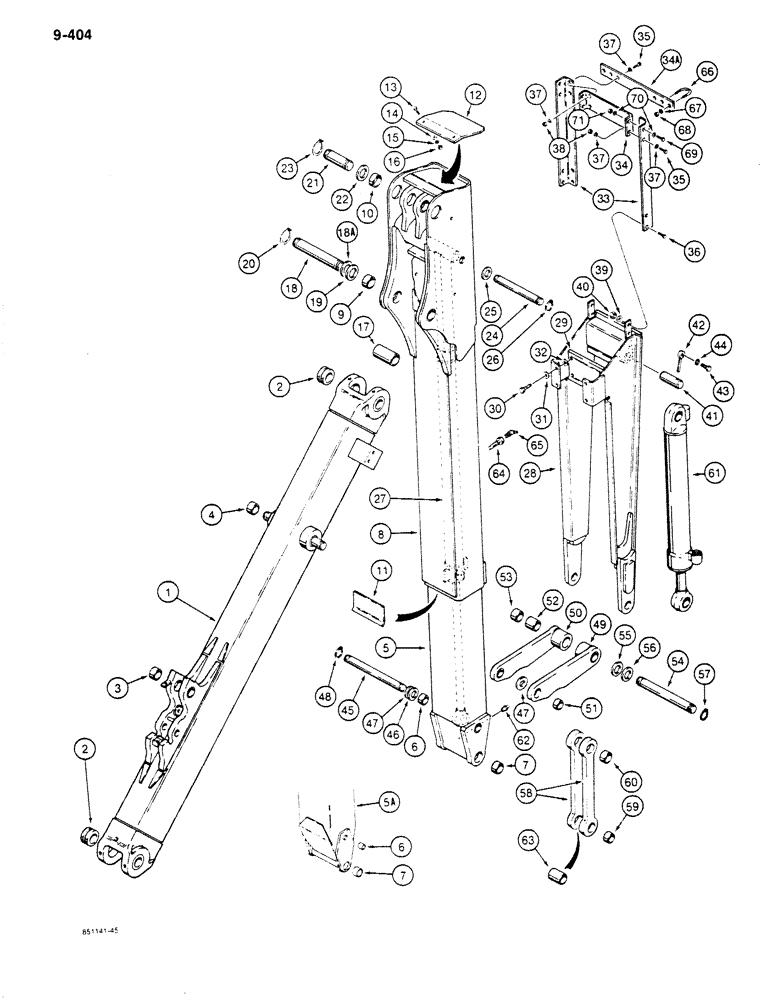

Запчасти Case 680K (9-404) - EXTENDABLE DIPPER (09) - CHASSIS/ATTACHMENTS

1

L101449

BOOM

ASSEMBLY - backhoe, used with extendable dipper only, Includes: Ref. 2 - 4

1шт.

2

L70791

BUSHING,57.38mm ID x 82.55mm OD x 38.1mm L

- boom to tower and dipper

4шт.

3

D30756

BUSHING,51.02mm ID x 63.5mm OD x 31.8mm L

- at cylinder mounting, 2-1/2" (64 mm) OD

2шт.

4

L77788

BUSHING

- at boom cylinder mounting, 3" (76 mm) OD

2шт.

5

D127310

CABLE EXTENSION

EXTENSION ASSEMBLY - dipper arm, inner, no longer available, for service order D127310 extension, Includes: Ref. 6, 7

1шт.

5a

D127310

CABLE EXTENSION

EXTENSION ASSEMBLY - dipper arm, inner, Includes: Ref. 6, 7

1шт.

6

D31140

BUSHING,38.33mm ID x 47.63mm OD x 25.4mm L

- at bucket link, L104788 or D127310 extension

2шт.

7

D37495

BUSHING,44.76mm ID x 57.15mm OD x 31.75mm L

- at bucket, L104788 or D127310 extension

2шт.

8

L101460

ARM

ASSEMBLY - dipper, Includes: Ref. 9 - 11

1шт.

9

L55734

BUSHING

- at boom pivot

2шт.

10

D33024

BUSHING,51.02mm ID x 63.5mm OD x 25.4mm L

- at dipper pivot

2шт.

11

L57012

PLATE ASSY.

PLATE - wear

1шт.

12

L78390

COVER ASSY

COVER - end, dipper arm

1шт.

13

87689

BOLT,1/2"-13 x 1.813" OAL, Gr 5

2шт.

14

95-8

WASHER,1/2"

flat 1/2"

2шт.

15

192-23

LOCK WASHER,1/2"

WASHER, LOCK, 1/2"

2шт.

16

425-108

NUT,1/2" - 13, Gr 5

NUT, , Hex 1/2"-13, G5

2шт.

17

L58656

SPACER

-, Serial Range: dipper-boom

1шт.

18

L54388

AXLE PIN

PIN -, Serial Range: dipper-boom

1шт.

18a

L79228

WASHER,64.26mm ID x 152.4mm OD x 2.16mm Thk

- flat, 2-1/2" ID x 6" OD, special, used as a shim

1шт.

19

D41472

WASHER

- flat, 2-5/16" ID x 3" OD, special

1шт.

20

103-11225

SNAP RING,#225, Ext

Ring, Snap, , Pin #225, Ext

2шт.

21

L73598

AXLE PIN

PIN - dipper, Serial Range: cylinder-dipper

1шт.

22

95-81155

WASHER,52.38mm ID x 76.2mm OD x 3.35mm Thk

- flat, 2", special

2шт.

23

103-16200

SNAP RING,#200, Ext

Ring, Snap, , Pin #200, Ext

2шт.

24

L54407

AXLE PIN

PIN - extension, Serial Range: cylinder-dipper

1шт.

25

L79009

WASHER

- flat, 1-1/2", special, hardened

2шт.

26

D25279

SNAP RING,M35, Int

RING - snap, pin retaining

2шт.

27

G101259

CYLINDER BLOCK

CYLINDER ASSEMBLY - dipper extension, parts list Figure 8-358

1шт.

28

L107814

GUIDE

- bucket cylinder

1шт.

29

D135069

PLATE

- wear

1шт.

30

326-820

BOLT,Hex, 1/2" - 13 x 1-1/4", Gr 8

4шт.

31

R24323

WASHER

- flat, 1/2" ID x 1" OD, hardened

1шт.

32

D64050

WASHER

SPACER - 1/2" ID x 1-1/2" OD, hardened, wear plate

1шт.

33

L78977

ANGLE

- bucket cylinder hose support

2шт.

34

L104252

BRACKET

- hose support

1шт.

34a

L104254

BAR

- hose support

1шт.

35

413-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5

- hex head, 3/8" - 16 NC x 1", plated

4шт.

36

413-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5

- hex head, 3/8" - 16 NC x 1-1/4", plated

4шт.

37

495-21044

WASHER,3/8"

8шт.

38

232-1446

NUT,3/8"-16, GC

NUT, LOCK, 3/8"-16, GC

4шт.

39

495-21044

WASHER,3/8"

4шт.

40

232-1446

NUT,3/8"-16, GC

NUT, LOCK, 3/8"-16, GC

4шт.

41

L53181

PIN

- bucket cylinder to bucket cylinder guide

1шт.

42

R17756

ROD,12.7mm OD x 109.54mm L

PIN - lock

1шт.

43

354276X1

SCREW

BOLT - hex head, 1/2" - 13 NC x 1-1/4", plated

1шт.

44

192-23

LOCK WASHER,1/2"

WASHER, LOCK, 1/2"

1шт.

45

L58783

AXLE PIN

PIN - dipper extension cylinder and bucket cylinder guide to dipper extension

1шт.

46

L55703

WASHER

- special

2шт.

47

L79009

WASHER

- hardened

1шт.

48

100-16150

SNAP RING,#150, Ext

Ring, Snap, , Pin #150, Ext

2шт.

49

L104430

DRAG LINK

LINK ASSEMBLY - guide, right-hand, Includes: Ref. 51 - 53

1шт.

50

L104431

DRAG LINK

LINK ASSEMBLY - guide, left-hand, Includes: Ref. 51 - 53

1шт.

51

D31140

BUSHING,38.33mm ID x 47.63mm OD x 25.4mm L

- guide link, at bar end

1шт.

52

D40089

BUSHING

- guide link, at boss, long

1шт.

53

D34354

BUSHING,44.68mm ID x 53.98mm OD x 38.1mm L

- guide link, at boss, short

1шт.

54

L74047

AXLE PIN

PIN - guide and dump link to bucket cylinder at rod end

1шт.

55

95-81150

WASHER,46.02mm ID x 63.5mm OD x 3.35mm Thk

- flat, 1-3/4", special, used as a shim

1шт.

56

L50511

WASHER

- special, 1-3/4"

2шт.

57

103-16175

SNAP RING,#175, Ext

Ring, Snap, , Pin #175, Ext

2шт.

58

L104437

DRAG LINK

LINK ASSEMBLY - bucket, Includes: Ref. 59, 60

2шт.

59

D30933

BUSHING,38.41mm ID x 47.63mm OD x 31.75mm L

- link, 1-1/2" (38 mm) ID

1шт.

60

D37392

BUSHING,44.68mm ID x 53.98mm OD x 31.75mm L

- link, 1-3/4" (44 mm) ID

1шт.

61

G103856

CYLINDER BLOCK

CYLINDER ASSEMBLY - bucket, parts list Figure 8-356

1шт.

62

80710

LUBE NIPPLE,1/8” – 27 Dryseal PTF

NIPPLE, LUBE, 1/8"-27 x .66 lg

1шт.

63

L55723

SPACER

- bucket links

1шт.

64

219-107

NOZZLE CAP

NOZZLE - extension, grease fitting, used with Ref. 65 to lubricate dipper slide

1шт.

65

219-89

LUBE NIPPLE,45 Degree Elbow, 1/8" NPTF

FITTING - grease, 45º, 1/8" pipe, self-tapping, used with Ref. 64 to lubricate dipper slide

1шт.

66

L104253

U-BOLT

- hose retaining

2шт.

67

495-21038

WASHER,5/16"

4шт.

68

232-4115

LOCK NUT,5/16"-18, GC

NUT, LOCK, 5/16"-18, GC

4шт.

69

413-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5

- hex head, 3/8" - 16 NC x 1", plated

2шт.

70

495-21044

WASHER,3/8"

4шт.

71

232-1446

NUT,3/8"-16, GC

NUT, LOCK, 3/8"-16, GC

2шт.
