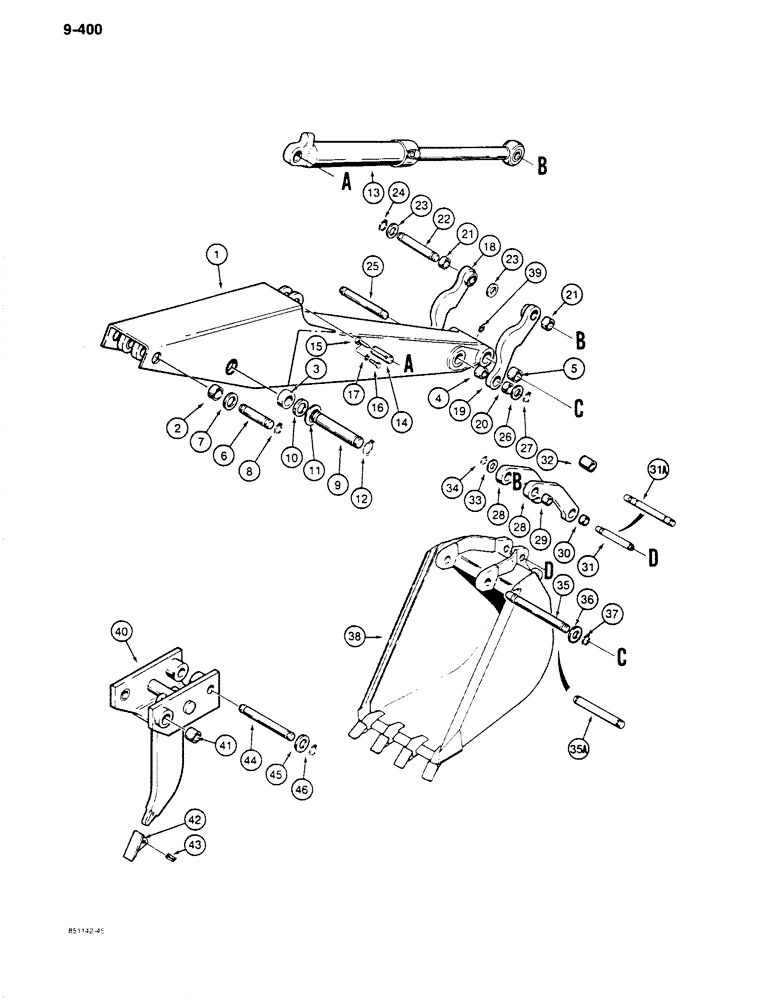

Запчасти Case 680K (9-400) - BACKHOE DIPPER AND BUCKET (09) - CHASSIS/ATTACHMENTS

1

L107300

BOOM

DIPPER ASSEMBLY - backhoe, Includes: Ref. 2 - 5

1шт.

2

D33024

BUSHING,51.02mm ID x 63.5mm OD x 25.4mm L

- dipper cylinder mounting

2шт.

3

L55734

BUSHING

- dipper pivot at boom pin

2шт.

4

D30933

BUSHING,38.41mm ID x 47.63mm OD x 31.75mm L

- dipper at bucket link

2шт.

5

D37443

BUSHING,44.68mm ID x 57.15mm OD x 50.8mm L

- dipper at bucket pin

2шт.

6

L73598

AXLE PIN

PIN - dipper, Serial Range: cylinder-dipper

1шт.

7

95-81155

WASHER,52.38mm ID x 76.2mm OD x 3.35mm Thk

- flat, 2", special, dipper cylinder pin

2шт.

8

103-16200

SNAP RING,#200, Ext

Ring, Snap, , Pin #200, Ext

2шт.

9

L54388

AXLE PIN

PIN -, Serial Range: dipper-boom

1шт.

10

D41472

WASHER

- flat, 2-5/16" ID x 3" OD, special

1шт.

11

L79228

WASHER,64.26mm ID x 152.4mm OD x 2.16mm Thk

- flat, 2-1/2" ID x 6" OD, special, used as a shim

1шт.

12

103-11225

SNAP RING,#225, Ext

Ring, Snap, , Pin #225, Ext

2шт.

13

G103856

CYLINDER BLOCK

CYLINDER ASSEMBLY - bucket, parts list Figure 8-356

1шт.

14

L53181

PIN

- bucket cylinder to dipper (Replaces L35181)

1шт.

15

R17756

ROD,12.7mm OD x 109.54mm L

PIN - lock

1шт.

16

354276X1

SCREW

BOLT - hex head, 1/2" - 13 NC 1-1/4", plated

1шт.

17

192-23

LOCK WASHER,1/2"

WASHER, LOCK, 1/2"

1шт.

18

L107377

DRAG LINK

LINK - bucket guide, left-hand

1шт.

19

L107376

DRAG LINK

LINK - bucket guide, right-hand, Includes: Ref. 20, 21

1шт.

20

D31140

BUSHING,38.33mm ID x 47.63mm OD x 25.4mm L

- L107376 or L107377 link, for 1-1/2" (38 mm) pin

1шт.

21

L58710

BUSHING,44.45mm ID x 53.98mm OD x 44.45mm L

- L107376 or L107377 link, for 1-3/4" (44 mm) pin

1шт.

22

D37611

PIVOT PIN,44.45mm OD x 255.59mm L

PIN - bucket cylinder to bucket link

1шт.

23

95-81150

WASHER,46.02mm ID x 63.5mm OD x 3.35mm Thk

- flat, 1-3/4", special, bucket cylinder pin

1шт.

24

103-16175

SNAP RING,#175, Ext

Ring, Snap, , Pin #175, Ext

2шт.

25

D53812

PIVOT PIN,1.5" OD x 10.14" L

PIN - guide, Serial Range: link-dipper

1шт.

26

L79009

WASHER

- special

1шт.

27

D25279

SNAP RING,M35, Int

RING - snap, pin retaining

2шт.

28

L104435

DRAG LINK

LINK - backhoe bucket, Includes: Ref. 29, 30

2шт.

29

D37392

BUSHING,44.68mm ID x 53.98mm OD x 31.75mm L

- link, for 1-3/4" (44 mm) pin

1шт.

30

D30933

BUSHING,38.41mm ID x 47.63mm OD x 31.75mm L

- link, for 1-3/4" (38 mm) pin

1шт.

31

L78991

PIN

- 9-11/16" long x 1-1/2" OD, link to bucket, used on 12" and 18" trenching and 16", 30", and 36" bellhole buckets

1шт.

31a

L51109

AXLE PIN

PIN - 13-5/16" long x 1-1/2" OD, link to bucket, used on 24", 30", and 36" heavy duty and high capacity trenching buckets

1шт.

32

D37450

SPACER,40.89mm ID x 48.26mm OD x 63.5mm L

SPACER -, Serial Range: link-bucket

1шт.

33

L79009

WASHER

- special

2шт.

34

D25279

SNAP RING,M35, Int

RING - snap, pin retaining

2шт.

35

L79166

AXLE PIN

PIN - 14-7/8" long x 1-3/4" OD, bucket to dipper, for all buckets except 12" buckets

1шт.

35a

D40244

PIN,44.45mm OD x 327.02mm L

- 12-7/8" long x 1-3/4" OD, bucket to dipper, used with 12" buckets

1шт.

36

95-81150

WASHER,46.02mm ID x 63.5mm OD x 3.35mm Thk

- flat, 1-3/4", special

1шт.

37

103-16175

SNAP RING,#175, Ext

Ring, Snap, , Pin #175, Ext

2шт.

38

REF

INSTRUCTION

BUCKET - backhoe, see Figures 9-408 through 9-420 for buckte options

1шт.

39

80710

LUBE NIPPLE,1/8” – 27 Dryseal PTF

NIPPLE, LUBE, 1/8"-27 x .66 lg

1шт.

D16484

POINT ASSEMBLY - frost, backhoe, machinery item, order from the Machinery Price List, Includes: Ref. 40 - 46

1шт.

40

D54136

SUPPORT ASSY.

BODY - frost point, Includes: Ref. 41 - 43

1шт.

41

D37495

BUSHING,44.76mm ID x 57.15mm OD x 31.75mm L

- frost tooth

2шт.

42

D83306

POINT

- tooth

1шт.

43

D43417

PIN

- flex, point

1шт.

44

D54218

PIN,38.1mm OD x 345.95mm L

- bucket link to frost tooth

1шт.

45

495-81292

WASHER,1.56" ID x 3.25" OD x 0.18" Thk

- flat, 1-1/2", special

2шт.

46

D25279

SNAP RING,M35, Int

RING - snap, pin retaining

2шт.
