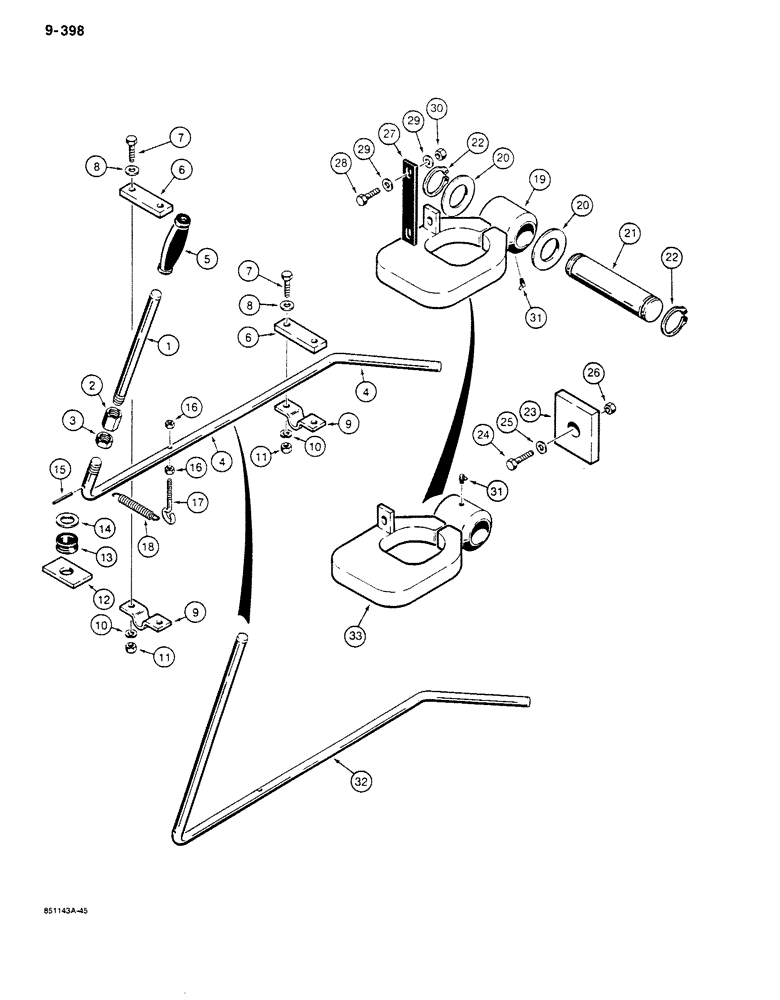

Запчасти Case 680K (9-398) - BOOM LATCH (09) - CHASSIS/ATTACHMENTS

L36219

KIT

- boom latch lever, four-piece lever, may be replaced by one-piece lever on some models, see Ref. 32 and 33, Includes: Ref. 1 - 4

1шт.

1

L107990

LEVER

- upper

1шт.

2

L107992

NUT

- special

1шт.

3

425-1010

NUT,5/8"-11, G5

1шт.

4

L107991

LEVER

- lower

1шт.

5

L52477

GRIP

- lever, boom latch

1шт.

6

L57268

BAR

- lock mounting

2шт.

7

413-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5

- hex head, 3/8" - 16 NC x 1-1/4", plated

4шт.

8

495-21044

WASHER,3/8"

4шт.

9

L103258

RETAINER

- lever

2шт.

10

192-21

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

4шт.

11

425-106

NUT,3/8"-16, Cl 5

4шт.

12

L103350

PLATE ASSY.

PLATE - cover, special

1шт.

13

248-2117

GROMMET,5/8" ID x 7/8" Groove Dia

- handle 7/8

1шт.

14

T22220

WASHER

- special

1шт.

15

17046R1

LOCK PIN,1/8" x 1 1/8", Slotted

Pin, , lever 1/8" x 1 1/8", Slotted

1шт.

16

425-104

NUT,1/4"-20, Cl 5

- hex, 1/4" - 20 NC, plated

2шт.

17

C10792

BOLT (SPREADER)

EYEBOLT - 1/4" - 20 NC

1шт.

18

L50735

VALVE SPRING

SPRING - eyebolt

1шт.

19

L103307

LATCH ASSY.

LATCH - boom lower grease port, used with four-piece lever, Ref. 1 - 4

1шт.

20

A11990

WASHER

- special

2шт.

21

D42611

PIN

- boom, Serial Range: latch-boom

1шт.

22

D25279

SNAP RING,M35, Int

RING - snap, pin retaining

2шт.

23

L79185

BLOCK

- stop

1шт.

24

88044

BOLT,Hex, 3/8" - 16 x 1-1/2", Gr 5

- hex head, 3/8" - 16 NC x 1-1/2", plated

1шт.

25

495-11041

WASHER,0.406" ID x 0.812" OD x 0.065" W

- flat, 3/8", plated

1шт.

26

131-203

LOCK NUT,3/8"-16, GB, LH

NUT - hex, self-locking, 3/8" - 16 NC, special

1шт.

27

L73300

STRAP

- boom lock

1шт.

28

413-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5

- hex head, 3/8" - 16 NC x 1-1/4", plated

2шт.

29

495-21044

WASHER,3/8"

4шт.

30

232-1446

NUT,3/8"-16, GC

NUT, LOCK, 3/8"-16, GC

2шт.

31

219-55

LUBE NIPPLE,90 Degree Elbow, 1/8" - 27 NPTF

NIPPLE, LUBE, , Special short 90º, 1/8" NPT x .84" lg

1шт.

32

D139194

ROD

LEVER - boom latch, one-piece lever, replaces four-piece lever used on some models

1шт.

33

D140191

RING

LATCH - boom, upper grease port

1шт.
