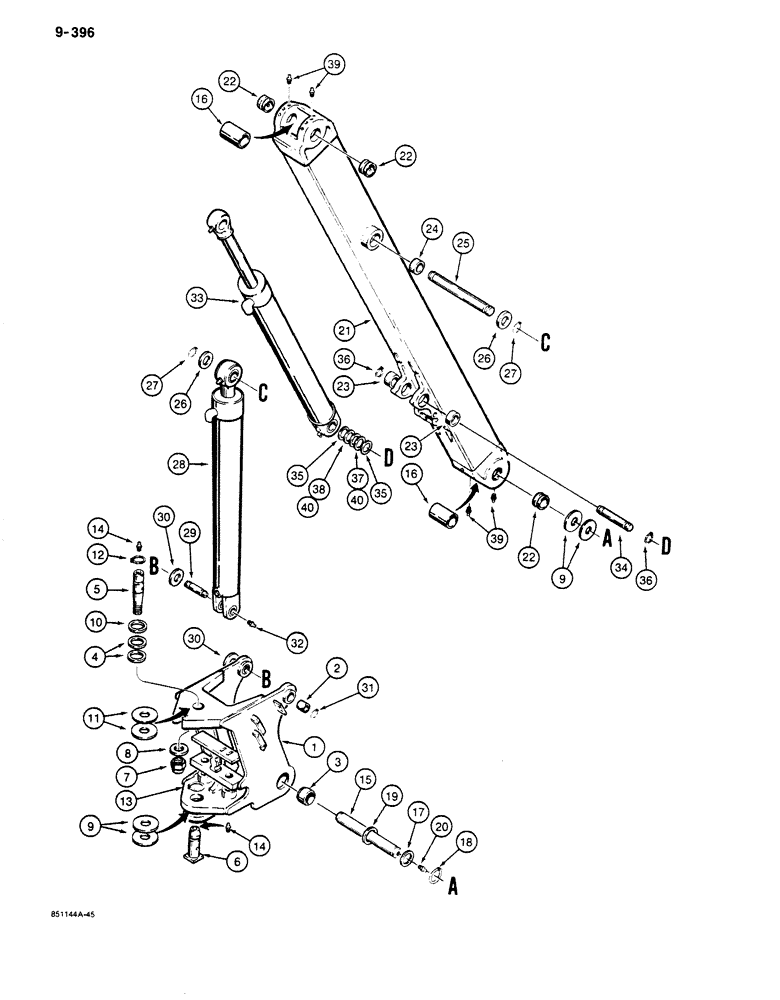

Запчасти Case 680K (9-396) - BACKHOE SWING TOWER AND BOOM (09) - CHASSIS/ATTACHMENTS

1

L108081

SUPPORT ASSY.

TOWER ASSEMBLY - swing, backhoe, Includes: Ref. 2, 3

1шт.

2

D30929

BUSHING,38.33mm ID x 47.63mm OD x 38.1mm L

- at boom cylinders

2шт.

3

L78951

BUSHING

- at boom

2шт.

4

95-81156

WASHER,2.56" ID x 4" OD x 0.11" Thk

- flat, 2-1/2", special, used as a spacer

1шт.

5

L105696

AXLE PIN,63.5mm OD x 246.38mm L

PIN - tower mounting, upper

1шт.

Snap ring groove has been removed

1шт.

6

L59120

AXLE PIN

PIN - tower mounting, lower

1шт.

7

425-1528

JAM NUT,Jam, 1 3/4"-12, G5, Hvy

1шт.

8

L59117

WASHER

- hardened, special, upper pin

1шт.

9

L47461

WASHER

SHIM - pin mounting, lower pin

1шт.

10

L47700

WASHER

- special, upper pin

1шт.

11

L79228

WASHER,64.26mm ID x 152.4mm OD x 2.16mm Thk

- 2-1/2" ID x 6" OD, special, used as a shim, upper pin

1шт.

12

L16015

RING

- snap, upper pin retaining

1шт.

13

100-11212

SNAP RING,#212, Ext

Ring, Snap, , lower pin #212, Ext

1шт.

14

80710

LUBE NIPPLE,1/8” – 27 Dryseal PTF

NIPPLE, LUBE, 1/8"-27 x .66 lg

2шт.

15

L79012

AXLE PIN

PIN -, Serial Range: boom-tower

1шт.

16

L58656

SPACER

- boom at swing tower and dipper casting

2шт.

17

D41472

WASHER

- 2-5/16" ID x 3" OD, special

1шт.

18

103-11225

SNAP RING,#225, Ext

Ring, Snap, , Pin #225, Ext

2шт.

19

L79228

WASHER,64.26mm ID x 152.4mm OD x 2.16mm Thk

- 2-1/2" ID x 6" OD, special, used as a shim

1шт.

20

80710

LUBE NIPPLE,1/8” – 27 Dryseal PTF

NIPPLE, LUBE, 1/8"-27 x .66 lg

2шт.

21

L101425

BOOM

ASSEMBLY - backhoe, not used with extendable dipper, see Figure 9-404, Includes: Ref. 22 - 24

1шт.

22

L70791

BUSHING,57.38mm ID x 82.55mm OD x 38.1mm L

- boom ends

4шт.

23

D30756

BUSHING,51.02mm ID x 63.5mm OD x 31.8mm L

- at dipper cylinder mounting, 2-1/2" (64 mm) OD

2шт.

24

L77788

BUSHING

- at boom cylinder mounting, 3" (76 mm) OD

2шт.

25

L54419

AXLE PIN

PIN - boom, Serial Range: cylinder-boom

1шт.

26

95-81155

WASHER,52.38mm ID x 76.2mm OD x 3.35mm Thk

- flat, 2", special

2шт.

27

103-16200

SNAP RING,#200, Ext

Ring, Snap, , Pin #200, Ext

2шт.

28

G101256

CYLINDER ASSY.

CYLINDER ASSEMBLY - boom, parts list Figure 8-352

2шт.

29

L79244

AXLE PIN,38.1mm OD x 120.65mm L

PIN - boom, Serial Range: cylinder-tower

2шт.

30

L79009

WASHER

- special

1шт.

31

D25279

SNAP RING,M35, Int

RING - snap, pin retaining

4шт.

32

80710

LUBE NIPPLE,1/8” – 27 Dryseal PTF

NIPPLE, LUBE, , L79244 pin 1/8"-27 x .66 lg

2шт.

33

1345994C1

CYLINDER ASSY.

CYLINDER ASSEMBLY - dipper, parts list Figure 8-354

1шт.

34

L54437

AXLE PIN

PIN - dipper, Serial Range: cylinder-boom

1шт.

35

L11917

WASHER

SPACER - dipper cylinder to boom, 1/16" (1.78 mm) thick

1шт.

36

103-16200

SNAP RING,#200, Ext

Ring, Snap, , Dipper cylinder pin #200, Ext

2шт.

37

L47422

WASHER,51.3mm ID x 114mm OD x 6.35mm Thk

SPACER - dipper, cylinder to boom, 1/4" (6.35 mm) thick, if used, may be replaced by 195-2155 flat washer, Ref. 40

1шт.

38

L47424

WASHER,51.3mm ID x 114mm OD x 4.76mm Thk

SPACER - dipper, cylinder to boom, 3/16" (4.76 mm) thick, if used, may be replaced by 195-2155 flat washer, Ref. 40

1шт.

39

80710

LUBE NIPPLE,1/8” – 27 Dryseal PTF

NIPPLE, LUBE, 1/8"-27 x .66 lg

4шт.

40

95-81155

WASHER,52.38mm ID x 76.2mm OD x 3.35mm Thk

- flat, 2-1/16" ID x 3" OD x 1/8" thick, if used

1шт.
