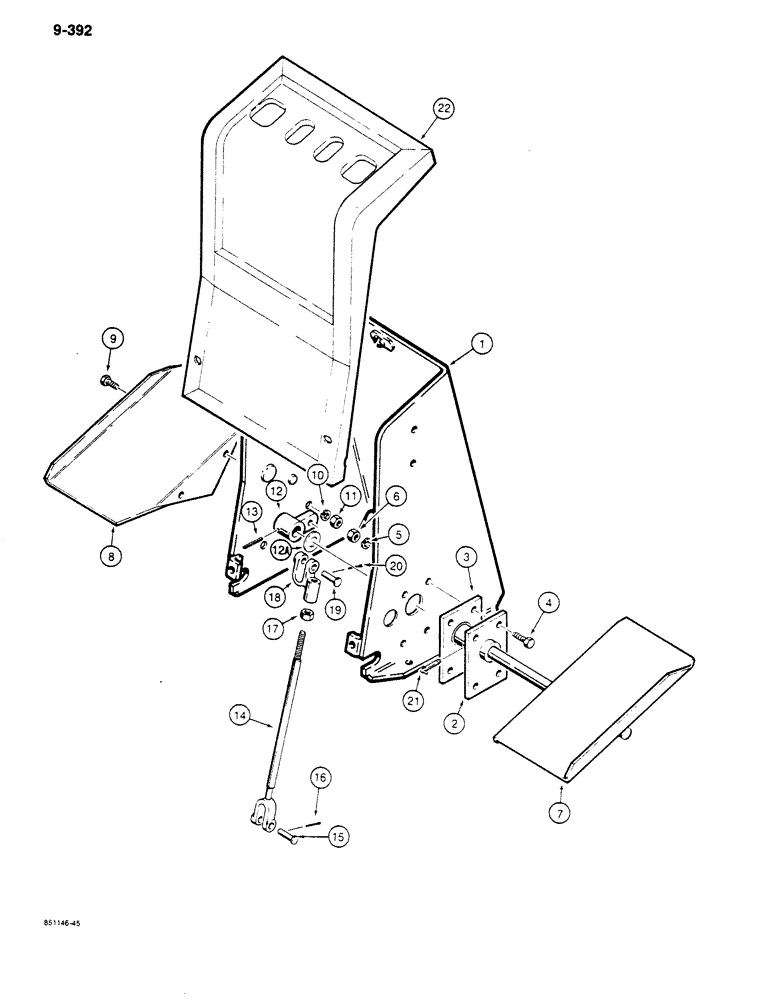

Запчасти Case 680K (9-392) - BACKHOE EXTENDABLE DIPPER CONTROL, HAND SWING MODELS (09) - CHASSIS/ATTACHMENTS

1

REF

INSTRUCTION

TOWER - backhoe control, see Figure 9-380

1шт.

2

D87854

BRACKET

SUPPORT - pedal

1шт.

3

L105510

PLATE ASSY.

PLATE - spacer

1шт.

4

413-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5

- hex head, 3/8" - 16 NC x 1", plated

4шт.

5

192-21

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

4шт.

6

425-106

NUT,3/8"-16, Cl 5

4шт.

7

D87866

PEDAL

- extendable dipper control

1шт.

8

D87863

PLATFORM

- left-hand

1шт.

9

413-612

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5

2шт.

10

192-21

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

2шт.

11

425-106

NUT,3/8"-16, Cl 5

2шт.

12

D87860

LEVER

- pivot

1шт.

12a

87381

WASHER,0.81" ID x 1.47" OD x 0.13" Thk

Used as a spacer 3/4", SAE

1шт.

13

438-11620

LOCK PIN,1/4" x 1 1/4", Slotted

Pin, 1/4" x 1 1/4", Slotted

1шт.

14

L108537

ROD

- extendable dipper control

1шт.

15

427-5094

CLEVIS PIN,7.92mm OD x 23.88mm L

plated 5/16" x .940", HDN

1шт.

16

432-610

COTTER PIN,3/32" x 5/8"

PIN, SPLIT (COTTER), 3/32" x 5/8"

1шт.

17

425-156

JAM NUT,Jam, 3/8"-24, G5

- hex, jam, 3/8" - 24 NF, plated

1шт.

18

L11182

YOKE,3/8" - 24

CLEVIS- 3/8", offset, rod end

1шт.

19

427-6106

CLEVIS PIN,9.53mm OD x 26.92mm L

PIN, CLEVIS, 3/8" x 1 1/16"

1шт.

20

432-612

COTTER PIN,3/32" x 3/4"

PIN , SPLIT (COTTER), 3/32" x 3/4"

1шт.

21

77388

LUBE NIPPLE,90 Degree, 1/8" NPT x 1.81" lg

FITTING - grease, 90 degree, 1/8" NPT

1шт.

22

REF

INSTRUCTION

COVER - control tower, see Figure 9-380

1шт.
